|Type:||RX3 -45 Box Furnace||Power:||45kw|
|Voltage:||Three-phase 380V||Highest Working Temperature:||950℃|
|Frequency:||50HZ||No-load Heating Up Time:||≤2.5h|
|Max Loading Capacity:||400kg||Weight:||2.5t|
electric muffle furnace,
box resistance furnace
1. Box Type Furnace Application field:
Mainly used for high chromium, high manganese steel castings, ductile iron, roll, steel ball, crusher hammers, wearing plate, flange and various mechanical parts. Can also suitable formetallic material heat treatment in various colleges, universities and research institutes.

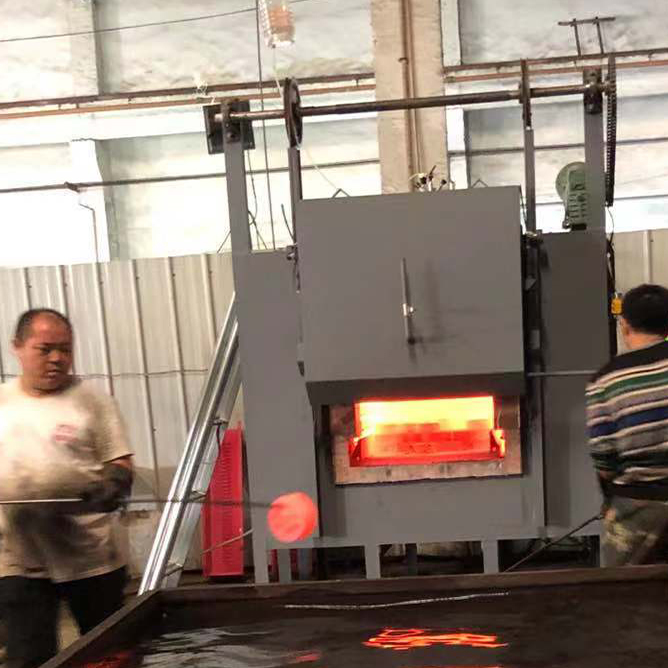

This box type preheating furnace is cycle furnace for heat treatment processing of metal or steel parts. It could be used with control cabinet, the temperature of electric furnace could be controlled manually or automatically.
This box preheating furnace is mainly constitutive of furnace body, lining, floor, heating component, cover, opening & closing device, control system, etc.
2. Brief Introduction of Box Type Resistance Furnace:
RX3 series small box type electric furnace is standard energy-saving batch type furnace,using the following heat treatment processes: quenching, tempering, annealing and normalizing heat treatment,etc.
The box type tempering resistence furnace mainly consists of fixed heating chamber and the electrical control system. The furnace body is made up of furnace shell, furnace linings, heating element, furnace door, hoisting appliance and electrical control system.
3. Main technical parameters of RX3 series:
|Model||RX3 -15||RX3 -30||RX3 -45||RX3 -60||RX3 -75|
|Highest working temperature||950℃|
|No-load heating up time||≤2.5h||≤3.0h||≤3.5h|
|Max loading capacity||80kg||200kg||400kg||700kg||1200kg|
4. Package and Shipping:
As for packaging: The resistence furnace is wrapped with plastic film for waterproof, and then put on the pallet.
As for shipping:
1. If you have shippers in China, we can send the machines to them for free.
2. If you want us to send the machines to you directly, we can send them to any main port of China promptly.
5. Company Brief Introduction:
Zhengzhou Lanshuo Electronics Co., Ltd has 15-year experience in the R&D, design, production and sale of high frequency and medium frequency induction heating machines. Products have won great reputation among clients.
Leading products include IGBT medium frequency induction heating equipment, IGBT super audio induction heating equipment, CNC quenching machine tool, IGBT medium frequency induction melting furnace, KGPS medium frequency induction melting furnace, open type water cooling tower, closed loop water cooling tower, water chiller, etc.
6. Customer Center:
7. Our Service
1. Pre-sale Service
If you don't know what type of machine you should choose, Please contact us through email, phone.
We will recommend the suitable machine according to your requirements.
2. Sale Service
After choosing the suitable machine, we will discuss the details, such as payment method(TT, L/C), delivery date, transportation, etc. During the production, you are welcome to visit our factory.
3.After Sales Service
Free training installation
If necessary, we can also arrange for technicians to go abroad for installation
7*24 hour service
