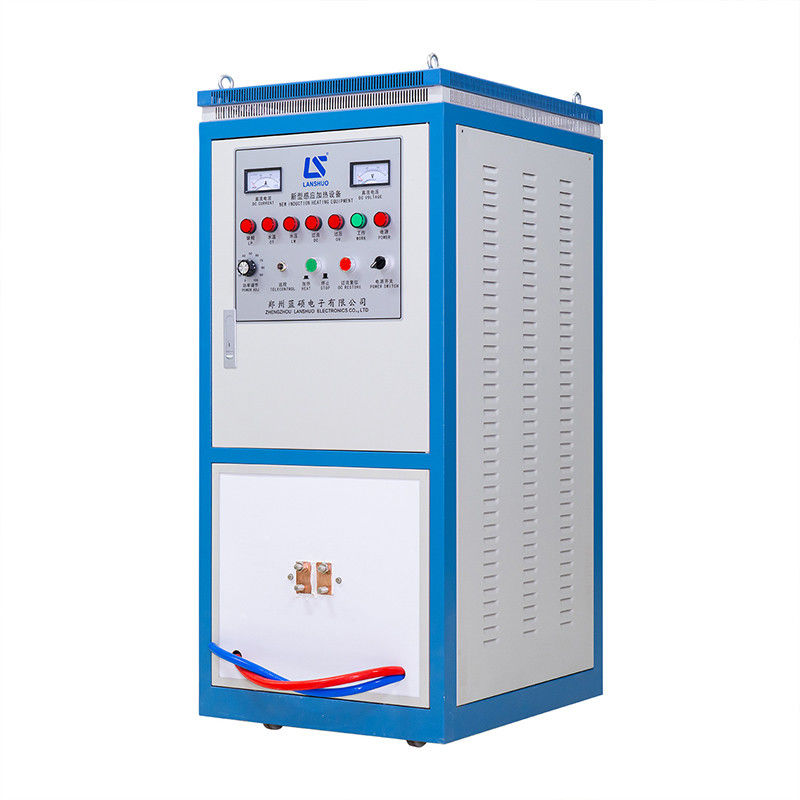

50kw IGBT Electric Induction Brazing Machine For Brazing / Welding / Heating

China Zhengzhou Lanshuo Electronics Co., Ltd certification
China Zhengzhou Lanshuo Electronics Co., Ltd certification
машина индукционного нагрева хороша, я доволен этим.

—— Жүгнээ Цогбадрах

Je suis satisfait du four de fusion par induction, j'espère coopérer à l'avenir.

—— amine ouarroch

I'm Online Chat Now

50kw IGBT Electric Induction Brazing Machine For Brazing / Welding / Heating

50kw IGBT Electric Induction Brazing Machine For Brazing / Welding / Heating
50kw IGBT Electric Induction Brazing Machine For Brazing / Welding / Heating 50kw IGBT Electric Induction Brazing Machine For Brazing / Welding / Heating 50kw IGBT Electric Induction Brazing Machine For Brazing / Welding / Heating 50kw IGBT Electric Induction Brazing Machine For Brazing / Welding / Heating

Large Image :  50kw IGBT Electric Induction Brazing Machine For Brazing / Welding / Heating

Product Details:
Place of Origin: China
Brand Name: Lanshuo
Certification: CE
Model Number: LSW-50
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 1000-1600 / set
Packaging Details: 1.Standard wooden case, plywood case, and custormized case; 2. Inner packing: packing plastic film and foam in case of friction dampness and shake; 3.Accessories: induction coil 1, foot pedal 1, installing and operating instruction 1 and custormized del
Delivery Time: 5-7 working days after receiving advanced payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 2000 set per year
Detailed Product Description
Type: Induction Brazing Machine Voltage: 380V
Current: 75A Rated Capacity: 50kw
Rated Duty Cycle: 100% Dimension: 550*650*1260mm
Weight: 120kg Usage: Brazing, Welding,heating
Power: 50kw Color: Optional
High Light:

induction brazing equipment

,

electric brazing machine

LSW-50 50kw IGBT Electric Induction Heating Brazing Equipment



1. Induction Brazing Machine Brief Introduction :

Our high frequency induction welding machine adopts IGBT series and parallel induction heating technology as the core. This is a form of brazing that uses electromagnetic induction to heat the work piece, which makes the brazing filler metals' surface temperature rise rapidly till melting, connecting finally.

50kw IGBT Electric Induction Brazing Machine For Brazing / Welding / Heating 0

50kw IGBT Electric Induction Brazing Machine For Brazing / Welding / Heating 1

2. Technical Parameters of LSW-50 Induction Brazing Equipment:

Model LSW-50
Working Voltage 380V, 50/60HZ
Max input power 50kw
Oscillation frequency 18-35KHZ
Duty cycle 100%
Cooling water flow 32L/Min,0.1MPa
Weight 120kg
Dimension (L*W*H ) 550*650*1260mm
Material stainless steel
Color support customized
Usage metal heating, brazing,melting etc



3. Main characteristics of LSW-50 Induction Brazing Equipment:

(1) High efficiency: Metal can be heated to its desired temperature, even its melting point, instantly.
(2) Energy saving: The induction brazing machine adopts IGBT from Siemens & LC series circuit design, saving energy up to 15%-30%.
(3) Low cost: The heating time is short, compared to other heating methods, significantly reducing the amount of metal loss.
(4) Easy for installation: Following the user manual, even non-professional persons can install the induction brazing machine easily.
(5) Stable operation: complete protection, make customers have nothing to worry about.
(6) No harm to the environment: The induction brazing machine uses electricity, producing little waste gas and water.



4. Induction Brazing Equipment Application:

50kw IGBT Electric Induction Brazing Machine For Brazing / Welding / Heating 2

(1) metal tube welding, such as copper tube, steel tube, and aluminum tube.
(2) alloy cutter welding, such as lathe tool, milling tool, planer, saw blades, reamer, boring knife.
(3) mining tools welding, such as drill bits, cutting picks.
(4) carbide saw blade welding: cutter blade, serrated blade, diamond saw blade, marble saw blade, woodworking saw blade.
(5) metal welding: auto-accessories, motor accessories, metal terminals, hardware pieces, electric heating tube parts and fasteners.

5. Packaging Of Induction Brazing Machine:

50kw IGBT Electric Induction Brazing Machine For Brazing / Welding / Heating 3

As for packaging of induction heating machine: The machine is always packed with wrapping film for waterproof, and then put into a standard exporting plywood case with foam around for shockproof.
As for shipping of induction heating machine:
1. If you have a shipper in China, we can send the machines to him or her for free.
2. If you want us to send the machines to you directly, we can send them to any main port of China promptly.

6.Company Brief Introduction:

Zhengzhou Lanshuo Electronics Co.,Ltd. is located in Zhengzhou National High-tech Industrial Development Zone.We are specialized in R&D,design,production,complete sets of high frequency medium frequency induction heating machine,with importing & exporting managerial authority and a import & export of industrial furnace franchising enterprises.

Our leading products include series and parallel technology IGBT medium frequency heating equipment,IGBT super audio heating equipment,CNC quenching machine tool,closed cooling tower,complete quenching one device,forge heating smelting equipment.
