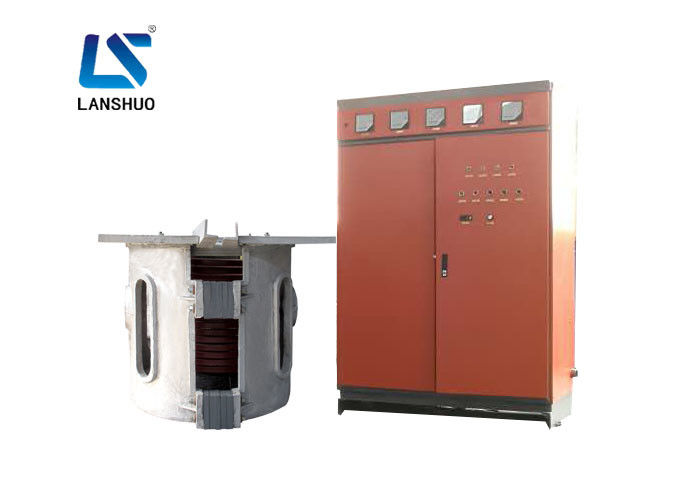

Aluminum Shell 400KW 2000HZ Induction Melting Furnace

Aluminum Shell 400KW 2000HZ Induction Melting Furnace
Aluminum Shell 400KW 2000HZ Induction Melting Furnace Aluminum Shell 400KW 2000HZ Induction Melting Furnace Aluminum Shell 400KW 2000HZ Induction Melting Furnace

Large Image :  Aluminum Shell 400KW 2000HZ Induction Melting Furnace

Product Details:
Place of Origin: China
Brand Name: Lanshuo
Certification: CE
Model Number: KGPS-0.5T/400KW
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: KGPS induction melting furnace is packed in wooden boxes
Delivery Time: 7-10 working days after receiving advanced payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Detailed Product Description
Type: Induction Melting Furnace Voltage: 380v, 50/60HZ
MF Frequency: 2000HZ Medium Voltage: 750v Phase
DC Voltage: 500V Phase DC Current: 800A Phase
Rated Temperature: 1600°c Color: Customizable
Melting Material: Gold, Silver, Copper, Iron And Aluminum Etc Rated Power: 400KW
Rated Capacity: 0.5T
High Light:

2000HZ Induction Melting Furnace

,

400KW Induction Melting Furnace

,

Aluminum Induction Melting Furnace

Aluminum Shell 400KW 2000HZ scrap Iron steel induction melting furnace machine

1. Brief Introduction of Medium Frequency Induction Melting Furnace:

Induction Melting Furnace Applications used for steel, iron ,copper ,aluminum melting before casting.This electric furnace is applicable for melting, heating and holding of steel, copper, inron, aluminum, zinc, tin, nickel and toher ferrous of nonferrous metal.This electric melting furnace can also be used for forging, sintering and tube-bending forming in casting and melting industrials.
2. Technical Parameter of Large Induction Melting Furnace:

Model KGPS-0.5T/400KW
Rated Power 400kw
Rated Capacity 0.5T
Matching transformer's capacity 500KVA
Voltage 380V, 50/60HZ
MF Frequency 2000HZ
Medium Voltage 750V Phase
DC Voltage 500V Phase
DC Current 800A Phase
Rated Temperature 1600°C
Closed Loop Water Cooling Tower LSN-30B

3. Large Induction Melting Furnace Application:

aluminum shell medium frequency melting furnace required little area, which is easy to operate, easy to use, and inexpensive, suitable for melting all kinds of pig iron, cast iron, scrap, iron slag, etc.

Aluminum Shell 400KW 2000HZ Induction Melting Furnace 0
KGPS 0.1 Ton / 100KW Medium Frequency Large Induction Melting Furnace

4. Part of the aluiminum shell induction melting furnace:
1). Furnace Parts: The mechanical parts of the MF furnace consisted of furnace pot,water power introduced into the system, titling device and other parts.
2). Furnace Ports: Furnace port including furnace shell, induction coil etc.
3). Furnace Shell:

Main Power Cabinet Furnace Shell Reducer Water Cooled Cable Crucible Mould Induction Coil
KGPS 0.1 Ton / 100KW Medium Frequency Large Induction Melting Furnace KGPS 0.1 Ton / 100KW Medium Frequency Large Induction Melting Furnace KGPS 0.1 Ton / 100KW Medium Frequency Large Induction Melting Furnace KGPS 0.1 Ton / 100KW Medium Frequency Large Induction Melting Furnace KGPS 0.1 Ton / 100KW Medium Frequency Large Induction Melting Furnace KGPS 0.1 Ton / 100KW Medium Frequency Large Induction Melting Furnace

5. Large Induction Melting Furnace Advantage:

Induction Melting Furnace Features fast speed of melting, energy saving, less burnt loss, pure molten liquid.
Customerized design acceptable,No pollution,High heating speed,Low power consumption,High temperature accuracy ,Melting furnace's aluminum frame is adopted to small capacity melting furnace with reasonable structure and small capacity, convenient installation and simple maintenance, low maintenance cost.



Induction Melting Furnace steel structure ( frame structure and cylinder structure ) is adopted to large capacity electric melting furnace which is equipped with magnetic yoke. The yoke will shield and reduce magnet leakage and prevent furnace body from over-heating, thus will improve efficiency and sustain the induction coil at the same time. Thus will enhance the strength and reduce noise.
