220V IGBT Diamond Segment Induction Brazing Machine

220V IGBT Diamond Segment Induction Brazing Machine
220V IGBT Diamond Segment Induction Brazing Machine 220V IGBT Diamond Segment Induction Brazing Machine 220V IGBT Diamond Segment Induction Brazing Machine

Large Image :  220V IGBT Diamond Segment Induction Brazing Machine

Product Details:
Place of Origin: China
Brand Name: Lanshuo
Certification: CE
Model Number: LSW-16
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: 1.Standard wooden case, plywood case, and custormized case; 2. Inner packing: packing plastic film and foam in case of friction dampness and shake; 3.Accessories: induction coil 1, foot pedal 1, installing and operating instruction 1 and custormized del
Delivery Time: 5-7 working days after receiving advanced payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 2000 set per year
Detailed Product Description
Type: Induction Brazing Machine Voltage: 220V
Current: 35A Rated Capacity: 16kw
Rated Duty Cycle: 90% Dimension: 430*200*400mm
Weight: 25kg Usage: Brazing, Welding
Power: 16kw Color: Optional
High Light:

Diamond Segment Induction Brazing Machine

,

220V Induction Brazing Machine

,

Induction Brazing Welding Machine

LSW-16 16kw Portable automatic Induction Brazing Welding Machine Sale



1. Induction Brazing Machine Brief Introduction :

high frequency induction heating equipment is particularly suitable for heat treatment and quenching, melting, annealing, the metal through the heat forging, extrusion, welding, brazing.

1. The welding speed is high. Because the current energy is highly concentrated in the welding area, the heating speed is extremely fast, and there is no "jump welding" phenomenon during high-speed welding, so the welding speed can be as high as 150m/min or even 200m/min. 2. The heat-affected zone is small. Due to the high welding speed and strong self-cooling of the workpiece, not only the heat-affected zone is small, but also it is not easy to oxidize, so that a weld with good structure and performance can be obtained.

2. Technical Parameters of LSW-16 Induction Heating Machine:

Model LSW-16
Working Voltage 220V, 50/60HZ
Max input power 16kw
Oscillation frequency 28-40KHZ
Duty cycle 100%
Cooling water flow 20L/Min,0.15-0.2MPa
Weight 25kg
Dimension (L*W*H ) 420*200*360mm
Material stainless steel
Color support customized
Usage metal heating, brazing,melting etc



3. Precautions of LSW-16 Induction Brazing Machine :

It is not necessary to remove the oxide film and dirt on the surface of the workpiece to be welded before welding. For the oxide film and dirt on the surface of the hot-rolled base metal, high-frequency current can be conducted, so it can be welded without the cleaning process before welding.

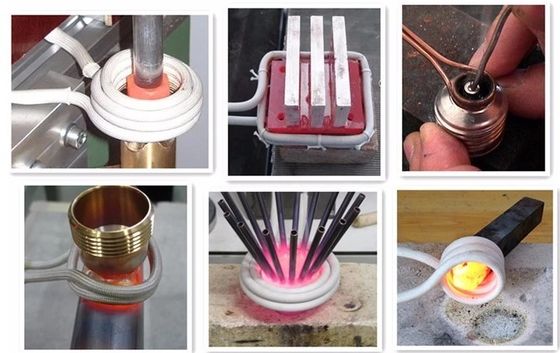

4. Induction Brazing Machine Application:

There are a wide variety of metals that can be welded, and the shapes and specifications of the products are not only able to weld carbon steel, alloy steel, but also stainless steel, aluminum and aluminum alloy, copper and copper alloys, as well as nickel, titanium, zirconium, etc. that are usually difficult to weld. metal. When high-frequency welding is used, the size of the profile and pipe is much more than that of ordinary rolling or extrusion, and structural parts of dissimilar materials can be manufactured.

220V IGBT Diamond Segment Induction Brazing Machine 0

Heat treatment industry.
1. a variety of steam, Motorcycle high-frequency hardening heat treatment, such as: crankshaft, connecting rod, piston pin, camshaft, valves, various gears within the gearbox, a variety of fork, all kinds of spline shaft, drive axle, various small shaft crank pin, a variety of rocker, rocker shaft, high-frequency hardening heat treatment.
2. the hardware high-frequency hardening heat treatment, such as pliers, hammers, strong pliers, wrenches.
3. hydraulic components such as: piston pump plunger, rotor pump rotor, conversion shaft of the valves, gear of gear pump high frequency quenching.
4. various electric tools gear shaft of the high-frequency hardening heat treatment.
5, a variety of carpentry tools, such as: axes, planing and other heat treatment.

Forging industry
1. plate heating, bending and forming.
2. standard parts, fasteners through the hot forming.
3. the hardware tools through heat, such as pliers, wrenches and other heat through hot forming.
4. taper shank drill rod extrusion prospecting.
5. the pipe through the hot forming, such as bends and so on.

220V IGBT Diamond Segment Induction Brazing Machine 1
Brazing
1. carbide cutting tools welding. Such as turning, milling, cutter knife.
2. the diamond saw blade welding. Such as diamond saw blade, abrasive, jagged welding. Exploration drill bit used in welding, such as word drill, drill welding horns.
3. brass, copper

220V IGBT Diamond Segment Induction Brazing Machine 2
Smelting
Steel,iron, non-ferrous metals,graphite crucible smelting

220V IGBT Diamond Segment Induction Brazing Machine 3
