Place of Origin | China |
Brand Name | Lanshuo |
Certification | CE, ISO |
Model Number | LSZ 110KW |

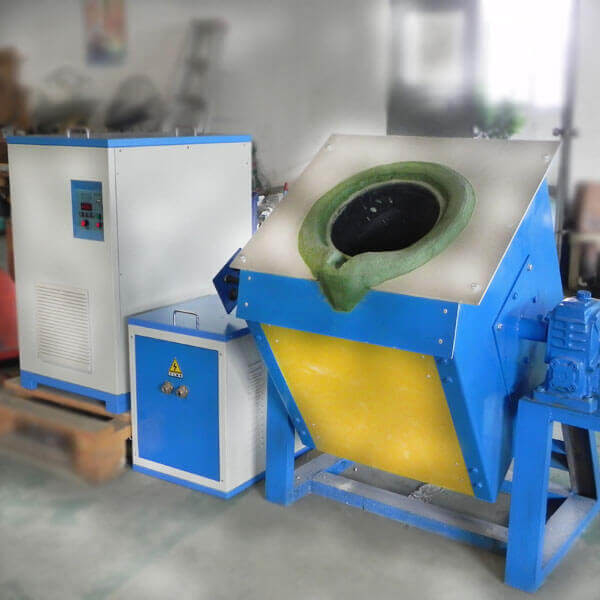

Using Simens IGBT power devices, our LSZ small MF melting furnace is much more integrated and miniaturized. The effective output power can reach 95%, even more.
Generally, our engineers will recommend the type of oven we need based on your work needs. The melting time will be 20 to 30 minutes, when the oven is hot with its highest melting capacity.
LSZ series induction melting furnace can melt the following material:
(1) iron, pig iron, cast iron;
(2) steel, stainless steel, cast steel, carbon steel, and bearing steel;
(3) precious metals such as gold, silver;
(4) copper, brass, bronze;
(5) aluminum, aluminum alloy;
(6) zinc, lead, tin, magnesium, nickel, titanium.
1) Energy saving: Compared with traditional ways of melting (gas and oil) and normal MF furnace and electric arc furnace, the IGBT technology of the Lanshuo will reduce its energy consumption by 20%~30% working at optimal capacity.
2) Easy to change the oven body according to different weights, different materials and different extraction methods. To meet various melting requirements, we have vertical melting furnaces, manual melting furnaces, electric melting furnaces, melting furnaces for laboratory use.
3) With a very convenient and quick to change crucible type. This will also save energy and increase your casting process.
4) Both heating and diathermy properties are good. The temperature is perfectly homogeneous.
5) The molten metal stirring function contributes to the uniform composition of the molten metal. It can be operated constantly for 24 hours.
6) Easy and safe to use: Indicator lights controller, much safer and easier for workers to operate.
7) Stable in use: Our products have been tested at all levels, which reduces the failure rate greatly.
8) Environmentally friendly: electric power, no air pollution, no dust and low noise.
With all the features and benefits mentioned, you will be able to save more money and greatly increase work efficiency. It will also achieve more stability in operation and guarantee operator safety.
Model | Power | Input Current | Voltage | Oscillation Frequency | Connecting Wire | Control Switch | Ground Wire | Cooling Water Pressure | Cooling Water Flow |
LSZ-45 | 45KW | 80A | 35mm² | 3×120A | ≥15L/Min | ||||
LSZ-70 | 70KW | 110A | 50mm² | 3×150A | |||||
LSZ-90 | 90KW | 140A | 75mm² | 3×225A | ≥20L/Min | ||||
LSZ-110 | 110KW | 160A | 90mm² | 3×225A | |||||
LSZ-160 | 160KW | 240A | 120mm² | 3×300A |
