|Type:||LST-320 Trolley Type Resistance Furnace||Power:||320kw|
|Rated Temperature:||950℃||Max Loading One Batch:||6t|
|Weight:||14t||Usage:||Heat Treatment Furnace|
|Voltage:||380V, 3 Phases||Heating Source:||Electricity|
Bogie Trolley Type Furnace,
320kw Trolley Type Furnace,
320kw bogie hearth furnace

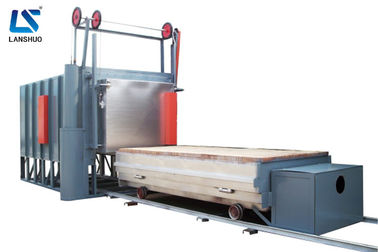

Steel Products Annealing Normalizing Tempering furnace Industrial Heating Equipments trolley type Bogie Furnace
1. Trolley heat treatment furnace Mainly Application:
The equipment is widely used in universities, research institutes, industrial and mining enterprises such as powder, military, electronics, metallurgy, medicine, ceramics, glass, machinery, new material development, special materials, refractories, building materials, chemicals, metal sintering and metal heat treatment Other experiments and production
2. Trolley Type Furnace Characteristics:
1. The furnace material is mullite brick, strong and durable and does not drop powder in high temperature, heat capacity is small, energy saving above 50%
2. The heating element is made of High quality Alloy Resistance Wire, which can bear large load, stable and long service life
3. The heating rate is fast, from room temperature to 1000 degrees, generally takes 15-30 minutes
4. High precision of temperature control, small temperature compensation and temperature accuracy ± 1 ° C
5. Using intelligent PID temperature control instrument, with program function, can set the temperature rise curve, can be programmed 30 segments
6. Electronic components are used Delixi products, with leakage protection, safe and reliable
7. The machine will send out an alarm signal to the over-temperature during the working process, and automatically complete the protection action.
8. When the instrument program is set, just press the run button and the next work will be completed automatically
9. Optional air inlet can be used to purge and protect the inert gas such as air. It can also be installed with an exhaust chimney and connected with stainless steel bellows to discharge the toxic and harmful gases volatilized in the furnace to the designated location.
3. Brief Introduction of Trolley Type Resistance Furnace:
Heat treatment equipment provides annealing, tempering, quenching, carburizing, nitriding, heating to the workpieces.
Heat treatment furnace is common name of various kinds of industrial furnace which provide metal heating treatment to all kinds of metal workpieces. It has lower temperature compared with heating furnace. Heat treatment furnace can be adopted with all models of heating furnaces but asks more stringent temperature control and furnace atmosphere.
Heat treatment furnace is divided into annealing furnace, quenching furnace, tempering furnace, normalizing furnace, quenching and tempering furnace, carburizing furnace, nitriding furnace, melting furnace. Mainly used for high chromium, high manganese steel castings, ductile iron, roll, steel, stainless steel quenching, annealing, aging and a variety of mechanical parts heat treatment. Welding parts to eliminate stress annealing, aging and other heat treatment process. Heating methods are electric heating, fuel, gas, coal, hot air circulation and etc.
This furnace type is used where high temperatures and large specific loading weights are required, and can be primarily found in the area of heating steel slabs and blocks (temperatures between 1200° C and 1380° C) as well as in the ceramics and heat-resistant industry (temperatures between 1000° C and 1850° C). The return of the bogie hearth is done either on the side ode below the furnace.
4. Trolley heat treatment furnace Structure:
The trolley furnace consist of furnace shell, furnace linings ,furnace door, door hoisting
appliance, heating element, bogie and driving mechanism, sealing mechanism, intelligent electrical control system, etc.
Car Bottom Furnace is welded by steel and profiled steel. Furnace chamber is ceramic fiber and high quality electric resistance wire, which can save 40% energy than brick furnace chamber. Car Bottom Furnace is mainly used for annealing, normalizing and stress relieving of bars and tubes, forgings, large weldments and castings.
*The furnace chamber size can be customized;
*Good working performance, nice outlook, less consumption and convenient to move;
*Programmable automatic temperature control system;
*Communication software with USB cable to computer (optional);
*Temperature control can reach to ±1°C;
5.Package of Pit Type Resistance Furnace:
As for packaging: The resistence furnace is wrapped with plastic film for waterproof, and then put on the pallet.
As for shipping:
1. If you have shippers in China, we can send the machines to them for free.
2. If you want us to send the machines to you directly, we can send them to any main port of China promptly.
