Steel Round Bar Induction Heat Treatment Machine 200kw Max Input Power

Steel Round Bar Induction Heat Treatment Machine 200kw Max Input Power
Steel Round Bar Induction Heat Treatment Machine 200kw Max Input Power
video play

Large Image :  Steel Round Bar Induction Heat Treatment Machine 200kw Max Input Power

Product Details:
Place of Origin: China
Brand Name: Lanshuo
Certification: CE
Model Number: LSW-200
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: wooden boxes
Delivery Time: 5-7 working days after receiving advanced payments
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 2000 sets per year
Detailed Product Description
Type: Induction Heating Equipment Working Voltage: 380V, 50/60HZ
Max Input Current: 320A Max Input Power: 200kw
Oscillation Frequency: 10-20KHZ Duty Cycle: 100%
Cooling Water Flow: 50L/Min,0.2MPa Weight: 380kg
Dimension: 1070*640*1870mm / 870*530*600mm Color: Optional
High Light:

induction heating furnace

,

induction heating unit

200kw High Frequency Induction Heating Forging Equipment

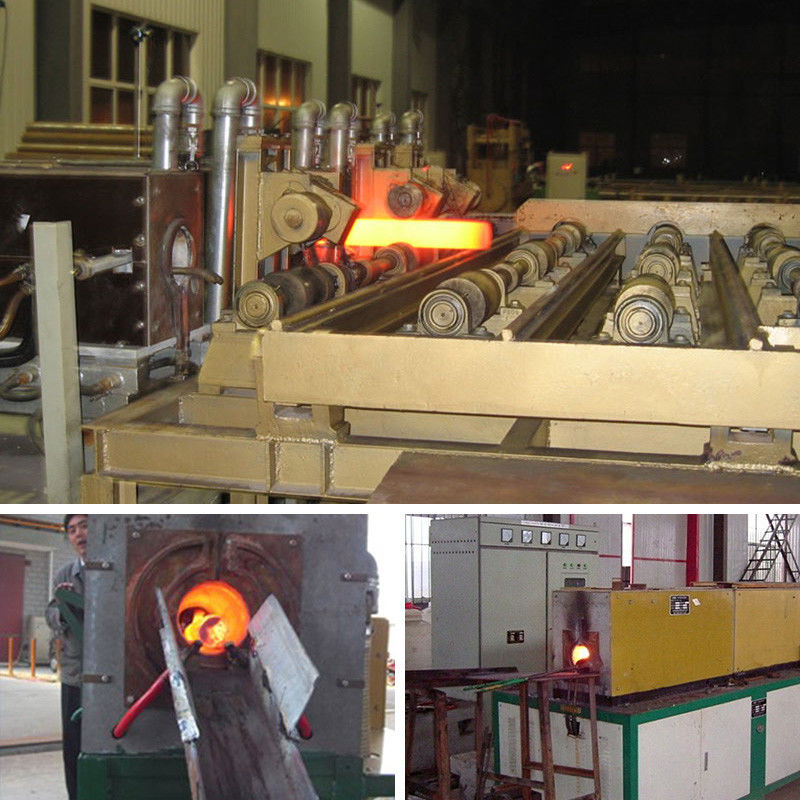

1. Application range(forging furnace induction heating machine):
1) Hot forming/forging of the standard components and fasteners
2) Hot forging of the automobile and motorcycle parts, metallic tools
3) Hot forging of embryo gear parts
4) Heat distortion of pipes
5) Other forging applications.
6) Suitable for workpiece with various shape and different diameter
7) Customized forging production solution

Steel Round Bar Induction Heat Treatment Machine 200kw Max Input Power 0

2. Technical Parameters of LSW-200 IGBT induction heating machine:

Model LSW-200
Working Voltage 380V, 50/60HZ
Max input power 200kw
Oscillation frequency 10-20KHZ
Duty cycle 100%
Cooling water flow 50L/Min,0.2MPa
Weight 380kg
Dimension (L*W*H ) 1070*640*1870mm / 870*530*600mm
Material stainless steel
Color support customized
Usage metal heating,quenching etc


3. Features of IGBT induction heating equipment: suitable for heating steel bars, pipes, plates and angle steels.
1. Be applicable to heating, quenching / hardening, etc.
2. IGBT technology as the core.
3. Environmentally friendly: no air pollution, no dust and little noise.
4. Reduced operating cost: high automation, fewer operators needed.
5. Energy saving: high energy conversion.
6. High efficiency: Metal can be heated to its desired temperature, even its melting point, instantly.
7. Duty cycle 100%: can work for 24 hours without a stop.

Steel Round Bar Induction Heat Treatment Machine 200kw Max Input Power 1

4. Our Service:



Pre-sale service:
1) Recommend the most suitable machine for customers, according to their requirements.
2) Inquiry and consulting support.
3) Sample testing support.
4) Visit our factory.



In-sale service:
1) Update the production process timely for you.
2) Carry out test according to relevant equipment test run regulations.
3) Strictly check up the machine before delivery.
4) Deliver on time.



After-sale service:
1) one year warranty period.
2) At warranty period,the replacement of quality-problem parts is realized.
3) If any big quality problems occur out of the guarantee period, we will send maintenance.
4) We will provide a lifetime favorable price to the buyer with the materials and spare parts used in system operation, equipment maintenance.



5. Related Products:

KGPS Melting Furnace LSZ Melting Furnace Cooling Tower
Steel Round Bar Induction Heat Treatment Machine 200kw Max Input Power 2 Steel Round Bar Induction Heat Treatment Machine 200kw Max Input Power 3 Steel Round Bar Induction Heat Treatment Machine 200kw Max Input Power 4
