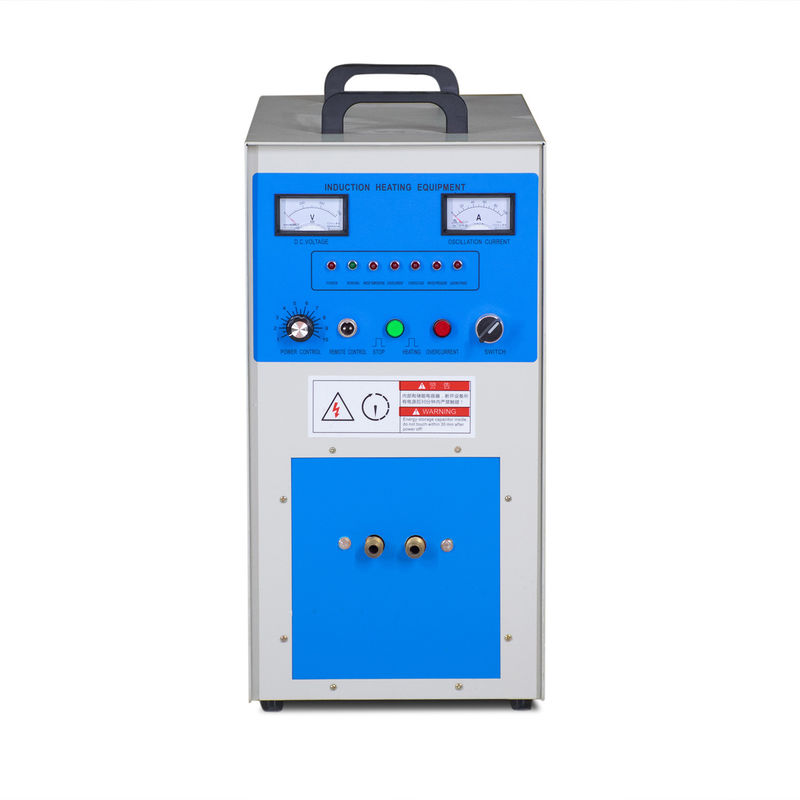

30KW Induction Brazing Welding Soldering Heating Machine
  • 30KW Induction Brazing Welding Soldering Heating Machine
  • 30KW Induction Brazing Welding Soldering Heating Machine
  • 30KW Induction Brazing Welding Soldering Heating Machine
  • 30KW Induction Brazing Welding Soldering Heating Machine
  • 30KW Induction Brazing Welding Soldering Heating Machine
30KW Induction Brazing Welding Soldering Heating Machine

30KW Induction Brazing Welding Soldering Heating Machine

Place of Origin CHINA
Brand Name ZHENGZHOU LANSHUO
Certification CE
Model Number LSW-30
Product Details
Power:
30KW
DC Current:
50A
DC Voltage:
500V
Input Voltage:
Three-phase 380V/420V/440V,50-60HZ
Heating Frequency:
25-50KHZ
Air Switch:
3*100A
Ground Wire:
1mm²
Water Pressure:
0.15-0.2MPa
Input Power Cord:
10mm²copper Wire
Input Power Control Switch:
3*100A
Equipment Grounding Wire:
1mm²soft Copper Wire
Highlight:

30KW induction brazing machine

,

induction welding heating equipment

,

industrial soldering heating machine

Payment & Shipping Terms
Minimum Order Quantity
1 SET
Price
1500USD-2000USD
Packaging Details
PLYWOOD CASE
Delivery Time
3-5 WORKING DAYS
Payment Terms
T/T
Product Description
parameter Power 30KW
DC current 50A
DC voltage 500V
Input voltage

Three-phase

380V/420V/440V,50-60HZ
Heating frequency 25-50KHZ
Air switch 3*100A
Ground wire 1mm²
Water pressure 0.15-0.2MPa
Dimension(after packing) 750mm*350mm*720mm
Weight(after packing) 58KG





Power

installation

 Input power cord 10mm²copper wire
Input power control switch 3*100A
Equipment grounding wire 1mm²soft copper wire





Cooling water installation Number of water in the control cabinet

water intake:one

water outlet:one
Water pipe specification Inlet water pipe’s inner diameter :25mm
Water outlet pipe’s inner diameter :25mm

Cooling system

(two choices)

 Use 2m³water tank + 1.5kw circulating pump(head 25m, flow 10m³/h)
2P chiller





List of goods 30kw induction brazing machine 1 set
Foot switch 1 set
Induction coil(according to the workpiece design) 1 set





Pictures:

30KW Induction Brazing Welding Soldering Heating Machine30KW Induction Brazing Welding Soldering Heating Machine

30KW Induction Brazing Welding Soldering Heating Machine30KW Induction Brazing Welding Soldering Heating Machine30KW Induction Brazing Welding Soldering Heating Machine30KW Induction Brazing Welding Soldering Heating Machine



CE:

30KW Induction Brazing Welding Soldering Heating Machine
