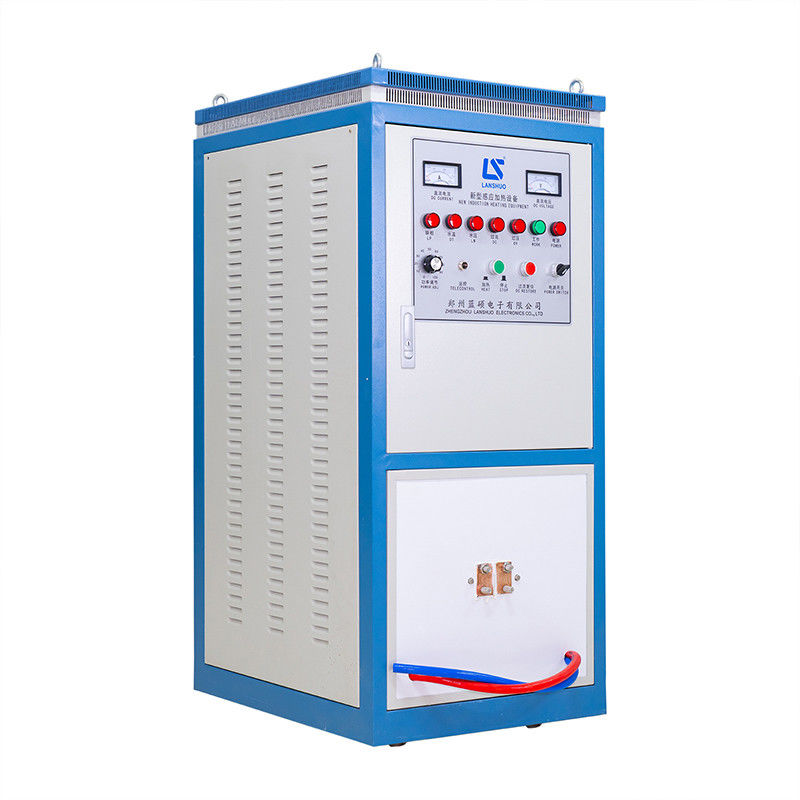

50kw Electric Induction Heating Machine For Quenching Clamp Knife Edge

50kw Electric Induction Heating Machine for Quenching Clamp Knife Edge

1. Induction Quenching Machine Brief Introduction :

It adopts the IGBT inverter circuit in parallel connection, which has high load adaptability.
The comprehensive full load design is available for 24-hour continuous operation.
The digital phase locked realizes following frequency automatically.
Design in modules. It is installed facility and use conveniently without debugging..
The perfect protection function, insuring the reliability and easily maintaining of the equipments.
The technique of converting frequency by resonance promotes efficiency of whole equipment by over 95%.
Economy and environment protection, it can replace of gas/coal/electronic tube induction heating machine.

Our high frequency induction welding machine adopts IGBT series and parallel induction heating technology as the core. This is a form of brazing that uses electromagnetic induction to heat the work piece, which makes the brazing filler metals' surface temperature rise rapidly till melting, connecting finally.

2. Technical Parameters of LSW-50 Induction Quenching Equipment:

3. Main characteristics of LSW-50 Induction Quenching Equipment:

1. It adopts the most advanced MOS, IGBT frequency conversion control technologies to ensure the high efficiency and maximum output power.
2. It has the constant current and power control function, which can significantly optimize metal heating process, realize the high efficient and fast heating and bring into play the superior performance of the products.
3. It has the function of three-stage time setting represented by heating-heat preservation-cooling.
Furthermore, the power for heating and heat preservation is available for independent regulation,which can facilitate the heating and heat preservation, which is applicable to places requiring bulking and repeated heating.
4. A maximum ten types fault protection and display of over-current, over-voltage, water shortage and phase missing can provide higher reliability and durability.
5. It is safe and reliable, and requires no equipments of ten thousand voltage, and thus can ensure the safe operation.
6. The comprehensive full load design is available for 24-hour continuous operation.
7. It is available for ultraviolet temperature detection, which can realize the automatic control of temperature, improve the heating performance and simplify the manual operation.

4. Induction Quenching Equipment Application:

Gear and bearing heat treatment, steel carbon steel stainless steel screw heating jointing,magnetic levitation melting, wire and pipe annealing, metal welding brazing soldering ,metal quenching , metal tempering etc.

1.Hardening parts of automobile,motorbike,mold,agricultural machinery.

2.Hardening machinery parts,such as: all kinds of gear wheel,chain wheel,kinds of axis,pin.

3.Hardening the industrial of machine tool,such as:bed guide way of machine tool.

4.Heat treatment pilers,spnner,screwdriver,drill,axe.

5.Hardening pin,piston ring ,spring pin,valve, shifting fork.

6.All kinds of track spiker.

5. Advantage Of Induction Equipment Machine:

1.Rapid precise heating minimises distortion
2.Improved impact/wear resistance and tensile/fatique strength from surface hardening with core properties retained
3.Accurate control of depth and extent of heating
4.Repeatable, versatile, cost effective
5.Less interference to other equipment in the workshop

6. Adoping MOSFET and IGBT, inverting device, tracking frequency automatically
7. High frequency, heated quickly, its power consumption is only 20%-30% of electronic tube induction heating machine and other heating style.
8. Security and reliability, the equipments have the secure voltage and it’s secure to operate.
9. Manual, automatic regulating automatically, it can protect itself from over voltage, over current, lack of water, phase fail, over hot, etc.
10. It has no open-fire, noise and pollution ,be suit for the environmental protection and fire , improve the image of the company.
