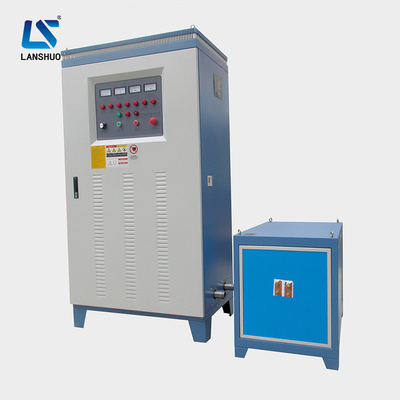

High Frequency Induction Heating Equipment 200kw For Central Shaft

High Frequency Induction Heating Equipment 200kw For Central Shaft
High Frequency Induction Heating Equipment 200kw For Central Shaft
video play

Large Image :  High Frequency Induction Heating Equipment 200kw For Central Shaft

Product Details:
Place of Origin: China
Brand Name: Lanshuo
Certification: CE ISO
Model Number: LSW-200
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 10000-30000 / set
Packaging Details: wooden case
Delivery Time: 7-10 working days after receiving advanced payments
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 Sets per Year
Detailed Product Description
Type: Induction Quenching Machine Working Voltage: 380V/50HZ
Voltage Range: 340V-420V DC Power: 200KW
DC Current: 320A Oscillation Frequency: 10-20KHZ
Efficiency: 90% Duty Cycle: 100%
Dimension: 1070*640*1870mm,870*530*600mm Cooling Water Flow: 0.2MPa-50L/Min,0.2MPa-60L/Min
High Light:

high frequency induction heating equipment


200kw induction heating equipment


Central Shaft induction heating equipment

shafts induction quenching heat treating equipment

1. shaft high frequency induction quenching machine:

In the process of high-frequency induction heating equipment for the heat treatment of the central shaft, the specific technical requirements are: the carbon content is 0.8%-1.0%; the depth is 0.7-1.0mm; the surface hardness is 80-83HRA; the microstructure is Martens The body grade is less than grade 4, there is no obvious carbide, and it is distributed on the basis of the martensite in a small, uniform and round form; good toughness (not broken during straightening) and small distortion (bending <0.3mm) .The subsequent heating is water-cooled after reheating. It can be heated as a whole or locally, and then heated at a low temperature. The surface of the central axis after heat treatment has obtained high hardness and has good comprehensive mechanical properties inside.

High Frequency Induction Heating Equipment 200kw For Central Shaft 0
2.  Technical Parameter of High Frequency Induction Hardening Quenching Machine:

Working voltage
Voltage range
DC power
DC current
Oscillation frequency
Duty cycle
Cooling water flow

3. Induction Quenching Hardening Machine Classfication:

The induction hardening types are divided into: power frequency, low frequency, intermediate frequency, super audio frequency, high frequency, and ultra high frequency. The suitable frequency is selected according to the hardening depth. The greater the depth of the hardened layer, the lower the required frequency, and vice versa, the higher.

High Frequency Induction Heating Equipment 200kw For Central Shaft 1

4. How Does Induction Heating Work?:
When a magnetic field changes near a metal or other conductive object, a flow of current (known as an eddy current) will be induced in the material and will generate heat. The heat generated is proportional to the current squared multiplied by the resistance of the material. The effects of induction are used in transformers for converting voltages in all sorts of appliances. Most transformers have a metallic core and will therefore have eddy currents induced into them when in use. Transformer designers use different techniques to prevent this as the heating is just wasted energy. In this project we will directly make use of this heating effect and try to maximise the heating effect produced by the eddy currents.

High Frequency Induction Heating Equipment 200kw For Central Shaft 2

Annealing (tempering and modulation):

1. The heat source is on the surface of the workpiece, the heating speed is fast, and the thermal efficiency is high
2. Because the workpiece is not heated as a whole, the deformation is small
3. The heating time of the workpiece is short, and the amount of surface oxidation and decarburization is small
4. The surface hardness of the workpiece is high, the notch sensitivity is small, and the impact toughness, fatigue strength and wear resistance are greatly improved. Conducive to exert the potential of materials, save material consumption, and increase the service life of parts
5. The equipment is compact, easy to use and good working conditions
6. Facilitate mechanization and automation
7. Not only used in surface quenching, but also in penetration heating and chemical heat treatment.
