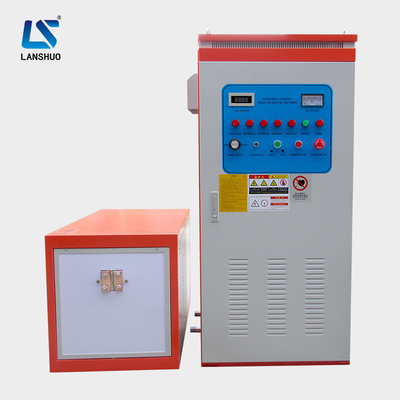

Electric Gear Shaft Induction Hardening Quenching Machine 23KHZ High Frequency 420V

160kw High frequency shaft induction heating hardening machine for metal quenching equipment

1. Performance characteristics of medium frequency induction heating machine:

1. The efficiency of the whole machine is high, and the efficiency of the whole machine can reach more than 85%.
2. High reliability, with a unique circuit design, the power module unit used constitutes the system, even if a single power module unit is damaged, it will not cause equipment work interruption, so that the reliable operation of the equipment has been substantially improved.
3. The output power is easy to adjust, the response speed is fast, the control is accurate, and the heating conditions can be selected arbitrarily.
4. Since all energy-saving devices are used, the life of the whole machine is long.
5. Energy saving: Compared with the electronic tube high-frequency induction heating equipment of the same power level, it can save more than 50% of electricity and more than 70% of water.
6. Low failure rate, low working voltage (380V), high safety factor, convenient use, inspection and maintenance.
7. Simple structure, small footprint and light weight.
8. Realize large capacity, and the power of a single machine can reach more than 200kW.
2.  Technical Parameter of High Frequency Induction Hardening Quenching Machine:

3. Induction Quenching Hardening Machine Application:

1. Various hardware and tools, such as plier, wrench, hammer, ax, screwing tools and shear (orchard shear).
2. Various automobile and motorcycle fittings, such as crankshaft, connecting rod, piston pin, chain wheel, aluminum wheel, valve, rock arm shaft, semi drive shaft, small shaft and fork.
3. Electric tools, such as gear and axes.
4. Machine tools, such as lathe deck and guide rail.
5. Various hardware metal parts and machined parts, such as shaft, gear (chain wheel), cam, chuck and clamp etc.
6. Hardware molds, such as small-size mold, mold accessory and inner hole of mold.
7. Other metal products.

4. Advantage of Introduction quenching machine:
1. Germany SIEMENS INFINEON IGBT Module. ( 40-60KHZ oscillation frequency, fast response time, superhigh stability, almost spatter-free welding )
2. Japan Nichicon electrolytic capacitor. ( filter capacitor )
3. Imported transistor integrated block.
4. All water pipe use thermostability, High pressure resistance best quality material.
5. Main card, signal circuit, drive circuit board,control circuit board and components are adopted:Toshiba, Hitachi,Motorola, China's top manufacturers.
6. International advanced all-solid-state semiconductor power devices.
7.Technical advantage:perfect control, alarm display circuit, getting full automatic tracking frequency, continuous adjustable power, safe dependable protection,clear and accuracy data display and etc.
8. Superiority Advantages: fast heating, wide application, small size, easy installation, simple operation, low power consumption, high efficiency.
