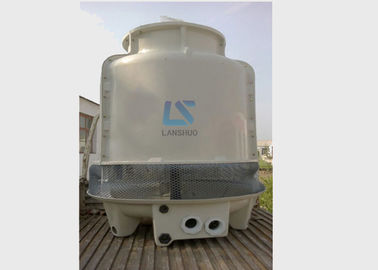

60T Open Loop Cooling Tower / Metal Structure Open Water Cooling System
  • 60T Open Loop Cooling Tower / Metal Structure Open Water Cooling System
  • 60T Open Loop Cooling Tower / Metal Structure Open Water Cooling System
  • 60T Open Loop Cooling Tower / Metal Structure Open Water Cooling System
  • 60T Open Loop Cooling Tower / Metal Structure Open Water Cooling System

60T Open Loop Cooling Tower / Metal Structure Open Water Cooling System

Place of Origin China
Brand Name Lanshuo
Certification CE
Model Number LSK-60T
Product Details
Type:
Open Type Cooling Tower
Model Number:
60T
Voltage:
380V
Power:
1.5kw
Dimension:
2145*2035cm
Weight:
1280KG
Water Flow:
60m3/h
Color:
Optional
Keyword:
Cooling Tower
Highlight:

open loop cooling system

,

open water cooling system

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
USD1000-5000 / set
Packaging Details
wooden cases
Delivery Time
5-7 working days after receiving advanced payment
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
300 Set/Sets per Month PVC filler for open type cooling tower
Product Description

LSK-60T Industrial Counter Flow Open Type Loop Water Cooling Tower



1.Brief Introduction Of Open Type Cooling Tower:

Water Cooling Tower for Industrial Refrigeration
1, The strength of the cooling tower shell adopts the high quality glass fiber production, acid and alkali resistant, anti-aging, and beautiful, is like new after long-term used.
2, The cooling tower body metal structure are processed by hot dip galvanized, greatly reduce oxidation, more durable, prolong life.
3, The cooling tower heat dissipation material made of high quality PVC film film curvy corrugated design, effectively extend the period of high temperature water and air heat exchanger, uniform water distribution, water, greatly improving in thermal efficiency, drift to minimize water, save energy consumption.
4, The cooling tower cooling fan blade forward type space warps, phoenix high volume, low noise, low energy consumption.
5. The cooling tower cooling motor adopts closed waterproof, smooth operation, long service life.

2. Main features for cooling tower:
(1) Need no water pool.
(2) Circulating cooling medium is in closed-loop and free of impurity,which guarantee the purity of the medium.
(3) The circulating water is soft water which won’t scale.
(4) Small floor area,can be moved and placed according to the buyer’s need.
(5) Low power consumption,simple and reliable operation.

60T Open Loop Cooling Tower / Metal Structure Open Water Cooling System 0

3. Technical Parameter of Open Type Cooling Tower :

Model Flow Motor Power

Dimension

of Fan

Air Flow Water Pressure Weight
            Net  Gross
LSK-10 10m3/h 0.37kw 600mm 140cmm 13KPa 54kg 290kg
LSK-20 20m3/h 0.75kw 730mm 200cmm 16KPa 98kg 500kg
LSK-60 60m3/h 1.5kw 1150mm 450cmm 18KPa 260kg 1280kg
LSK-125 125m3/h 2.2kw 1410mm 950cmm 23KPa 580kg 1680kg

LSK-200

200m3/h 4kw 1800mm 1500cmm 33KPa 1050kg 2770kg
LSK-300 300m3/h 7.5kw 2400mm 2200cmm 34KPa 1800kg 3790kg
LSK-500 500m3/h 15kw 3400mm 3750cmm 42KPa 3950kg 9350kg
LSK-800 800m3/h 22kw 3700mm 5400cmm 45KPa 4900kg 12100kg
LSK-1000 1000m3/h 30kw 4200mm 7200cmm 47KPa 5800kg 13400kg

4.The details for PVC filler for open type cooling tower:
1. PVC drift eliminator, recycle steam to the maximum extent possible, reduce the Evaporation loss.
2. The PVC S wave cooling tower filling, bigger water flow surface.
3. The cooling tower spray nozzles is the most important in cooling tower, it ensure the water spray evenly
4. The cooling tower louver, large air volume, small wind resistanc, advoid the debris float into the cooling tower, and prevent the water splashing.
5. The FRP sheel, smooth surface,Durable and long life.

60T Open Loop Cooling Tower / Metal Structure Open Water Cooling System 1

5. Application of Open Cooling Tower:
1. Cooling tower is mainly used for cooling in air conditioning system, frozen series, injection molding, leather, foam, power generation, steam turbine, aluminum processing, air compressors, industrial cooling water and other fields;
2. Most used for air conditioning cooling, freezing, plastic chemical industry;
3. Closed circuit cooling tower have the Attractive shape: the Small dimension of shape, the low height of the tower, light weight of tower, and multiform layout in covering the area.
