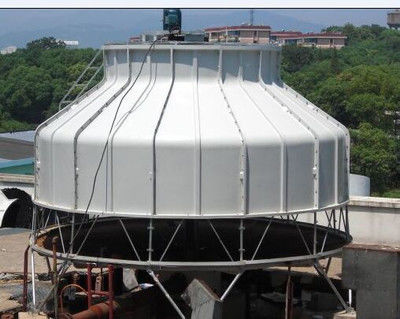

Round Shape Industrial Open Loop Water Cooling Tower For Chiller

Round Shape Industrial Open Loop Water Cooling Tower For Chiller
Round Shape Industrial Open Loop Water Cooling Tower For Chiller

Large Image :  Round Shape Industrial Open Loop Water Cooling Tower For Chiller

Product Details:
Place of Origin: China
Brand Name: Lanshuo
Certification: CE ISO
Model Number: LSK-125T
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD1000-5000 / set
Packaging Details: wooden cases
Delivery Time: 5-7 working days after receiving advanced payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300 Set/Sets per Month PVC filler for open type cooling tower
Detailed Product Description
Type: Open Type Cooling Tower Model Number: 125T
Voltage: 380V Power: 2.2kw
Dimension: 2900*2555cm Weight: 1680KG
Water Flow: 1250m3/h Color: Optional
Keyword: Cooling Tower
High Light:

380V Open Loop Water Cooling Tower

,

Round Shape Water Cooling Tower

,

Water Cooling Tower For Chiller

Round Shape Industrial Water Open Loop Cooling Tower For Chiller​



1. Design condition of open type cooling tower:
Inlet temperature 37°C, outlet 32°C; temperature difference 5°C;
Wet bulb temperature 27°C, and atmospheric pressure 99400Pa.
Specifications and dimensions are subject to change without notice.

2. Main features for open type cooling tower:
1. Suspension structure: stainless steel structure, painted with epoxy-(coal)tar or Chlorosulfonated polyethylene after plated with zinc
2. Enclosure structure: polyester glass steel, with light weight, high strength corrosion resistant, anti aging, long service life
3. Air duct: Kinetic energy recovery type, reasonable air distribution with high efficiency
4. Fan: aerofoil epoxy-(coal)tar blade, features big air flow, high efficiency, low noise and corrosion resistance

Round Shape Industrial Open Loop Water Cooling Tower For Chiller 0

3. Technical Parameter of Open Type Cooling Tower :

Model Flow Motor Power

Dimension

of Fan

Air Flow Water Pressure Weight
            Net  Gross
LSK-10 10m3/h 0.37kw 600mm 140cmm 13KPa 54kg 290kg
LSK-20 20m3/h 0.75kw 730mm 200cmm 16KPa 98kg 500kg
LSK-60 60m3/h 1.5kw 1150mm 450cmm 18KPa 260kg 1280kg
LSK-125 125m3/h 2.2kw 1410mm 950cmm 23KPa 580kg 1680kg

LSK-200

200m3/h 4kw 1800mm 1500cmm 33KPa 1050kg 2770kg
LSK-300 300m3/h 7.5kw 2400mm 2200cmm 34KPa 1800kg 3790kg
LSK-500 500m3/h 15kw 3400mm 3750cmm 42KPa 3950kg 9350kg
LSK-800 800m3/h 22kw 3700mm 5400cmm 45KPa 4900kg 12100kg
LSK-1000 1000m3/h 30kw 4200mm 7200cmm 47KPa 5800kg 13400kg

4. Brief Introduction Of Open Type Cooling Tower:

Water Cooling Tower for Industrial Refrigeration
1, The strength of the cooling tower shell adopts the high quality glass fiber production, acid and alkali resistant, anti-aging, and beautiful, is like new after long-term used.
2, The cooling tower body metal structure are processed by hot dip galvanized, greatly reduce oxidation, more durable, prolong life.
3, The cooling tower heat dissipation material made of high quality PVC film film curvy corrugated design, effectively extend the period of high temperature water and air heat exchanger, uniform water distribution, water, greatly improving in thermal efficiency, drift to minimize water, save energy consumption.
4, The cooling tower cooling fan blade forward type space warps, phoenix high volume, low noise, low energy consumption.
5. The cooling tower cooling motor adopts closed waterproof, smooth operation, long service life.

Round Shape Industrial Open Loop Water Cooling Tower For Chiller 1

5. Application of Open Cooling Tower:
1. Cooling tower is mainly used for cooling in air conditioning system, frozen series, injection molding, leather, foam, power generation, steam turbine, aluminum processing, air compressors, industrial cooling water and other fields;
2. Most used for air conditioning cooling, freezing, plastic chemical industry;
3. Closed circuit cooling tower have the Attractive shape: the Small dimension of shape, the low height of the tower, light weight of tower, and multiform layout in covering the area.

Round Shape Industrial Open Loop Water Cooling Tower For Chiller 2

6.Advantage of open type cooling tower:

1. Motor : selection of the world famous brand Siemens closed ultralow noise motor , the motor insulation class F , protection class IP55, high efficiency , long life , high temperature , strong ability to adapt to changes in voltage , can fully guarantee the cooling tower life and operating results.

2. fans : selection of test flying Industrial R & D chord solitary large , low-speed , high winds , high-strength aluminum alloy silent type blower is 6 to7 times more common aluminum alloy sheet , maintaining good precision performance ; also has light weight, high efficiency , energy , balancing good , vibration, security and stability, long life and other advantages.

3. Transmission: The choice of NSK or NTN bearings standard bearing , long life, easy to damage ; belt use Japanese Samsung waterproof slip -belt , high strength , wear resistance and long life.

4. FRP: Taiwan imported high quality selection of synthetic resin and glass fiber mat , its high tensile strength, hardness, life is about more than 30 years , than conventional glass fiber cloth and synthetic resin fiberglass products and long service life of about 10 years.
