|Type:||Induction Heating Equipment||Working Voltage:||220V, 50/60HZ|
|Max Input Current:||30A||Max Input Power:||16kw|
|Oscillation Frequency:||28-40KHZ||Duty Cycle:||100%|
|Cooling Water Flow:||20L/Min,0.15-0.2MPa||Weight:||25kg|
induction heating furnace,
induction heating unit

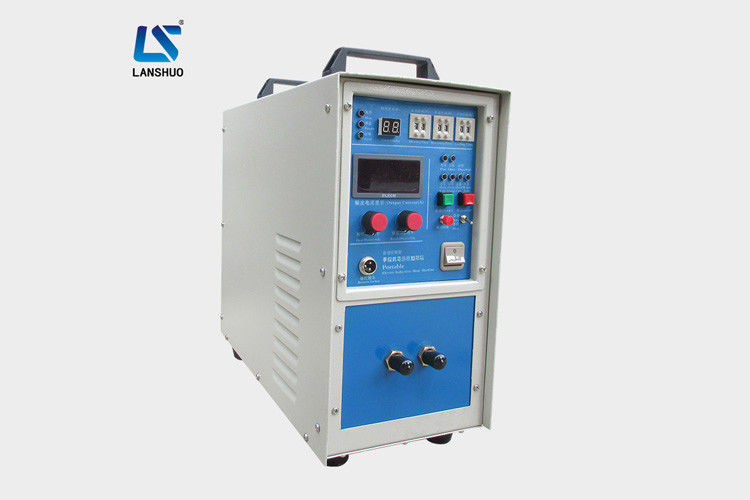

LSW-16 IGBT Induction Heating Forging Equipment
1. Technical Parameters of LSW-16 Induction Heating Equipment:
|Working Voltage||220V, 50/60HZ|
|Max input power||16kw|
|Cooling water flow||20L/Min,0.15-0.2MPa|
|Dimension (L*W*H )||420*200*360mm|
|Usage||metal heating, brazing,melting etc|
2. LSW-16 Induction Heating Equipment Application:
(1) bolts and nuts forging and hot upsetting
(2) pipe induction forging and forming
(3) auto parts (connecting rod, crank shaft, etc.), cast iron beam heating and continuous heating
(4) oxygen bottle forging
(5) rivet heating
(6) long / round / square / angle bar and billet heating, etc.
3. Brief Introduction of Induction Heating Equipment:
Our high frequency induction heating machine adopts IGBT series and parallel induction heating technology as the core. The induction heating machine heats the work piece to a certain temperature, and then cools it rapidly to change its machine structure to achieve some special mechanic properties.
4. LSW-16 Induction Heating Machine Package:
As for packaging of induction heating machine: The machine is always packed with wrapping film for waterproof, and then put into a standard exporting plywood case with foam around for shockproof.
As for shipping of induction heating machine:
1. If you have a shipper in China, we can send the machines to him or her for free.
2. If you want us to send the machines to you directly, we can send them to any main port of China promptly.
