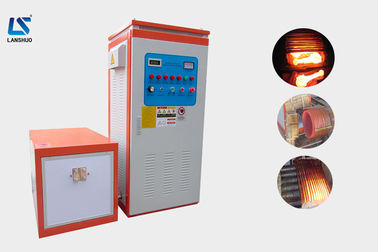

IGBT Fastener Induction Heating Machine For Forging 160kw High Frequency

IGBT Fastener Induction Heating Machine For Forging 160kw High Frequency
IGBT Fastener Induction Heating Machine For Forging 160kw High Frequency
video play

Large Image :  IGBT Fastener Induction Heating Machine For Forging 160kw High Frequency

Product Details:
Place of Origin: China
Brand Name: Lanshuo
Certification: CE
Model Number: LSW-160
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 1000-20000 / set
Packaging Details: wooden boxes
Delivery Time: 5-7 working days after receiving advanced payments
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 2000 sets per year
Detailed Product Description
Type: Induction Heating Equipment Working Voltage: 380V, 50/60HZ
Max Input Current: 240A Max Input Power: 160kw
Oscillation Frequency: 18-23KHZ Duty Cycle: 100%
Cooling Water Flow: 50L/Min,0.2MPa Weight: 260kg
Dimension: 600*480*1360mm / 800*500*580mm Color: Optional
High Light:

induction heating furnace

,

induction heating unit

LSW-160 160kw Electric IGBT Fastener Induction Heating Equipment

1. Brief introduction of IGBT induction heating equipment:

Our high frequency induction heating machine adopts IGBT series and parallel induction heating technology as the core. The induction heating machine heats the work piece to a certain temperature, and then cools it rapidly to change its machine structure to achieve some special mechanic properties.

2. Applications of IGBT induction heating machine:

(1) Heating: mainly for carbon steel, stainless steel, alloy, brass, aluminum, etc. heating.

(2) Forging: Whole and partial induction forging for metal bar.

(3) Workpiece hot forging and rolling: standard parts, fasteners, automobile parts, small hardware, round bar and billet, etc.

(4) Specific application for the induction forging heater: bolts and nuts forging and hot upsetting, pipe induction forging and forming, auto parts (connecting rod, crank shaft, etc.), cast iron beam heating and continuous heating, oxygen bottle forging, rivet heating, long / round / square / angle bar and billet heating, etc.

IGBT Fastener Induction Heating Machine For Forging 160kw High Frequency 0

IGBT Fastener Induction Heating Machine For Forging 160kw High Frequency 1

IGBT Fastener Induction Heating Machine For Forging 160kw High Frequency 2

3. Features of IGBT induction heating equipment: suitable for heating steel bars, pipes, plates and angle steels.

1. Be applicable to heating, quenching / hardening, etc.

2. IGBT technology as the core.

3. Environmentally friendly: no air pollution, no dust and little noise.

4. Reduced operating cost: high automation, fewer operators needed.

5. Energy saving: high energy conversion.

6. High efficiency: Metal can be heated to its desired temperature, even its melting point, instantly.

7. Duty cycle 100%: can work for 24 hours without a stop.

4. Technical Parameters of LSW-160 IGBT induction heating equipment:

Model LSW-160
Working Voltage 380V, 50/60HZ
Max input power 160kw
Oscillation frequency 18-23KHZ
Duty cycle 100%
Cooling water flow 50L/Min,0.2MPa
Weight 260kg
Dimension (L*W*H ) 600*480*1360mm / 800*500*580mm
Material stainless steel
Color support customized
Usage metal heating,quenching etc

 5. LSW-160 IGBT IGBT induction heating equipment:
IGBT Fastener Induction Heating Machine For Forging 160kw High Frequency 3

As for packaging of induction heating machine: The machine is always packed with wrapping film for waterproof, and then put into a standard exporting plywood case with foam around for shockproof.
As for shipping of induction heating machine:
1. If you have a shipper in China, we can send the machines to him or her for free.
2. If you want us to send the machines to you directly, we can send them to any main port of China promptly.
