|Type:||Induction Heating Equipment||Working Voltage:||380V, 50/60HZ|
|Max Input Current:||320A||Max Input Power:||200kw|
|Oscillation Frequency:||10-20KHZ||Duty Cycle:||100%|
|Cooling Water Flow:||50L/Min,0.2MPa||Weight:||380kg|
|Dimension:||1070*640*1870mm / 870*530*600mm||Color:||Optional|
induction heating equipment,
induction heating unit
1. Applications of IGBT induction heating machine:
1). through thermoforming all kinds of standard parts, fasteners, machinery parts, hardware tools, straight shank twist drill of hot forging, hot rolling, metal annealing. Such as: tensile steel; wire, nail wire heating; stainless steel annealed etc.
2). heat treatment various types of hardware tools, electric, hydraulic, pneumatic components, automotive, motorcycle parts and other mechanical parts of the surface of the metal, the hole, partial or total quenching. Such as: hammer, knife, scissors, pliers and all kinds of shafts, cams, sprockets, gears, valves, ball stud, a large machine tool guide, ductile iron quenching.gear induction heating for hardening

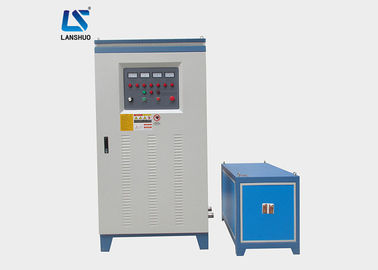

2. Technical Parameters of LSW-200 IGBT induction heating machine:
|Working Voltage||380V, 50/60HZ|
|Max input power||200kw|
|Cooling water flow||50L/Min,0.2MPa|
|Dimension (L*W*H )||1070*640*1870mm / 870*530*600mm|
|Usage||metal heating,quenching etc|
3. Brief introduction of IGBT induction heating equipment:
Our high frequency induction heating machine adopts IGBT series and parallel induction heating technology as the core. The induction heating machine heats the work piece to a certain temperature, and then cools it rapidly to change its machine structure to achieve some special mechanic properties.
4. Features of IGBT induction heating equipment: suitable for heating steel bars, pipes, plates and angle steels.
1. Be applicable to heating, quenching / hardening, etc.
2. IGBT technology as the core.
3. Environmentally friendly: no air pollution, no dust and little noise.
4. Reduced operating cost: high automation, fewer operators needed.
5. Energy saving: high energy conversion.
6. High efficiency: Metal can be heated to its desired temperature, even its melting point, instantly.
7. Duty cycle 100%: can work for 24 hours without a stop.
5. LSW-200 IGBT IGBT induction heating equipment:
As for packaging of induction heating machine: The machine is always packed with wrapping film for waterproof, and then put into a standard exporting plywood case with foam around for shockproof.
As for shipping of induction heating machine:
1. If you have a shipper in China, we can send the machines to him or her for free.
2. If you want us to send the machines to you directly, we can send them to any main port of China promptly.
