Payment & Shipping Terms:
|Type:||Induction Melting Furnace||Power:||90kw|
|Input Current:||140A||Voltage:||3-phase 380v, 50/60hz|
|Oscillation Frequency:||1-15KHZ||Connecting Wire:||75mm2|
|Control Switch:||3*225A||Ground Wire:||2mm2|
|Cooling Water Pressure:||≥0.2MPa||Cooling Water Flow:||≥20L/Min|
induction melting machine,
medium frequency induction melting furnace
1. Induction Melting Furnace Feature:
1. Using the principle of electromagnetic induction, the machine can penetrate non-metallic materials and instantly induce heat to various metals in a non-contact form;
2. Using IGBT inverter power device, high efficiency and energy saving, easy to control heating. The heating current value and heating voltage value can be set, and the current, voltage, power and frequency are all displayed. The operation is intuitive, simple and convenient.
3. The traditional intermediate frequency parallel resonance structure is adopted, and the frequency range is large, from 1kHz to 20kHz, which can be matched according to the size of the specific heating workpiece or the depth of heat penetration, and the adaptability is large. Load matching is simple, equipment efficiency is high and utilization is high.
4. The machine has a number of self-protection functions: overvoltage, overcurrent, lack of water, overheating, high frequency, low frequency, phase loss protection, etc. If there is any manual error in operation, the machine will automatically alarm immediately to protect the life of the machine itself
5. It can be controlled manually, or it can be automatically controlled by the time of the automatic control panel. According to customer requirements, an additional infrared controller can be configured to make heating more intelligent.
2. Melting Capacity of Induction Melting Furnace:
3. Induction Melting Furnace Application:
3. The advantages of medium frequency induction melting furnace:
1. Power saving and energy saving
2. Fast heating speed and high productivity.
3. It is easy to realize mechanization, automation and flow production.
4. Save energy.
5. No oxidation, no decarburization or micro-oxidation and micro-decarburization of the heated workpiece.
6. Heating and diathermy type is good, the temperature is uniform
7. No pollution and good working environment
Due to the advantages of fast smelting speed, high smelting quality, low power consumption and low noise, this equipment is widely used in the smelting of copper, aluminum, gold, silver, steel, stainless steel and other metals. In addition, our equipment has the function of electromagnetic stirring, so that the smelted metal can be heated and melted evenly, and the process of manual stirring is also omitted, and the smelting is more worry-free.
7. Related Products:
|Large Melting Furnce|

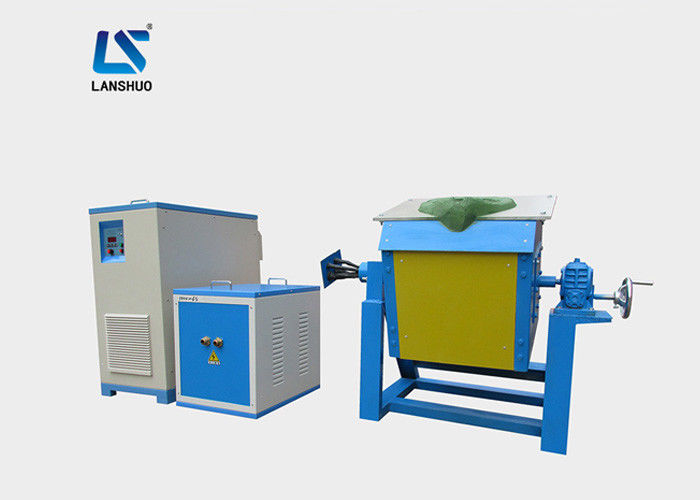

The intermediate frequency induction heating furnace is generally divided into two parts, the main engine and the transformer. The transformer can be connected with the induction coil or with the automatic dumping furnace. The main machine has a built-in water circulation system, and the cooling water can be recycled in the main machine without discharge and pollution; for the smelting of aluminum alloy, the heating speed is fast and the heating temperature is controllable. It can also be used with an electromagnetic stirring device, and the furnace body can be long Time repeated use, long life.
