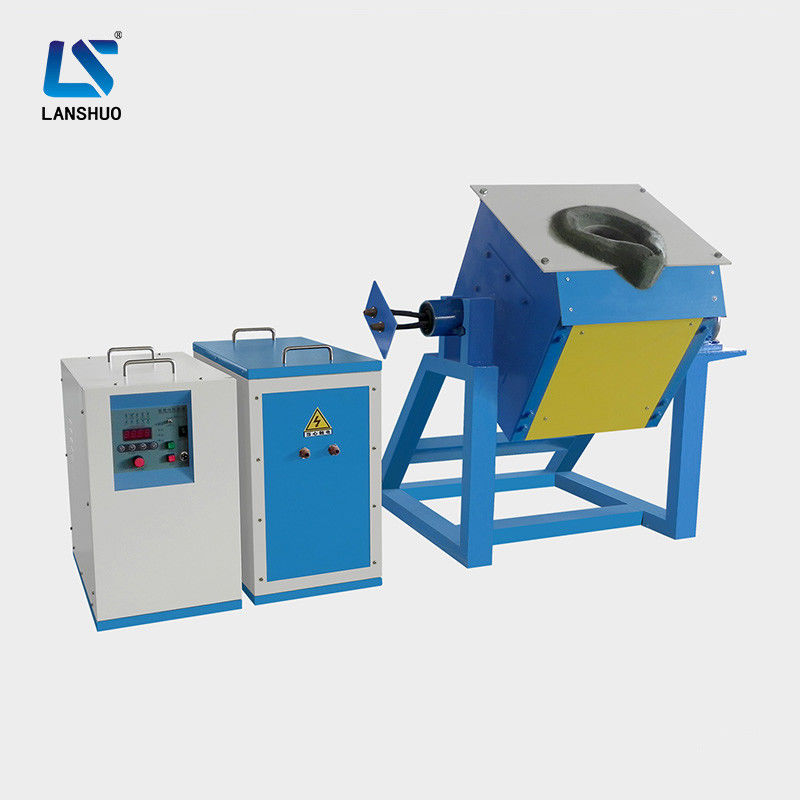

35kw 30kg Gold Silver Copper Melting Induction Melting Furnace
1. Advantages of LSZ series Induction Melting Furnace:
(1) High efficiency: Induction power, heat transfers to the furnace in a short time.
(2) Energy saving: Compared with traditional melting ways (gas & oil), saving 20%~30% power.
(3) Easy and safe to use: All-round indicator lights controller, much safer and easier for workers to operate.
(4) Stable in use: Our products have been tested at every level, reducing the rate of failure to a great extent.
(5) Environmentally friendly: Electricity-powered, no air pollution, no dust and little noise.
(6) Easy to carry and install: Portable, saving much more room.
2. Melting Capacity of LSZ Series Induction Melting Furnace:
| Model |
Power |
Melting Capacity |
| steel, stainless steel |
copper, gold, silver |
aluminum, aluminum alloy |
| LSZ-15 |
15kw |
3kg |
10kg |
3kg |
| LSZ-25 |
25kw |
5kg |
20kg |
5kg |
| LSZ-35 |
35kw |
10kg |
30kg |
10kg |
| LSZ-45 |
45kw |
18kg |
50kg |
18kg |
| LSZ-70 |
70kw |
25kg |
100kg |
25kg |
| LSZ-90 |
90kw |
40kg |
120kg |
40kg |
| LSZ-110 |
110kw |
50kg |
150kg |
50kg |
| LSZ-160 |
160kw |
100kg |
250kg |
100kg |
|
3. Electric Small Copper Induction Melting Furnace Application:
4. Main Technical Parameters of LSZ Series Induction Melting Furnace:
| Model |
Power |
Input current |
Voltage |
Oscillation frequency |
Connect-
ing wire
|
Control switch |
| LSZ-15 |
15kw |
18A |
3-phase 380 V, 50/60 Hz |
1-15KHz |
10mm2 |
3*40A |
| LSZ-25 |
25kw |
36A |
10mm2 |
3*60A |
| LSZ-35 |
35kw |
57A |
16mm2 |
3*80A |
| LSZ-45 |
45kw |
80A |
35mm2 |
3*120A |
| LSZ-70 |
70kw |
110A |
50mm2 |
3*150A |
| LSZ-90 |
90kw |
140A |
75mm2 |
3*225A |
| LSZ-110 |
110kw |
160A |
90mm2 |
3*225A |
| LSZ-160 |
160kw |
240A |
120mm2 |
3*300A |
5. Certificates:
