|Type:||Induction Heating Machine||Working Voltage:||380V, 50/60HZ|
|Max Input Current:||90A||Max Input Power:||60kw|
|Oscillation Frequency:||18-35KHZ||Duty Cycle:||100%|
|Cooling Water Flow:||28L/Min,0.15MPa||Weight:||150kg|
|Dimension:||730*550*1030mm / 460*730*460mm||Color:||Optional|
induction heating furnace,
induction heating unit

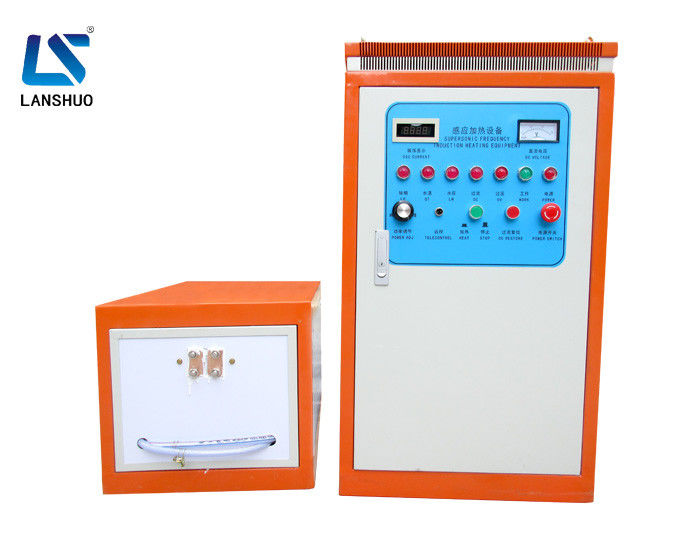

1. Feature of IGBT induction heating equipment machine:
1).IGBT(INFINEON) technology, high conversion efficiency;
20.Energy saving 15%-30% , compared to SCR/KGPS technologyMuch more efficient than gas-fired and coal-fired method 100% start-up success rate; power factor > 95%
3).Perfect and complete protection functions, increasing machine's reliability & stability
40.No special foundations required, Low operating cost, Easy operation
5).Modular design, ease of maintaining and repairing
2. Technical Parameters of LSW-60 IGBT induction heating equipment:
|Working Voltage||380V, 50/60HZ|
|Max input power||50kw|
|Cooling water flow||28L/Min,0.15MPa|
|Dimension (L*W*H )||730*550*1030mm / 460*730*460mm|
|Usage||metal heating,quenching etc|
3. Application of IGBT induction heating equipment:
1). Heating metal raw materials for forging, heating building site use rebar, fast water boiling, heating band saw.
2). Melting: with a higher power, it can be used to melt less than 50KG gold, silver, aluminum.
3). Welding: soldering, cooper soldering, fast speed cutting tools soldering, hard alloy soldering/welding, copper tube soldering.
4). Heat treatment: Annealing, after welding heat treatment, metal parts internal stress relive, shaft, and gear surface hardening/quenching.
5). Garage auto repairing use bolt remove, car dent removal.
