| Type: | Induction Heating Machine | Working Voltage: | 380V, 50/60HZ |
|---|---|---|---|
| Max Input Current: | 45A | Max Input Power: | 30kw |
| Oscillation Frequency: | 25-40KHZ | Duty Cycle: | 100% |
| Cooling Water Flow: | 25L/Min,0.15-0.2MPa | Weight: | 49kg |
| Dimension: | 690*290*600mm | Color: | Optional |
| High Light: | induction heating furnace,induction heating unit |
||

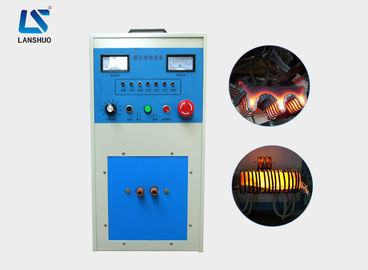

IGBT 30KW Ultra High Frequency Induction Heating Machine
1. Main Characteristics of LSW-30 IGBT Induction Heating Machine:
1). IGBT solid-state inverter, energy efficient
2).100% full duty cycle design, can work continuously.
3).Phase-Locked technology,automatically tracking frequency.
4). Perfect self-protection function,high reliability,simple installation,convenient operation.
5). Be controlled remotely and be connected with Infrared Thermometer, to achieve automatic control of temperature, improving the heating quality and simplify the manual operation.
2. Advantage of Induction Heating Equipment :
·Adopting MOSFGT and IGBT inverting device, tracking frequency automatically
·High frequency, heated quickly, its power consumption is only 20%~30% of electronic tube
induction heating machine and other heating style.
·Security and reliability, the equipments have the secure voltage and it's secure to operate
·Manual, automatic regulating automatically, it can protect itself from over voltage, over
current,lack of water, phase fail, over hot, etc
·It has no openfire, noise and pollution, be suit for the environmental protection and fire, improve the image of the company.
·Recommend usage: quenching,annealing, forging,welding,melting,shrink fit, hot cooperation etc.
3. Technical Parameters of LSW-30 IGBT Induction Heating Equipment:
| Model | LSW-30 |
| Working Voltage | 380V, 50/60HZ |
| Max input power | 30kw |
| Oscillation frequency | 25-40KHZ |
| Duty cycle | 100% |
| Cooling water flow | 25L/Min,0.15-0.2MPa |
| Weight | 48kg |
| Dimension (L*W*H ) | 690*290*600mm |
| Material | stainless steel |
| Color | support customized |
| Usage | metal heating, brazing,melting etc |
4. Main Features of induction heating equipment:
(1) High efficiency: Metal can be heated to its desired temperature, even its melting point, instantly.
(2) Energy saving: The induction heating machine adopts IGBT from Siemens & LC series circuit design, saving energy up to 15%-30%.
(3) Low cost: The heating time is short, compared to other heating methods, significantly reducing the amount of metal loss.
(4) Easy for installation: Following the user manual, even non-professional persons can install the induction heating machine easily.
(5) Stable operation: complete protection, make customers have nothing to worry about.
(6) No harm to the environment: The induction heating machine uses electricity, producing little waste gas and water.
