|Type:||Induction Quenching Equipment||Voltage:||380V|
|Rated Duty Cycle:||100%||Dimension:||550*650*1260mm|
induction hardening machine,
induction quenching equipment

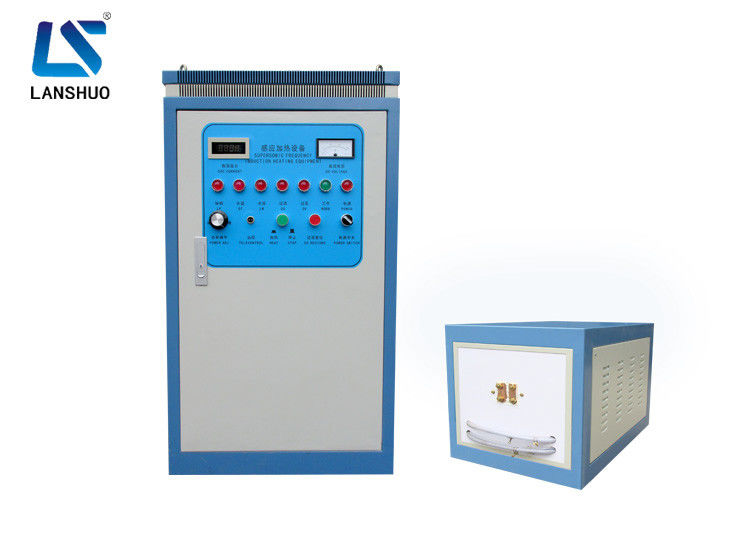

1. Induction Quenching Machine Brief Introduction :
Our high frequency induction welding machine adopts IGBT series and parallel induction heating technology as the core. This is a form of brazing that uses electromagnetic induction to heat the work piece, which makes the brazing filler metals' surface temperature rise rapidly till melting, connecting finally.
1. It adopts the most advanced IGBT frequency conversion control technologies to ensure the high efficiency and maximum output power.
2. It has the constant current and power control function, which can significantly optimize metal heating process, realize the high efficient and fast heating and bring into play the superior performance of the products.
3. It has the function of three-stage time setting represented by heating-heat preservation-cooling. Furthermore, the power for heating and heat preservation is available for independent regulation, which can facilitate the heating and heat preservation, which is applicable to places requiring bulking and repeated heating.
4. A maximum ten types fault protection and display of over-current, over-voltage, water shortageand phase missing can provide higher reliability and durability.
5. It is safe and reliable, and requires no equipments of ten thousand voltage, and thus can ensure the safe operation.
6. The comprehensive full load design is available for 24-hour continuous operation.
7. It is available for ultraviolet temperature detection, which can realize the automatic control of temperature, improve the heating performance and simplify the manual operation.
2. Technical Parameters of LSW-50 Induction Quenching Equipment:
|Working Voltage||380V, 50/60HZ|
|Max input power||50kw|
|Cooling water flow||32L/Min,0.1MPa|
|Dimension (L*W*H )||550*650*1260mm|
|Usage||metal heating, brazing,melting etc|
3. Main characteristics of LSW-50 Induction Quenching Equipment:
(1) High efficiency: Metal can be heated to its desired temperature, even its melting point, instantly.
(2) Energy saving: The induction brazing machine adopts IGBT from Siemens & LC series circuit design, saving energy up to 15%-30%.
(3) Low cost: The heating time is short, compared to other heating methods, significantly reducing the amount of metal loss.
(4) Easy for installation: Following the user manual, even non-professional persons can install the induction brazing machine easily.
(5) Stable operation: complete protection, make customers have nothing to worry about.
(6) No harm to the environment: The induction brazing machine uses electricity, producing little waste gas and water.
4. Induction Quenching Equipment Application:
