High Frequency Quenching 160kw Induction Heating Device
  • High Frequency Quenching 160kw Induction Heating Device
  • High Frequency Quenching 160kw Induction Heating Device

High Frequency Quenching 160kw Induction Heating Device

Place of Origin China
Brand Name Lanshuo
Certification CE
Model Number LSW-160
Product Details
Induction Heating Machine
Working Voltage:
380V, 50/60HZ
Max Input Current:
Max Input Power:
Oscillation Frequency:
Duty Cycle:
Cooling Water Flow:
600*480*1360mm / 800*500*580mm
High Light:

induction heating furnace


induction heating unit

Payment & Shipping Terms
Minimum Order Quantity
1 set
Packaging Details
wooden boxes
Delivery Time
5-7 working days after receiving advanced payments
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
2000 sets per year
Product Description

160kw low frequency Easy operation induction heating machine for billet heating

1. Brief introduction of IGBT induction heating machine:

Our high frequency induction heating machine adopts IGBT series and parallel induction heating technology as the core. The induction heating machine heats the work piece to a certain temperature, and then cools it rapidly to change its machine structure to achieve some special mechanic properties.

1), IGBT inversion technology based LC series circuit .
2), Phase locking looping technology and soft switch ensure good reliability and realize power and frequency tracking automatically.
3), Diode rectifier cause high power factor more than 0.95
4), Power can be instantly turned on or shut off with working in 100% load
5), Perfect protective circuit and cooling system designed.
6), Low energy consumption: converts up to 97.5% above of the expended energy into useful heat. Energy saving 15%-30% compared with SCR induction heating machine.
7), Safety Operating and easy installation.


2. Technical Parameters of LSW-160 IGBT induction heating machine:


Model LSW-160
Working Voltage 380V, 50/60HZ
Max input power 160kw
Oscillation frequency 18-23KHZ
Duty cycle 100%
Cooling water flow 50L/Min,0.2MPa
Weight 260kg
Dimension (L*W*H ) 600*480*1360mm / 800*500*580mm
Material stainless steel
Color support customized
Usage metal heating,quenching etc

3. Main Features of IGBT induction heating machine:

1. Germany Siemens IGBT modules, save energy 30% than traditional high frequency tube heater.
2. Protect full.Over current.over voltage,lack of phase,water shortage, etc. more than ten alarm lamps.
3. Heating fast.Within1 second ,temperature rise up to 1200 degree,even higher.
4. No need contacting work pieces, safety, safe and reliable.
5. Environmental friendly,no pollution, good for worker's health
6. Easy to change induction coils, for heating different shape of steel billet
7. Easy to install and operate.
8. Low maintenance cost

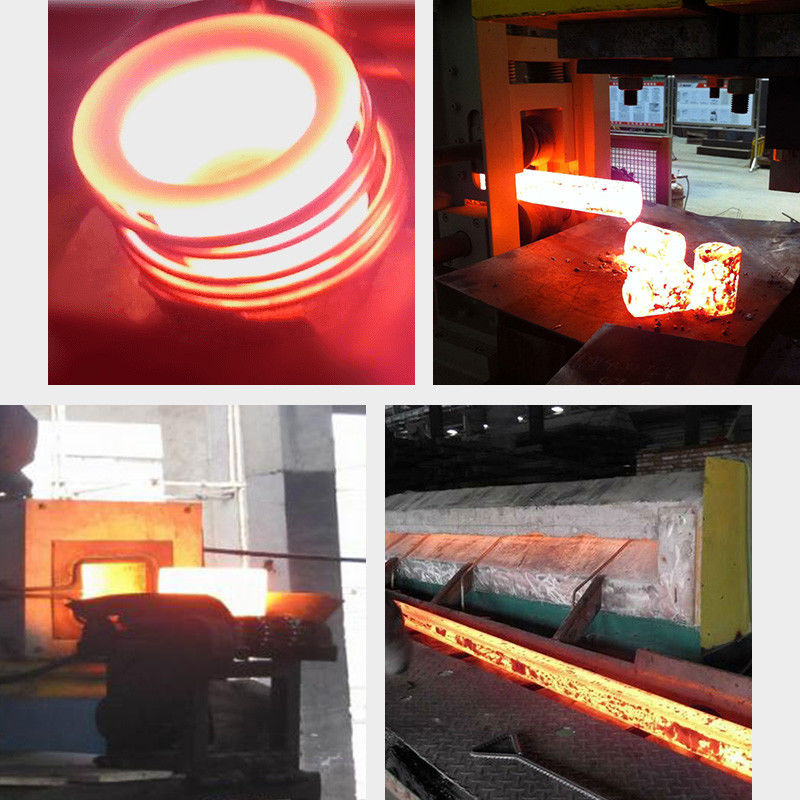

4. Applications of IGBT induction heating machine:


First, high frequency induction heating for heat treatment/hardening/quenching
1. Various auto parts motorcycle accessories, high-frequency quenching heat treatment, such as: crankshaft, connecting rod, piston pin, camshaft, valve, various gears in the gearbox, various forks, various spline shafts, transmission shafts , Various small shaft crank pins, various rocker arms, rocker shafts and other high frequency quenching heat treatment.
2, hardware tools high-frequency quenching heat treatment, such as vise, hammer, pliers, wrenches.
3. Hydraulic components such as plungers of plunger pumps, rotors of rotor pumps, reversing shafts on various valves, gears of gear pumps, etc.
4. High-frequency quenching heat treatment of various power tool gear shafts.
5, a variety of woodworking tools, such as: axe, planer and other heat treatment.

Second, induction heating for diathermy forging industry
1. steel plate heating, bending forming.
2. standard parts, through-heat forming of fasteners.
3. hardware tools diathermy, such as pliers, wrenches and other heating and thermoforming.
4. The tapping of the taper shank of the prospecting rod.
5. steel pipe through thermoforming such as elbows.

High Frequency Quenching 160kw Induction Heating Device 0

High Frequency Quenching 160kw Induction Heating Device 1


High Frequency Quenching 160kw Induction Heating Device 2
