380V 23KHZ Hole Hardening Induction Heating Machine

China Zhengzhou Lanshuo Electronics Co., Ltd certification
China Zhengzhou Lanshuo Electronics Co., Ltd certification
машина индукционного нагрева хороша, я доволен этим.

—— Жүгнээ Цогбадрах

Je suis satisfait du four de fusion par induction, j'espère coopérer à l'avenir.

—— amine ouarroch

I'm Online Chat Now

380V 23KHZ Hole Hardening Induction Heating Machine

380V 23KHZ Hole Hardening Induction Heating Machine
380V 23KHZ Hole Hardening Induction Heating Machine
video play

Large Image :  380V 23KHZ Hole Hardening Induction Heating Machine

Product Details:
Place of Origin: China
Brand Name: Lanshuo
Certification: CE
Model Number: LSW-160
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: wooden boxes
Delivery Time: 5-7 working days after receiving advanced payments
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 2000 sets per year
Detailed Product Description
Type: Induction Heating Machine Working Voltage: 380V, 50/60HZ
Max Input Current: 240A Max Input Power: 160kw
Oscillation Frequency: 18-23KHZ Duty Cycle: 100%
Cooling Water Flow: 50L/Min,0.2MPa Weight: 260kg
Dimension: 600*480*1360mm / 800*500*580mm Color: Optional
High Light:

23KHZ Induction Heating Machine

,

Hole Hardening Induction heating machine

,

380V Induction Heating Machine

160kw IGBT High Frequency Metal Workpiece Inner Hole Hardening Induction heating machine

1. Technical Parameters of LSW-160 IGBT induction heating machine:

Model LSW-160
Working Voltage 380V, 50/60HZ
Max input power 160kw
Oscillation frequency 18-23KHZ
Duty cycle 100%
Cooling water flow 50L/Min,0.2MPa
Weight 260kg
Dimension (L*W*H ) 600*480*1360mm / 800*500*580mm
Material stainless steel
Color support customized
Usage metal heating,quenching etc

380V 23KHZ Hole Hardening Induction Heating Machine 0380V 23KHZ Hole Hardening Induction Heating Machine 1

2. Main Features of IGBT induction heating machine:

The induction heating power supply converts AC line power to a higher frequency alternating current, delivers it to a work coil and creates an electromagnetic field within the coil. Your work piece is placed in that field which induces eddy currents in the workpiece. The friction from these currents generates precise, clean, non-contact heat. A water cooling system is generally required to cool the work coil and induction system.

Induction Heating Has Higher Efficiency and Produces More in Less Time
Delivering the highest quality parts for the least expense in the least time is accomplished with an efficient process, in which the input elements of materials and energy are tightly and precisely controlled. Induction heating’s targeted application of heat to the part or an area of the part, as well as repeatability, provides the most uniform results for the least cost.

3. Applications of IGBT induction heating machine:

It does not contact the work piece, and the heat is only produced by the induced current transmitted through the work piece. The material used to make the work piece can be a metal such as copper, aluminum, steel, or brass. It can also be a semiconductor such as graphite, carbon or silicon carbide.

· Heat treatment for various hardware and tools, such as plier, wrench, hammer, ax,screwing
tools and shear
· Heat treatment for various automobile and motorcycle fittings, such as crankshaft,connecting
rod, piston pin, chain wheel, aluminum wheel, valve,rock arm shaft,semi drive shaft,
small shaft and fork.
· Heat treatment for various electric tools, such as gear and axes.
· Heat treatment for machine tools,such as lathe deck and guide rail.
· Hardening for various hardware metal parts and machined parts, such as shaft,gear
chain wheel, cam,chuck and clamp etc.
· Heating for hardware molds, such as small-size mold,
mold accessory and inner hole of mold.
· Annealing of various stainless steel products, such as stainless steel basin,
annealed and extruded can, annealed folded edge, annealed sink, stainless
steel tube, tableware and cup.
· Forging of various other metal work pieces, such as round steel, sheet/plate, pipe and others

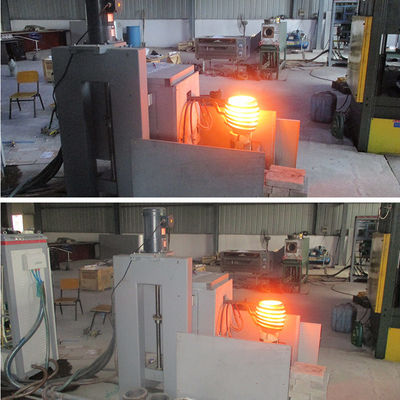

380V 23KHZ Hole Hardening Induction Heating Machine 2

Induction heating is considered a safer process
Any heating process carries a risk of operator contact with the heated materials. A technology like induction heating that limits the extent of operator-contacted surfaces does reduce the overall risk. If heating can be limited to only the part and further limited to a zone of the part, safety is improved even more. Compared to a flame or hand-held heating operation, each induction heat process cycle is identical, and the process requires no running adjustment. Therefore once established and proven, an induction heating process does not require highly-trained personnel to operate.
