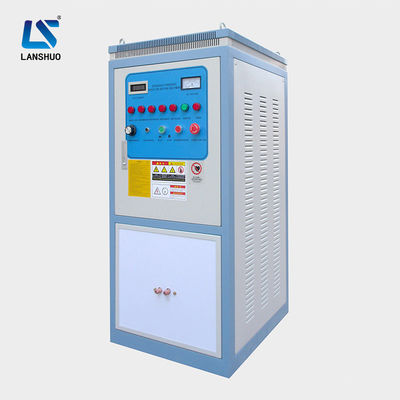

Electric High Frequency Tools Induction Quenching Machine Heat Treating Equipment

China Zhengzhou Lanshuo Electronics Co., Ltd certification
China Zhengzhou Lanshuo Electronics Co., Ltd certification
машина индукционного нагрева хороша, я доволен этим.

—— Жүгнээ Цогбадрах

Je suis satisfait du four de fusion par induction, j'espère coopérer à l'avenir.

—— amine ouarroch

I'm Online Chat Now

Electric High Frequency Tools Induction Quenching Machine Heat Treating Equipment

Electric High Frequency Tools Induction Quenching Machine Heat Treating Equipment
Electric High Frequency Tools Induction Quenching Machine Heat Treating Equipment
video play

Large Image :  Electric High Frequency Tools Induction Quenching Machine Heat Treating Equipment

Product Details:
Place of Origin: China
Brand Name: Lanshuo
Certification: CE ISO
Model Number: LSW-50
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 1000-1600 / set
Packaging Details: 1.Standard wooden case, plywood case, and custormized case; 2. Inner packing: packing plastic film and foam in case of friction dampness and shake; 3.Accessories: induction coil 1, foot pedal 1, installing and operating instruction 1 and custormized del
Delivery Time: 5-7 working days after receiving advanced payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 2000 set per year
Detailed Product Description
Type: Induction Quenching Equipment Voltage: 380V
Current: 75A Rated Capacity: 50kw
Rated Duty Cycle: 100% Dimension: 550*650*1260mm
Weight: 120kg Usage: Brazing, Welding,heating
Power: 50kw Color: Optional
High Light:

50kw Induction Quenching Machine

,

High Frequency Induction Quenching Machine

,

50kw Heat Treating Equipment

Electric high frequency tools induction heat treating quenching equipment

1. Electric Induction Hardening Machine Feature :

1. Adopt advanced high quality MOSFET pipe and advanced frequency conversion technology to improve performance and quality of the device.
2. Heating, heat preservation current, time can be set and adjusted.
3. Simple and convenient installation, can work after connecting to 220v power, water inlet and water out-let.No need for professional installation.
4. Small shape light weight, simple operation can be learned with several minutes.
5. Contain the multilevel protection and display such as over voltage, over current, overheat and underwater.
6. Separate unit, can protect main machine in bad environment as the main unit and auxiliary unit is divided.

2. Technical Parameters of LSW-50 Induction Quenching Equipment:

Model LSW-50
Working Voltage 380V, 50/60HZ
Max input power 50kw
Oscillation frequency 18-35KHZ
Duty cycle 100%
Cooling water flow 32L/Min,0.1MPa
Weight 120kg
Dimension (L*W*H ) 550*650*1260mm
Material stainless steel
Color support customized
Usage metal heating, brazing,melting etc

3. Main characteristics of LSW-50 Induction Quenching Equipment:

(1) High efficiency: Metal can be heated to its desired temperature, even its melting point, instantly.
(2) Energy saving: The induction brazing machine adopts IGBT from Siemens & LC series circuit design, saving energy up to 15%-30%.
(3) Low cost: The heating time is short, compared to other heating methods, significantly reducing the amount of metal loss.
(4) Easy for installation: Following the user manual, even non-professional persons can install the induction brazing machine easily.
(5) Stable operation: complete protection, make customers have nothing to worry about.
(6) No harm to the environment: The induction brazing machine uses electricity, producing little waste gas and water.

4. Induction Quenching Equipment Application:

Electric High Frequency Tools Induction Quenching Machine Heat Treating Equipment 0

Welding:

1.Standard parts, fastener parts heating.
2.drill steel , drill tool are tempering,forging, extrusion , etc.
3.Diamond saw blades,rill tools'welding.
4.Drill bit,coal drill bit,pick bit's welding.
5.Braze lathe tool,milling cutter and all kinds of wooden cutter, braze high speed steel saw blades.

Electric High Frequency Tools Induction Quenching Machine Heat Treating Equipment 1

Hardening:
1.Hardening parts of automobile,motorbike,mold,agricultural machinery.
2.Hardening machinery parts,such as: all kinds of gear wheel,chain wheel,kinds of axis,pin.
3.Hardening the industrial of machine tool,such as:bed guide way of machine tool.
4.Heat treatment pilers,spnner,screwdriver,drill,axe.
5.Hardening pin,piston ring ,spring pin,valve, shifting fork.
6.All kinds of track spiker.

Electric High Frequency Tools Induction Quenching Machine Heat Treating Equipment 2

Forging:
Forging dies, open die forging equipment: extrusion, rotational moulding, cut off, bendingtorsion shaping
equipment: machinery press, automatic forging press, hydraulic press, shaping equipment, forging hammer,
forging machine, cut machine, bend correction machine, riveting machine, forging use industrial furnace and
energy conservation technology, forging mold and repair technology equipment.
