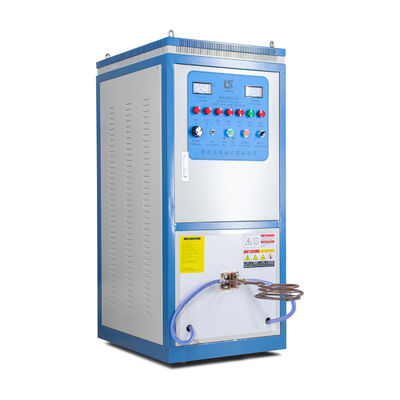

Electric Shaft 50kw Induction Hardening Machine Metal Quenching Heat Treatment

Electric Shaft 50kw Induction Hardening Machine Metal Quenching Heat Treatment
Electric Shaft 50kw Induction Hardening Machine Metal Quenching Heat Treatment
video play

Large Image :  Electric Shaft 50kw Induction Hardening Machine Metal Quenching Heat Treatment

Product Details:
Place of Origin: China
Brand Name: Lanshuo
Certification: CE ISO
Model Number: LSW-50
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 1000-1600 / set
Packaging Details: 1.Standard wooden case, plywood case, and custormized case; 2. Inner packing: packing plastic film and foam in case of friction dampness and shake; 3.Accessories: induction coil 1, foot pedal 1, installing and operating instruction 1 and custormized del
Delivery Time: 5-7 working days after receiving advanced payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 2000 set per year
Detailed Product Description
Type: Induction Quenching Equipment Voltage: 380V
Current: 75A Rated Capacity: 50kw
Rated Duty Cycle: 100% Dimension: 550*650*1260mm
Weight: 120kg Usage: Brazing, Welding,heating
Power: 50kw Color: Optional
High Light:

50kw Induction Hardening Machine

,

Electric Shaft Induction Hardening Machine

,

50kw induction hardening equipment

Electric Shaft 50kw Metal quenching heat treatment Induction Hardening Machine

1. Feature of high frequency Induction Quenching Machine :

1. IGBT inversion technology based LC series circuit .
2. phase locking looping technology and soft switch ensure good reliability, realize power and frequency tracking automatically.
3. diode rectifier cause high power factor more than 0.95
4. working continuously with 100% duty cycle, power can be instantly turned on or shut off.
5. perfect protective circuit and cooling system design, which ensure the good reliability of machine.
6. low energy consumption: converts up to 97.5% above of the expended energy into useful heat. energy saving 15%-30% compared with SCR induction heating machine.
7. environment friendly, clean, non-polluting process which will help protect the environment, improves working conditions for your employees by eliminating smoke, waste heat, noxious emissions and loud noise.
8. operating and installation easily and safely
9. can subsititue traditional heating methods.

2. Technical Parameters of LSW-50 Induction Quenching Equipment:

Model LSW-50
Working Voltage 380V, 50/60HZ
Max input power 50kw
Oscillation frequency 18-35KHZ
Duty cycle 100%
Cooling water flow 32L/Min,0.1MPa
Weight 120kg
Dimension (L*W*H ) 550*650*1260mm
Material stainless steel
Color support customized
Usage metal heating, brazing,melting etc

Electric Shaft 50kw Induction Hardening Machine Metal Quenching Heat Treatment 0

3. Main characteristics of LSW-50 Induction Quenching Equipment:

(1) High efficiency: Metal can be heated to its desired temperature, even its melting point, instantly.
(2) Energy saving: The induction brazing machine adopts IGBT from Siemens & LC series circuit design, saving energy up to 15%-30%.
(3) Low cost: The heating time is short, compared to other heating methods, significantly reducing the amount of metal loss.
(4) Easy for installation: Following the user manual, even non-professional persons can install the induction brazing machine easily.
(5) Stable operation: complete protection, make customers have nothing to worry about.
(6) No harm to the environment: The induction brazing machine uses electricity, producing little waste gas and water.

4. Induction Quenching Equipment Application:

Electric Shaft 50kw Induction Hardening Machine Metal Quenching Heat Treatment 1

Electric Shaft 50kw Induction Hardening Machine Metal Quenching Heat Treatment 2

5. How Does Induction Heating Work?
When a magnetic field changes near a metal or other conductive object, a flow of current (known as an eddy current) will be induced in the material and will generate heat. The heat generated is proportional to the current squared multiplied by the resistance of the material. The effects of induction are used in transformers for converting voltages in all sorts of appliances. Most transformers have a metallic core and will therefore have eddy currents induced into them when in use. Transformer designers use different techniques to prevent this as the heating is just wasted energy. In this project we will directly make use of this heating effect and try to maximise the heating effect produced by the eddy currents.
