High Frequency Round Bar End Hot Forging Machine Induction Heating 160kw

High Frequency Round Bar End Hot Forging Machine Induction Heating 160kw
High Frequency Round Bar End Hot Forging Machine Induction Heating 160kw
video play

Large Image :  High Frequency Round Bar End Hot Forging Machine Induction Heating 160kw

Product Details:
Place of Origin: China
Brand Name: Lanshuo
Certification: CE ISO
Model Number: LSW-160
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: wooden boxes
Delivery Time: 5-7 working days after receiving advanced payments
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 2000 sets per year
Detailed Product Description
Type: Induction Heating Machine Working Voltage: 380V, 50/60HZ
Max Input Current: 240A Max Input Power: 160kw
Oscillation Frequency: 18-23KHZ Duty Cycle: 100%
Cooling Water Flow: 50L/Min,0.2MPa Weight: 260kg
Dimension: 600*480*1360mm / 800*500*580mm Color: Optional
High Light:

23KHZ Hot Forging Machine


160kw Hot Forging Machine


Round Bar End Induction Heating Furnace

160kw high frequency Induction Heating Round Bar End Hot Forging Machine

1. high frequency induction heating machine feature:

1), IGBT inversion technology based LC series circuit .
2), Phase locking looping technology and soft switch ensure good reliability and realize power and frequency tracking automatically.
3), Diode rectifier cause high power factor more than 0.95
4), Power can be instantly turned on or shut off with working in 100% load
5), Perfect protective circuit and cooling system designed.
6), Low energy consumption: converts up to 97.5% above of the expended energy into useful heat. Energy saving 15%-30% compared with SCR induction heating machine.
7), Safety Operating and easy installation.

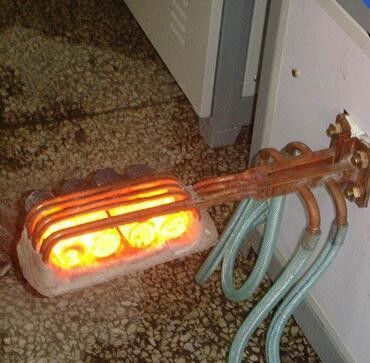

High Frequency Round Bar End Hot Forging Machine Induction Heating 160kw 0

2. Appliaction of induction heating machine:

1. Metal Hot Forming, Hot Forging, Hot Upsetting, Hot Pressing
Standard components hot forging, bolts & nuts hot forging, fasteners hot forming, automobile and motorcycle parts hot pressing, metallic tools hot forming.
2. Heat Penetration
Bar materials hot forging, round steels forge heating, square steels hot forging, copper bar hot punching.
3. Metals Continues Hot Forging
Hot forging of embryo gear parts, Gears hot forging, axle shaft hot forging, connecting rod continues hot forging, Bearings precision forging.
4. Heat distortion
Pipes Heat distortion, pipe bending, stainless pipe Heat distortion, copper rod Heat distortion, steel billets heat distortion, steel pipe heat bending.
5. Hot Rolling Heating
Steel rod hot rolling, steel billet hot rolling, copper rod hot rolling, square steels hot rolling, bar hot rolling, hot coating.
6. Other forge heating applications
Such as hot extrusion, hot squeezing, partial heating, heating before hot cutting, hot fitting, thermal refining.
7. Suitable for workpiece with various shape and different diameter.
8. Customized forging production solution

3. Principle of IGBT induction heating machine:

High frequency induction heating equipment adopts electromagnetic induction principle, making the metal material generate induced current in the circle of the alternating magnetic field to melt metal material. It can also penetrate non-metallic materials, heating the metal parts or all of them quickly.

High Frequency Round Bar End Hot Forging Machine Induction Heating 160kw 1

4. Technical Parameters of LSW-160 IGBT induction heating machine:

Model LSW-160
Working Voltage 380V, 50/60HZ
Max input power 160kw
Oscillation frequency 18-23KHZ
Duty cycle 100%
Cooling water flow 50L/Min,0.2MPa
Weight 260kg
Dimension (L*W*H ) 600*480*1360mm / 800*500*580mm
Material stainless steel
Color support customized
Usage metal heating,quenching etc

5. Advantage of high frequency induction heating machine:

Adopt imported high-quality IGBT solid power module and our second generation frequency conversion technology, has distinct cooling system to ensure that the device can continually work with maximal power with 24 hours which improve the performance quality of the device.
Constant current and power control function, can improve the heating efficiency and save energy.
Simple and convinient installation can work after connecting to 380V power, water inlet, water outlet,.Professional installation is not required.
Has timing function, can individually adjust heating time, heat-preservation time, digit setting, heating current, heat-preservation current.
This device has self-diagnosis alarming system for failure and multi-level protection and display for overvoltage, overcurent, over heat, underwater and phase lack.
