Place of Origin | China |
Brand Name | Lanshuo |
Certification | CE ISO |
Model Number | LSW-120 |

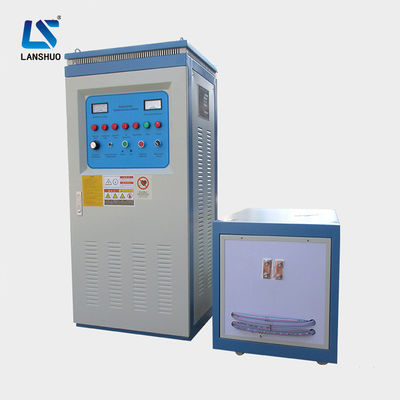

High frequency shaft gear stainless steel metal sheet induction quenching annealing machine
1. Application of induction quenching machine?
• Heat treatment for various hardware and tools, such as plier, wrench, hammer, ax,screwing tools and shear
• Heat treatment for various automobile and motorcycle fittings, such as crankshaft,connecting rod, piston pin, chain wheel, aluminum wheel, valve, rock arm shaft,semi drive shaft, small shaft and fork.
• Heat treatment for various electric tools, such as gear and axes.
• Heat treatment for machine tools,such as lathe deck and guide rail.
• Hardening for various hardware metal parts and machined parts, such as shaft,gear chain wheel, cam,chuck and clamp etc.
• Heating for hardware molds, such as small-size mold, mold accessory and inner hole of mold.
• Annealing of various stainless steel products, such as stainless steel basin,annealed and extruded can, annealed folded edge, annealed sink, stainless steel tube, tableware and cup.
2. Technical Parameter of High Frequency Induction Hardening Quenching Machine:
Working voltage
|
380V/50HZ
|
Voltage range
|
340V-420V
|
DC power
|
120KW
|
DC current
|
130A
|
Oscillation frequency
|
18-35KHZ
|
Efficiency
|
90%
|
Duty cycle
|
100%
|
Weight
|
230KG
|
Dimension
|
600*480*1360mm,800*500*580mm
|
Cooling water flow
|
0.2MPa-45L/Min,0.2MPa-55L/Min |
3. Induction Quenching Hardening Machine Feature:
Safety Protector
* Overvoltage protection: machine shuts down when input voltage is over 245V. Overvoltage light will turn on and buzzer will sound continuously. Alarm and light shut off automatically when voltage goes below 245V.
* Overheat protection: if sensor detects heat radiator temperature is over 55°C, machine will shut down, overheat light will turn on and buzzer will sound continuously. Increase water pressure or lower water temperature until alarm goes off itself.
* Overcurrent/malfunction protections: machine will shut down, indicator light turned on and buzzer sounds continuously if one of these situations occurs:
* One of the machine parts becomes overheatedInterfering signal detectedShort circuit between work pieces and induction coils Machine malfunctionsInduction coils touching each otherInput voltage is too low
* Low water pressure protection: if water pressure goes below 29 PSI, machine will shut down, water protection light will turn on and buzzer will sound continuously.
Heat treatment(surface hardening/quenching):
It changes the metal hardness by heating work-pieces and other treatment: such as local or overall quenching, annealing, tempering and heat penetration of various metals;
High-frequency heat treatment equipment, high frequency induction heating machine, high frequency induction brazing machine, with multiple protection functions such as over-current, over-voltage, overheating etc, simple operation, convenient installation. It is suitable for various occasions that heat metal, the full name is " high frequency induction heating equipment", which is applied for all kinds of metal welding, melting, forging, heat treatment etc.
It is the most ideal equipment of metal processing for major, small and medium-sized enterprises currently.
