| Model: | LCN-1500 | Type: | Induction Quenching Machine Tool |
|---|---|---|---|
| Max Lengths Of The Clamping Part: | 1250mm | Max Length Of Quenching Parts: | 1200mm |
| The Largest Diameter Quenching Parts: | 600mm | The Largest Total Quenching Parts: | 150kg |
| Spindle Rotation Speed: | 0-200 Rps | Workpieces Moving Speed: | 1-60 Mm/s |
| Mobile Positioning Accuracy: | ±0.1 Mm | Color: | Optional |
| High Light: | IGBT CNC Quenching Machine,50kw Induction Hardening Machine,IGBT Induction Quenching Machine |
||

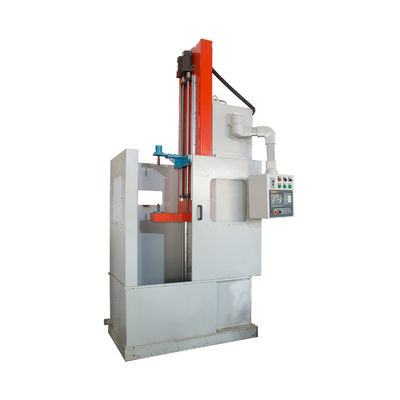

1. Brief introduction of cnc quenching machine tool:
Induction hardening machine tools are used together with high and medium or super-audio frequency heating devices. For the purpose of conducting heat treatment of work pieces based on their own specificity the hardening equipment falls into: Hardening type, annealing type, tempering type, quenching type, welding and thermoforming type etc.
Hardening machine tools are generally classified as standard and special, the traditional ways are mechanic, hydraulic and compound. The control parts adopt PC control system, ple CNC and PLC system. Which ensure reliable program running, accurate position, easy operation, high automation. It can improve significantly the hardening quality.
2. Main technical parameters of LSN series CNC induction quenching machine tools
|
Model
|
LSN-2000
|
LSN-1500
|
LSN-1000
|
LSN-600
|
|
Max lengths of the clamping parts(mm)
|
2050
|
1250
|
1050
|
650
|
|
Max length of quenching parts(mm)
|
2000
|
1200
|
1000
|
600
|
|
The largest diameter quenching parts(mm)
|
600
|
600
|
600
|
600
|
|
The largest total quenching parts (Kg)
|
150
|
150
|
150
|
150
|
|
Spindle rotation speed (rps)
|
0-200
|
0-200
|
0-200
|
0-200
|
|
Workpieces moving speed ( mm/s)
|
1-60
|
1-60
|
1-60
|
1-60
|
|
Mobile positioning accuracy (mm)
|
±0.1
|
±0.1
|
±0.1
|
±0.1
|
3. Advantages of Our CNC Hardening Machine Tool:
1. The machine adopts IGBT modules (Siemens, Germany), high efficiency, energy saving.
2. Environmental. Almost no oxide layer, produced no exhaust, no waste-water is generated.
3. Heating fast and uniform.
4. A unique cooling circulation system, ensure that the equipment 24 hours of continuous work.
5. Easy installation, simple operation.
6. Safe and reliable. No high voltage, very safe for operating people.
7. Machine power can be adjust step-less.
8. It has complete self-protect functions: such as many types of alarm lamps: over-current, over-voltage, over hot, water shortage etc, can also control and protect itself.
4. Applications of Our CNC Hardening Machine Tool:
Shaft: Single heating spray hardening, segmental single heating spray hardening, continuous heating spray hardening, segmental continuous heating spray hardening.
Gear: Overall single heating spray hardening, single tooth single heating spray hardening, single tooth continuous heating spray hardening.
Disc-type workpiece:Overall single heating spray hardening, circumferential surface continuous heating spray hardening.
5. Main features of the induction quenching machine
1. Lathe: adopt welded structure with good rust-proof functions.
2. Top adjustment parts: adopt electric adjustment to realize clamping of different length work pieces.
3. Work table system: adopt ball screw and servo motor to drive, light driving, high guide precision and accurate positioning.
4. Main shaft rotation system: adopt variable frequency regulating to realize parts rotation speed continuous adjusted.
5. Electric control part: the machine tool has power-loosing protection function. Safe and reliable.
6. Frame: made by thick steel plates, with window and sliding doors, prevent water splash, easy to load parts and monitor hardening process.
5. Package of induction Quenching Machine:
As for packaging:
1. Machine is always wrapped with a film layer, and then packed with a paper box.
2. Then put the wrapped machine into a wooden case(standard exporting case), and wrap the machine with foam around.
As for shipping:
1. If you have a shipper in China around, we can send the machine directly to him freely.
2. If you want us to send the machine to you directly, we can send the machine to any main port of China promptly.
