Easy For Installation Induction Heating Forge Furnace Machine Stainless Steel
  • Easy For Installation Induction Heating Forge Furnace Machine Stainless Steel
  • Easy For Installation Induction Heating Forge Furnace Machine Stainless Steel

Easy For Installation Induction Heating Forge Furnace Machine Stainless Steel

Place of Origin China
Brand Name Lanshuo
Certification CE ISO
Model Number LSW-120
Product Details
Type:
Induction Heating Machine
Working Voltage:
380V, 50/60HZ
Max Input Current:
180A
Max Input Power:
120kw
Oscillation Frequency:
18-35KHZ
Duty Cycle:
100%
Cooling Water Flow:
45L/Min,0.2MPa
Weight:
230kg
Dimension:
600*480*1360mm / 800*500*580mm
Color:
Optional
High Light:

stainless steel Induction Heating Forge machine

,

Easy for installation Induction Heating Forge machine

,

Induction Heating Forge Furnace Machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
USD 1000-20000 / set
Packaging Details
wooden boxes
Delivery Time
5-7 working days after receiving advanced payments
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
2000 sets per year
Product Description

High Frequency Induction Heating Forge Furnace Machine Suppliers

1. Principle of high frequency induction heating machine::

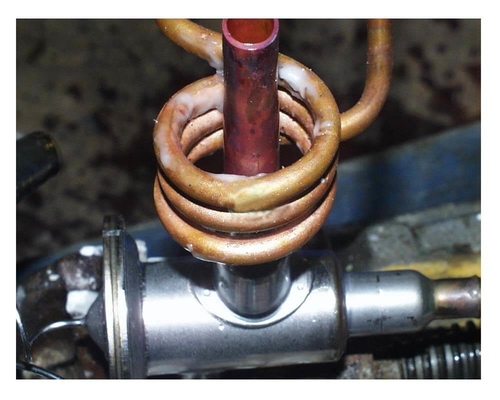

The workpiece is placed in the inductor, which is generally a hollow copper tube that inputs intermediate frequency or high frequency alternating current. The alternating magnetic field generates an induced current of the same frequency in the workpiece. The distribution of this induced current in the workpiece is uneven, it is strong on the surface, but weak in the interior, and it is close to 0 in the center. This skin effect is used. , the surface of the workpiece can be heated rapidly, and the surface temperature rises to 800-1000ºC in a few seconds, while the temperature of the core rises very little.

2. Technical Parameters of LSW-120 IGBT induction heating machine:

Model LSW-120
Working Voltage 380V, 50/60HZ
Max input power 120kw
Oscillation frequency 18-35KHZ
Duty cycle 100%
Cooling water flow 45L/Min,0.2MPa
Weight 230kg
Dimension (L*W*H ) 600*480*1360mm / 800*500*580mm
Material stainless steel
Color support customized
Usage metal heating,quenching etc

3. Applications of IGBT induction heating machine:

diathermy (forging)
(1) Round steel categories:
A. bolts, nuts, drill head hot forge, the car U-bolts, anchor bolt, connecting rod, non-standard parts processing, conductive rod
B. stainless steel tableware, stainless steel bolts and nuts
C. tools: pliers, bolt cutters, pipe clamp, water pump pliers, pliers, wrenches, ratchet wrenches, masonry chisel,
D. Other: sewing gadgets, jack head, boss chair, shackles, hand rings, flowers Lancashire body, feet kidnapper, tricycle axle, briquettes machine Chong-pin, roll gate axis, articulated manifolds, hot-rolled twist drill, Hot-rolled rebar, hot-rolled woodworking drill, bearing
(2) sheet/plate categories:
A. forged stainless steel cutlery, automotive steel plate.
B. sheet folding: folding iron hand jack, metal folding channel, automotive steel, hot rolled construction steel buckle, automotive leaf spring
C. embossed: Iron Works embossing, embossing motorcycle brake pedal heating, sanitary ware.
D. Forming: bending, upsetting head, punching, flatten, step by step tight angle iron molding, from nails, rasp, sanitary ware
(3) pipe deformation: pipe heat distortion, fire extinguishers stretching, stretching cylinders, fans rose shaped brackets bend, pipe up hole, bicycle fork shrinkage, food machinery punching
(4) other categories:
Electric Vehicle wrist, drill rod, drill bits, copper pieces (communication, air conditioning parts), trains pin, watch cases, railway rail pressure ring.

Easy For Installation Induction Heating Forge Furnace Machine Stainless Steel 0

Easy For Installation Induction Heating Forge Furnace Machine Stainless Steel 1

4. Main Features of IGBT induction heating machine:

(1) High efficiency: Metal can be heated to its desired temperature, even its melting point, instantly.
(2) Energy saving: The induction heating machine adopts IGBT from Siemens & LC series circuit design, saving energy up to 15%-30%.
(3) Low cost: The heating time is short, compared to other heating methods, significantly reducing the amount of metal loss.
(4) Easy for installation: Following the user manual, even non-professional persons can install the induction heating machine easily.
(5) Stable operation: complete protection, make customers have nothing to worry about.
(6) No harm to the environment: The induction heating machine uses electricity, producing little waste gas and water.
