|Type:||Induction Heating Machine||Working Voltage:||380V, 50/60HZ|
|Max Input Current:||45A||Max Input Power:||30kw|
|Oscillation Frequency:||25-40KHZ||Duty Cycle:||100%|
|Cooling Water Flow:||25L/Min,0.15-0.2MPa||Weight:||49kg|
Automatic Control Induction Hardening Heating Equipment,
Round Bar Induction Hardening Heating Machine,
Constant Current Induction heating Forging Equipment

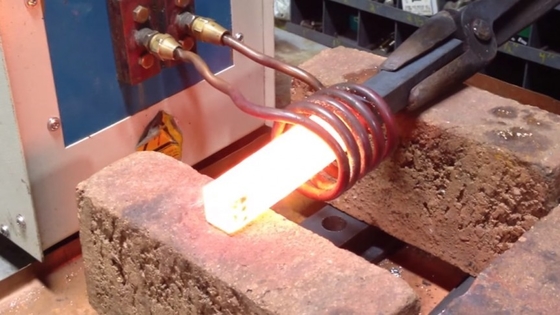

30kw IGBT Portable electric High Frequency Induction forging Heating Machine
1. The outstanding advantages of UHF induction heating equipment are:
1. Adopt Siemens IGBT power device and unique inverter technology from the world famous company, 100% load duration design, 24-hour operation under maximum power, high reliability guarantee.
2. The automatic control type can adjust the heating time, heating power, holding time, holding power and cooling time; greatly improve the quality of heating products and the repeatability of heating, and simplify the operation technology of workers.
3. It is light in weight, small in size and simple in installation. It can be connected to 380V three-phase power supply, water inlet and outlet, and it can be completed in a few minutes.
4. It occupies a very small area and is easy to operate. It can be learned in a few minutes.
5. Especially safe, the output voltage is lower than 36V, avoiding the danger of high voltage electric shock.
6. The heating efficiency is as high as 90% or more, the energy consumption is only 20%-30% of the high frequency of the old electronic tube, almost no electricity is needed in the standby state, and it can work continuously for 24 hours.
7. The sensor can be freely and quickly disassembled and replaced, and the ultra-fast heating greatly reduces the oxidation deformation of the workpiece.
8. A new environmentally friendly product that replaces the heating of dangerous substances such as oxygen, acetylene, and coal, and it is safer and more secure to produce without an open flame.
9. The equipment has complete automatic protection functions such as overcurrent, overvoltage, overtemperature, water shortage, and shortage, and is equipped with a fault self-diagnosis alarm system.
10. The equipment has the control function of constant current and constant power, which greatly optimizes the heating process of metal, realizes efficient and rapid heating, and gives full play to the superior performance of the product.
2. Advantage of Induction Heating Equipment :
·Adopting MOSFGT and IGBT inverting device, tracking frequency automatically
·High frequency, heated quickly, its power consumption is only 20%~30% of electronic tube
induction heating machine and other heating style.
·Security and reliability, the equipments have the secure voltage and it's secure to operate
·Manual, automatic regulating automatically, it can protect itself from over voltage, over
current,lack of water, phase fail, over hot, etc
·It has no openfire, noise and pollution, be suit for the environmental protection and fire, improve the image of the company.
·Recommend usage: quenching,annealing, forging,welding,melting,shrink fit, hot cooperation etc.
3. Technical Parameters of LSW-30 IGBT Induction Heating Equipment:
|Working Voltage||380V, 50/60HZ|
|Max input power||30kw|
|Cooling water flow||25L/Min,0.15-0.2MPa|
|Dimension (L*W*H )||690*290*600mm|
|Usage||metal heating, brazing,melting etc|
4. Main Features of induction heating equipment:
(1) High efficiency: Metal can be heated to its desired temperature, even its melting point, instantly.
(2) Energy saving: The induction heating machine adopts IGBT from Siemens & LC series circuit design, saving energy up to 15%-30%.
(3) Low cost: The heating time is short, compared to other heating methods, significantly reducing the amount of metal loss.
(4) Easy for installation: Following the user manual, even non-professional persons can install the induction heating machine easily.
(5) Stable operation: complete protection, make customers have nothing to worry about.
(6) No harm to the environment: The induction heating machine uses electricity, producing little waste gas and water.
This series machines widely used in small metal material’s heating.:
1. For welding the diamond segments ,grinding wheel;
2. Environment friendly design , voltage instability;
3. The machine can be automatic temperature control to realize with equipment;
4. High power ,High heating Speed, widely application range that can use various diamond tools;
5. Imported key parts ,lowest hitch, Small in size and taken easily.
