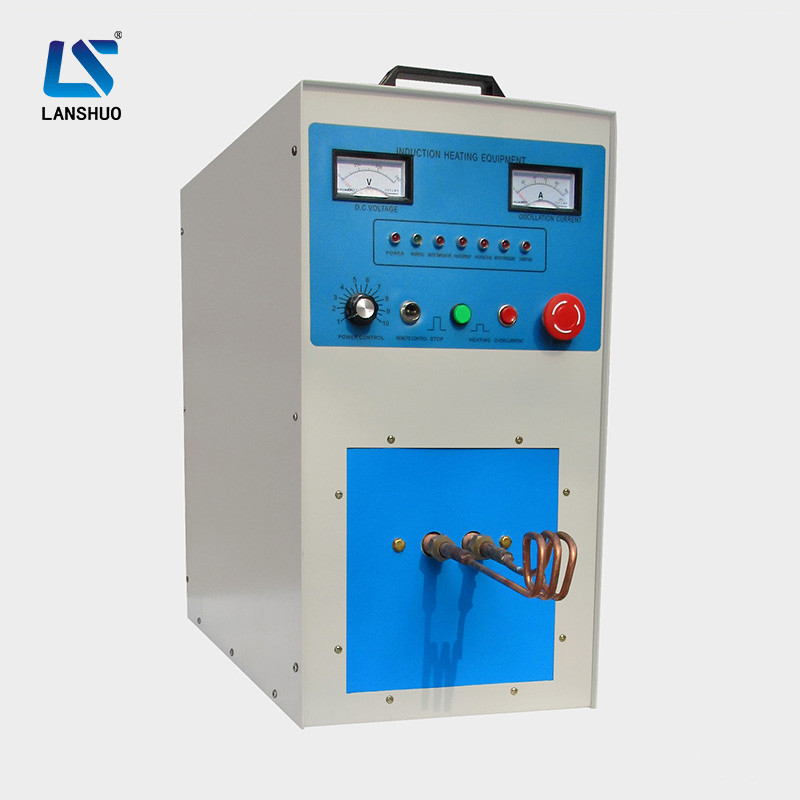

IGBT Portable Induction Heating Machine 30kw High Frequency Device

China Zhengzhou Lanshuo Electronics Co., Ltd certification
China Zhengzhou Lanshuo Electronics Co., Ltd certification
машина индукционного нагрева хороша, я доволен этим.

—— Жүгнээ Цогбадрах

Je suis satisfait du four de fusion par induction, j'espère coopérer à l'avenir.

—— amine ouarroch

I'm Online Chat Now

IGBT Portable Induction Heating Machine 30kw High Frequency Device

IGBT Portable Induction Heating Machine 30kw High Frequency Device
IGBT Portable Induction Heating Machine 30kw High Frequency Device
video play

Large Image :  IGBT Portable Induction Heating Machine 30kw High Frequency Device

Product Details:
Place of Origin: China
Brand Name: Lanshuo
Certification: CE ISO
Model Number: LSW-30
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: wooden boxes
Delivery Time: 5-7 working days after receiving advanced payments
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 2000 sets per year
Detailed Product Description
Type: Induction Heating Machine Working Voltage: 380V, 50/60HZ
Max Input Current: 45A Max Input Power: 30kw
Oscillation Frequency: 25-40KHZ Duty Cycle: 100%
Cooling Water Flow: 25L/Min,0.15-0.2MPa Weight: 49kg
Dimension: 690*290*600mm Color: Optional
High Light:

IGBT Induction Heating Machine Device

,

30kw Induction Heating forging Machine

,

Induction Heating Machine Portable

IGBT Induction Heating Round Bar End Hot Forging Machine 30kw



1. The working principle of IGBT high frequency heating equipment:
The IGBT high-frequency heating equipment adopts the principle of electromagnetic induction heating, and generates an alternating magnetic field with the help of an inductor to generate an induced current of the same frequency. The uneven distribution of the induced current in the workpiece makes the surface of the workpiece strong and weak inside, and it is close to 0 in the center. , so as to achieve the purpose of heating.

2. Technical Parameters of LSW-30 IGBT Induction Heating Equipment:

Model LSW-30
Working Voltage 380V, 50/60HZ
Max input power 30kw
Oscillation frequency 25-40KHZ
Duty cycle 100%
Cooling water flow 25L/Min,0.15-0.2MPa
Weight 48kg
Dimension (L*W*H ) 690*290*600mm
Material stainless steel
Color support customized
Usage metal heating, brazing,melting etc

IGBT Portable Induction Heating Machine 30kw High Frequency Device 0

3. IGBT high frequency heating equipment performance characteristics:

1. Adopt IGBT solid state inverter technology, high efficiency and energy saving, high output power.
2. Digital phase-locking technology to achieve automatic frequency tracking.
3. Modular design, simple installation, convenient operation, no need to debug.
4. It can replace other heating methods (such as gas, coking coal, oil furnace, electric furnace, high frequency electronic tube, etc.), energy saving and environmental protection.
5. IGBT high-frequency heating equipment has perfect protection function, high reliability and easy maintenance.
6. The resonant frequency conversion technology is adopted to make the overall efficiency of the equipment ≥ 95%, and the efficiency is high.
7. Full load rate design, can work continuously for 24 hours.

4. Application of high frequency induction heating brazing machine:

Metal heat treatment, brazing, smelting.

1. Heat treatment: partial or overall quenching, annealing, tempering, and diathermy of various metals.

2. Hot forming: whole forging, partial forging, hot heading, hot rolling.

3. Welding: brazing of various metal products, welding of various knife blades, saw teeth, welding of steel pipes, copper pipes, welding of the same kind of dissimilar metals.

4. Metal smelting: (vacuum) smelting, casting and evaporation coating of gold, silver, copper, iron, aluminum and other metals.

5. Other applications of high frequency induction heating machine: semiconductor single crystal growth, heat matching, bottle mouth heat sealing, toothpaste skin heat sealing, powder coating, metal implantation plastics.

IGBT Portable Induction Heating Machine 30kw High Frequency Device 1

IGBT Portable Induction Heating Machine 30kw High Frequency Device 2

IGBT Portable Induction Heating Machine 30kw High Frequency Device 3

5. Advantage of induction heating brazing machine:

1. Accurate temperature control:reduce the risk of overheating
2. Requiring small heat affected areas: reduce the risk of cold brazing as induction generates the heat in the base material
3. Environment and safety:No gas needed, no open flame
