Type: | Induction Heating Machine | Working Voltage: | 380V, 50/60HZ |
---|---|---|---|
Max Input Current: | 45A | Max Input Power: | 30kw |
Oscillation Frequency: | 25-40KHZ | Duty Cycle: | 100% |
Cooling Water Flow: | 25L/Min,0.15-0.2MPa | Weight: | 49kg |
Dimension: | 690*290*600mm | Color: | Optional |
High Light: | Forging Induction Heating Machine,stainless steel Induction Brazing Heating Machine,Portable Brazing Induction Heating Machine |
IGBT Induction Heating Round Bar End Hot Forging Machine 30kw

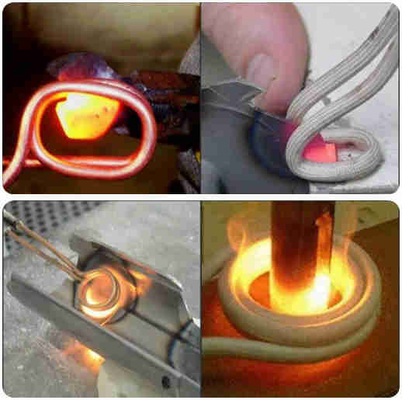

1. Application of 30kw high frequency induction heating equipment:
1. Heat treatment
Surface, inner hole, partial or overall quenching, annealing, tempering, etc. Such as hammers, knives, scissors, pliers and various shafts, cams, sprockets, gears, valves, ball studs, etc. As well as the quenching of large machine tool guide rails and ductile iron, many domestic manufacturers of sprockets and machine tool guide rails have adopted the company's equipment for heat treatment.
2. Diatherm forming
A. Hot rolling and hot rolling of various standard fasteners and other mechanical parts, hardware tools, and straight shank twist drills. The round steel with a diameter of 16mm can be extruded after heating for about 3-5 seconds.
B. Heat and anneal the metal material, then stretch it, shape embossing, etc. Such as steel pipe drawing, pipe bending, head smashing, iron wire, steel wire heating nailing, stainless steel products annealing, stretching and expanding.
3. Metal smelting
Such as smelting gold, silver, copper, etc.
4. Brazing
Welding of various carbide heads, turning tools, milling cutters, planers, reamers, diamond saw blades and saw teeth. Welding of abrasive tools, drilling tools and cutting tools. Composite welding of other metal materials. Such as brass, copper parts, valves, stainless steel bottoms, etc.
5. Other heating fields
Heating film for plastic pipes, cables and wires. Aluminum foil sealing used in food, beverage and pharmaceutical industries, preheating expansion of metals, etc.
2. Technical Parameters of LSW-30 IGBT Induction Heating Equipment:
Model | LSW-30 |
Working Voltage | 380V, 50/60HZ |
Max input power | 30kw |
Oscillation frequency | 25-40KHZ |
Duty cycle | 100% |
Cooling water flow | 25L/Min,0.15-0.2MPa |
Weight | 48kg |
Dimension (L*W*H ) | 690*290*600mm |
Material | stainless steel |
Color | support customized |
Usage | metal heating, brazing,melting etc |
3. IGBT high frequency heating equipment performance characteristics:
1. Adopt IGBT solid state inverter technology, high efficiency and energy saving, high output power.
2. Digital phase-locking technology to achieve automatic frequency tracking.
3. Modular design, simple installation, convenient operation, no need to debug.
4. It can replace other heating methods (such as gas, coking coal, oil furnace, electric furnace, high frequency electronic tube, etc.), energy saving and environmental protection.
5. IGBT high-frequency heating equipment has perfect protection function, high reliability and easy maintenance.
6. The resonant frequency conversion technology is adopted to make the overall efficiency of the equipment ≥ 95%, and the efficiency is high.
7. Full load rate design, can work continuously for 24 hours.
5. Advantage of induction heating brazing machine:
1. Accurate temperature control:reduce the risk of overheating
2. Requiring small heat affected areas: reduce the risk of cold brazing as induction generates the heat in the base material
3. Environment and safety:No gas needed, no open flame
