380V Igbt Induction Heating Forging Machine Electric Ball Head High Frequency

380V Igbt Induction Heating Forging Machine Electric Ball Head High Frequency
380V Igbt Induction Heating Forging Machine Electric Ball Head High Frequency
video play

Large Image :  380V Igbt Induction Heating Forging Machine Electric Ball Head High Frequency

Product Details:
Place of Origin: China
Brand Name: Lanshuo
Certification: CE
Model Number: LSW-160
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: wooden boxes
Delivery Time: 5-7 working days after receiving advanced payments
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 2000 sets per year
Detailed Product Description
Type: Induction Heating Machine Working Voltage: 380V, 50/60HZ
Max Input Current: 240A Max Input Power: 160kw
Oscillation Frequency: 18-23KHZ Duty Cycle: 100%
Cooling Water Flow: 50L/Min,0.2MPa Weight: 260kg
Dimension: 600*480*1360mm / 800*500*580mm Color: Optional
High Light:

Induction Heating Forging Machine 380V Igbt


Induction Heating Forging Machine High Frequency


Electric Ball Head Induction Heating Machine

160kw IGBT High Frequency Metal Workpiece Inner Hole Hardening Induction heating machine

1.High-frequency heating furnaces have many advantages for ball head heating:

1. Fast heating, the faster heating speed is less than 1 second (the speed can be adjusted and controlled);
2. Easy to install. It can be used after connecting the power supply, induction coil and inlet and outlet pipes; small size, light weight, easy to use;
3. The operation is simple and can be learned in a few minutes;
4. Quick start, heating can be started after the water is turned on;
5. Less power consumption: It saves about 70% power than the old-fashioned tube high-frequency equipment, and the smaller the workpiece, the less power consumption;
6. Wide heating can heat all kinds of metal workpieces (replaceable detachable induction coils according to different working switches);
7. Full protection with overvoltage, overcurrent, overheating, water shortage and other alarm indications, and automatic control and protection;
8. The effect is good, the heating is very uniform, the temperature rises quickly, the oxide layer is less, and there is no waste after annealing;
9. The temperature can be controlled by setting the heating time to control the heating temperature of the workpiece, so that the heating temperature can be controlled to a technical point;
10. Eliminate high voltage The step-up transformer that generates nearly ten thousand volts of high voltage is eliminated, and the safety is very high.

2. Technical Parameters of LSW-160 IGBT induction heating machine:

Model LSW-160
Working Voltage 380V, 50/60HZ
Max input power 160kw
Oscillation frequency 18-23KHZ
Duty cycle 100%
Cooling water flow 50L/Min,0.2MPa
Weight 260kg
Dimension (L*W*H ) 600*480*1360mm / 800*500*580mm
Material stainless steel
Color support customized
Usage metal heating,quenching etc


3. Main Features of IGBT induction heating machine:

The induction heating power supply converts AC line power to a higher frequency alternating current, delivers it to a work coil and creates an electromagnetic field within the coil. Your work piece is placed in that field which induces eddy currents in the workpiece. The friction from these currents generates precise, clean, non-contact heat. A water cooling system is generally required to cool the work coil and induction system.

Induction Heating Has Higher Efficiency and Produces More in Less Time
Delivering the highest quality parts for the least expense in the least time is accomplished with an efficient process, in which the input elements of materials and energy are tightly and precisely controlled. Induction heating’s targeted application of heat to the part or an area of the part, as well as repeatability, provides the most uniform results for the least cost.

380V Igbt Induction Heating Forging Machine Electric Ball Head High Frequency 0

4. Applications of IGBT induction heating machine:

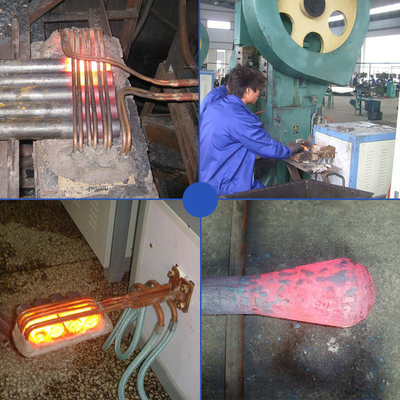

1. Heating (hot forging, hot fitting and smelting):
Hot forging aims to fabricate the work pieces of certain temperature (different materials require different temperatures) into other shapes through forging press with the help of punch press, forging machine or other equipments for instances, hot extrusion of watch case, watch flan, handle, mold accessory, kitchen and table ware, art ware, standard part, fastener, fabricated mechanical part, bronze lock, rivet, steel pin and pin.

Hot fitting refers to the connection of different metals or metals with nonmetals through the heating based on the principle of hot expansion or hot smelting, for instances, embedded welding of copper core of computer radiator with aluminum sheet and speaker web, compound of steel and plastic tube, sealing of aluminum foil (tooth paste peel) motor rotor and sealing of tubular electric heating element.

2. Heat treatment (induction quenching/hardening/tempering):
It’s mainly aims to change the rigidity of the metal materials through the heat treatment to work pieces. Detail applications are stated as follows:Quench for various hardware and tools, such as pliers, wrench, hammer, ax, screwing tools and shear (orchard shear).
Quench for various automobile and motorcycle fittings, such as crankshaft, connection rod, pinton pin, chain wheel, aluminum wheel, valve, rock arm shaft, small shaft and fork. Various electric tools, such as axes and gear.

Quench for machine tools, such as lache deck and guide rail.
Quench for various hardware metal parts and machined parts, such as shaft gear (chain wheel) cam, chuck and clamp. Etc.
Quench for hardware molds, such as small size mold, mold accessory and inner hole of mold

380V Igbt Induction Heating Forging Machine Electric Ball Head High Frequency 1

5. Feature of high frequency induction heating machine:

1. Adopts all-solid-state power conversion module Siemens IGBT technology.
2. With full range of protection features such as: over current, water shortage, overheating, over voltage, short circuit, lack of protection, greatly improving the reliability of the equipment and convenient equipment maintenance.
3. No need debug. Can be used after connecting through water& electricity.

4. Easy installation. Installation can be done by unprofessional workers very easily.
5. Easy operation. Suitable for factory, family, institute & laboratory.
6. 24 hours continuous working.

380V Igbt Induction Heating Forging Machine Electric Ball Head High Frequency 2
