Square Steel Induction Heating Furnace Machine 160kw Hot Forging

Square Steel Induction Heating Furnace Machine 160kw Hot Forging
Square Steel Induction Heating Furnace Machine 160kw Hot Forging
video play

Large Image :  Square Steel Induction Heating Furnace Machine 160kw Hot Forging

Product Details:
Place of Origin: China
Brand Name: Lanshuo
Certification: CE ISO
Model Number: LSW-160
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: wooden boxes
Delivery Time: 5-7 working days after receiving advanced payments
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 2000 sets per year
Detailed Product Description
Type: Induction Heating Machine Working Voltage: 380V, 50/60HZ
Max Input Current: 240A Max Input Power: 160kw
Oscillation Frequency: 18-23KHZ Duty Cycle: 100%
Cooling Water Flow: 50L/Min,0.2MPa Weight: 260kg
Dimension: 600*480*1360mm / 800*500*580mm Color: Optional
High Light:

Induction Heating Hot Forging Furnace Machine

,

Square Steel Induction Heating Furnace Machine

,

160kw Induction Heating Furnace Machine

Fast Heating Speed 160kw Square steel Induction Heating Machine Steel Bar / Roll Hot Forging Furnace Machine

1. Brief introduction of induction heating forging equipment

Square steel is a solid bar that is widely used in construction and shipbuilding industries. In order to meet the needs of the work, the square steel needs to be heated and heat treated. Square steel heating, many manufacturers currently use high-frequency heating equipment. According to them, the heating effect is very good and meets the needs of the work.



High-frequency heating equipment, it is a high-tech product produced with advanced IGBT modules. When the equipment heats the square steel, the heating speed is very fast, and the required temperature can be reached in a few seconds. Such a fast heating speed effectively avoids the occurrence of oxidation and decarburization, and ensures the heating effect of the square steel. , so that the heated square steel has no cracks and deformation defects, which meets the needs of the work.



The high-frequency heating equipment has three special setting functions of heating-holding-cooling. The heating and holding times can be set independently, and the heating time can be extended or shortened by adjusting the power of the equipment to achieve better heating effect. This equipment can be used in conjunction with the feeding device, sorting device, thermometer, etc. when the steel is heated and heat treated, which not only ensures the accuracy of the heating temperature, but also improves the production efficiency.

2. Applications of IGBT induction heating machine:
Induction heating machine can be used to heat the rod of steel, stainless steel, copper, brass or aluminium with diameter from dia 10 to 80mm in the shaping of screws, nuts, valves, locks and other metal parts.

3. Technical Parameters of LSW-160 IGBT induction heating machine:

Model LSW-160
Working Voltage 380V, 50/60HZ
Max input power 160kw
Oscillation frequency 18-23KHZ
Duty cycle 100%
Cooling water flow 50L/Min,0.2MPa
Weight 260kg
Dimension (L*W*H ) 600*480*1360mm / 800*500*580mm
Material stainless steel
Color support customized
Usage metal heating,quenching etc

Square Steel Induction Heating Furnace Machine 160kw Hot Forging 0Square Steel Induction Heating Furnace Machine 160kw Hot Forging 1

4. How Does Induction Heating Work?

In These series machines, series oscillating circuit is applied, through high frequency transformer, low voltage and high current power is output to go through the induction coil. The main oscillating structure is as follows:

Inside These series machines,MOSFET and our third generation inverting control technology has been used, that is the soft and dual control and inverting technology. In this technology, output power and frequency can be controlled and adjusted separately, IGBT and soft switching control technology are used in the high frequency switching circuit to control the output power. In the inverting circuit, the MOSFET and frequency tracing circuit is applied to achieve high speed and accurate soft switching control. The adoption of new technologies not only improves the quality and reliability of the machine,but also solve the technology problem on large power induction heating machine and makes it possible to work 100% duty cycle.

Inside the These series machines, oscillating cap is connected to the secondary coil of the transformer, so the voltage on the primary coil of the transformer is low and problems caused by high voltage such as sparks and insulations are solved thoroughly to increase the reliability and quality of the machine. At the same time, the transformer is light and small sized with low energy consuming.

Square Steel Induction Heating Furnace Machine 160kw Hot Forging 2

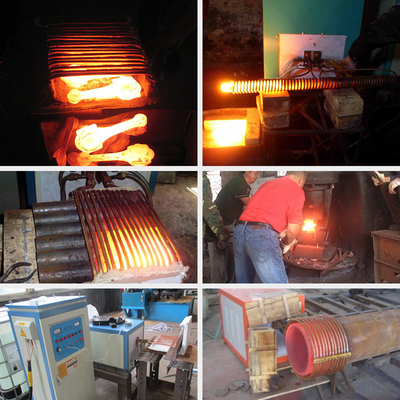

Hot forging: It heat work-pieces to a certain temperature(the heating temperature is different according to the different materials)and then forge the work-piece to others shapes through a punch, forging machine or other forms. For example, watch cases, watch blanks, handles, mold accessories, metal stamping parts, standard parts, fasteners, mechanical parts processing, brass locks, rivets, steel brazing, drill tools' hot extrusion and hot rolling etc.

Advantage of induction heating equipment:

Heating power, retaining power, heating time, retaining time can be preset and adjusted, this makes it possible to control the heating curve and heating time.
It is suitable to use in the repeated heating or high speed heating of small parts;
When using in brazing, with proper timing parameters, rapid heating and retaining can be achieved to keep the temperature while the brazing material is melted and then to let the brazing material spread smoothly to form good joint.
