Ring Gear Induction Quenching Heating Power Equipment Heat Treatment

Ring Gear Induction Quenching Heating Power Equipment Heat Treatment
Ring Gear Induction Quenching Heating Power Equipment Heat Treatment
video play

Large Image :  Ring Gear Induction Quenching Heating Power Equipment Heat Treatment

Product Details:
Place of Origin: China
Brand Name: Lanshuo
Certification: CE ISO
Model Number: LSW-50
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 1000-1600 / set
Packaging Details: 1.Standard wooden case, plywood case, and custormized case; 2. Inner packing: packing plastic film and foam in case of friction dampness and shake; 3.Accessories: induction coil 1, foot pedal 1, installing and operating instruction 1 and custormized del
Delivery Time: 5-7 working days after receiving advanced payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 2000 set per year
Detailed Product Description
Type: Induction Quenching Equipment Voltage: 380V
Current: 75A Rated Capacity: 50kw
Rated Duty Cycle: 100% Dimension: 550*650*1260mm
Weight: 120kg Usage: Brazing, Welding,heating
Power: 50kw Color: Optional
High Light:

Ring Gear Induction Quenching Power Equipment

,

75A Induction Quenching Power Equipment

,

50kw Induction Quenching Power Equipment

High Efficiency Gear Tractor Auto Parts Induction Heat Treatment Quenching Machine​

1.Induction Quenching Equipment introduction:

Induction hardening equipment refers to induction electric heating equipment for surface hardening of mechanical parts. Using the skin effect of alternating current, the surface layer of the steel part is heated by induction heating and then cooled and quenched, so that the surface of the part can have high hardness and fatigue resistance, while the center still maintains the original toughness. Many kinds of mechanical parts such as gears, shafts, pins, crankshafts, etc. require this performance. Induction hardening equipment is used for such heat treatment.

2. Technical Parameters of LSW-50 Induction Quenching Equipment:

Model LSW-50
Working Voltage 380V, 50/60HZ
Max input power 50kw
Oscillation frequency 18-35KHZ
Duty cycle 100%
Cooling water flow 32L/Min,0.1MPa
Weight 120kg
Dimension (L*W*H ) 550*650*1260mm
Material stainless steel
Color support customized
Usage metal heating, brazing,melting etc

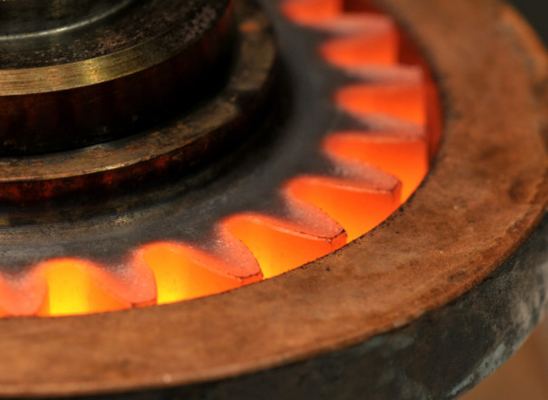

Ring Gear Induction Quenching Heating Power Equipment Heat Treatment 0

3. Ring gear quenching equipment - the advantages of medium frequency induction heating power supply:

1. The degree of automation is high, which can realize fully automatic unmanned operation and improve labor productivity.
2. Fast heating speed, less oxidation and decarburization
Since the induction heating principle of the intermediate frequency furnace is electromagnetic induction, the heat is generated by the workpiece itself. This heating method has a fast heating speed, less oxidation, high heating efficiency, good process repeatability, and only a slight decolorization of the metal surface. Light polishing is enough. Returns the surface to a mirror shine, effectively achieving consistent performance.
3. The induction furnace body is easy to replace
Depending on the size of the workpiece, it is necessary to configure induction furnaces of different specifications. Each furnace is designed with a quick-change joint for water and electricity, which makes the replacement of the furnace easy, fast and convenient.

4. Low energy consumption, no pollution
High heating efficiency, compared with other heating methods, effectively reduces energy consumption, high labor productivity, no pollution, equipment meets environmental protection requirements
5. Uniform heating, high precision temperature control
Uniform heating ensures small temperature difference between the core and surface of the heated workpiece. The temperature can be precisely controlled through the temperature control system to ensure product repeatability.
6. Fully protected equipment
The whole machine is equipped with water temperature, water pressure, phase loss, overvoltage, overcurrent, pressure limit/current limit, start overcurrent, constant current and buffer start, so that the equipment starts smoothly, protects reliably and quickly, and runs stably.

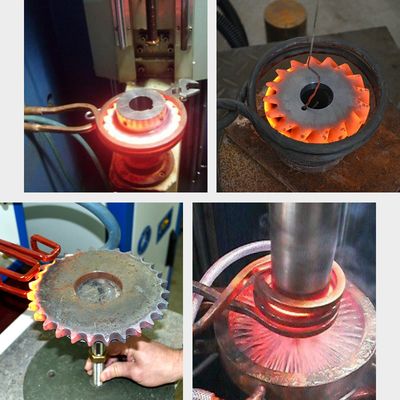

Ring Gear Induction Quenching Heating Power Equipment Heat Treatment 1
