Mini 1kg 5kg 10kg Iron Copper Gold Silver Melting Furnace Induction Furnace
  • Mini 1kg 5kg 10kg Iron Copper Gold Silver Melting Furnace Induction Furnace
  • Mini 1kg 5kg 10kg Iron Copper Gold Silver Melting Furnace Induction Furnace
  • Mini 1kg 5kg 10kg Iron Copper Gold Silver Melting Furnace Induction Furnace
  • Mini 1kg 5kg 10kg Iron Copper Gold Silver Melting Furnace Induction Furnace
  • Mini 1kg 5kg 10kg Iron Copper Gold Silver Melting Furnace Induction Furnace
  • Mini 1kg 5kg 10kg Iron Copper Gold Silver Melting Furnace Induction Furnace

Mini 1kg 5kg 10kg Iron Copper Gold Silver Melting Furnace Induction Furnace

Place of Origin China
Brand Name Lanshuo
Certification CE ISO EAC
Model Number LSW-30
Product Details
Type:
Induction Melting Oven
Power Source:
Electricity
Rated Power:
30kw
Usage:
Metal Smelting Heating Melting Brazing Welding
Application:
Iron Steel Copper Gold Silver Aluminum Smelting
Melting Capacity:
1-10kg
Input Voltage:
3-phase 380v 50/60 Hz
Oscillation Frequency:
25-40Khz
Highlight:

1kg Induction Melting Furnace

,

10kg Induction Melting Furnace

,

5kg Induction Melting Furnace

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
USD 1200-2000 / set
Packaging Details
plywood case, 750×350×720mm
Delivery Time
1-3 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
3000 Set/Sets per Year
Product Description

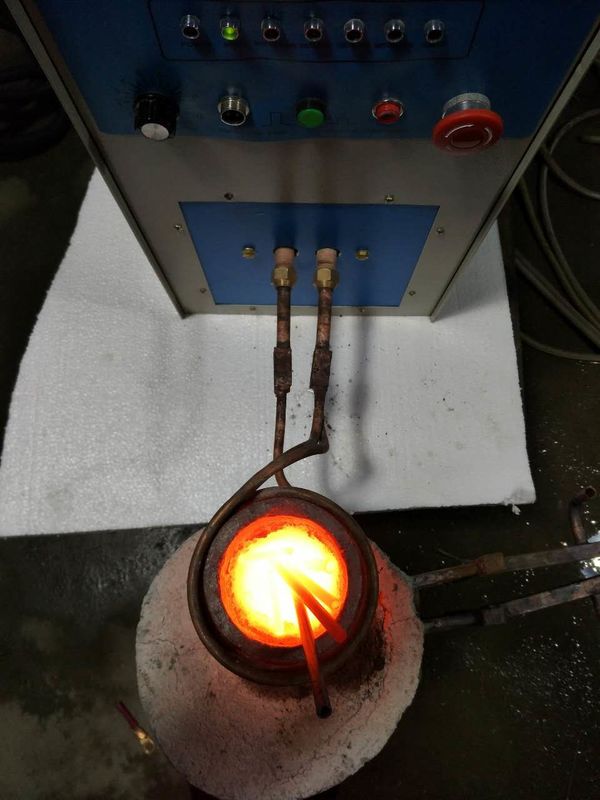

30kw Portable Electric Furnace Induction Melting Furnace

1. Brief Introduction of Induction Melting Furnace:

LSW series induction melting furnace adopts IGBT series and parallel induction heating technology as the core. Alternating current in the coils melts the metals in the crucible and then heats the hot metal to the temperature needed. It is the heat treatment prior to forging, sintering and hot rolling in casting and melting industries.



2. Technical Parameters of LSW-30 Induction Melting Furnace:

Modle LSW-30KW
Melting capacity 1-5kg copper gold silver iron steel zinc etc.
Rated Power 30KW
Input voltage 3-phase 380v, 50/60hz
Oscillation frequency 25-40Khz
Current(max) 50A
continuous load rate 100%
Cooling water flow(controller) 25L/Min 0.1mpa
Gross weight 60kg
Gross dimension 750×350×720mm



4. Main Features of induction heating Melting machine:

(1) High efficiency: Induction power, heat transfers to the crucible in a short time.

(2) Energy saving: Compared with traditional melting ways (gas & oil), saving 20%~30% power.

(3) Easy and safe to use: All-round indicator lights controller, much safer and easier for workers to operate.

(4) Stable in use: Our products have been tested at every level, reducing the rate of failure to a great extent.

(5) Environmentally friendly: Electricity-powered, no air pollution, no dust and little noise.

(6) Easy to carry and install: Portable, saving much more room.



Mini 1kg 5kg 10kg Iron Copper Gold Silver Melting Furnace Induction Furnace 0

Mini 1kg 5kg 10kg Iron Copper Gold Silver Melting Furnace Induction Furnace 1

5. Certificates

Mini 1kg 5kg 10kg Iron Copper Gold Silver Melting Furnace Induction Furnace 2

Mini 1kg 5kg 10kg Iron Copper Gold Silver Melting Furnace Induction Furnace 3Mini 1kg 5kg 10kg Iron Copper Gold Silver Melting Furnace Induction Furnace 4
