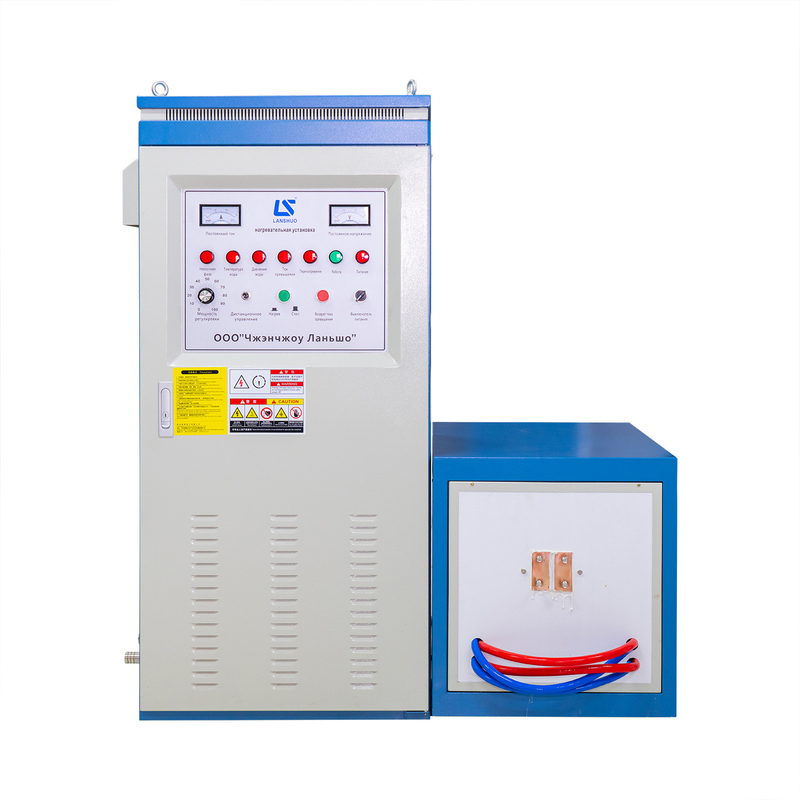

High Frequency 80kw Induction Heating Machine For Hardening Quenching And Forging

Product Details

Highlight:

Forging Induction Heating Machine

Hardening Induction Heating Machine

Payment & Shipping Terms

Minimum Order Quantity

1 SET

Price

4000USD

Packaging Details

WOODEN CASE

Delivery Time

3-5 WORKING DAYS

Payment Terms

T/T

Product Description

Parameter	DC current	130A
	DC voltage	500V
	Input voltage	Three-phase 380V 50-60HZ
	Heating frequency	18-25KHZ
	Air switch	3*200A
	Ground wire	1mm²
	Water pressure	0.15-0.2MPa
	Cooling system	3m³Water tank or 6T closed cooling water tower
	Weight(after packing)	200kg
Power installation	Input power wire	50mm²copper wire
	Input power control switch	3*200A
	Equipment ground wire	1.5mm²soft copper wire
Cooling water installation	Number of water in the control cabinet	water intake:one water outlet:one
	Number of water in the auxiliary engine	water intake:one water outlet:one
	Water pipe specification	Inlet water pipe: inner diameter 25mm
	Water pipe specification	Water outlet pipe: inner diameter 25mm
