30KW Induction Melting Furnace for Copper Gold Steel 1-5kg

Place of Origin	China
Brand Name	Lanshuo
Certification	CE
Model Number	LSW-30 Induction Melting Machine

Product Details

Type:

Induction Melting Machine

Usage:

Melting Gold Silver Copper Aluminum Steel Iron

Melting Capacity:

1-5kg Iron Steel Copper Aluminum Gold Silver Etc.

Rated Power:

30kw

Input Voltage:

3-phase 380v 50/60 Hz

Core Element:

IGBT Modules

Oscillation Frequency:

25-40Khz

Highlight:

5kg Industrial Furnace Crucible Furnace

3kg Industrial Furnace Crucible Furnace

2kg Industrial Furnace Crucible Furnace

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

USD 1500-2000 / set

Packaging Details

plywood case, 1 package, 745*345*680mm, 60kg

Delivery Time

1-3 working days after receiving advanced payment

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

3000 Set/Sets per Year

Product Description

1kg 2kg 3kg 5kg Copper Gold Melting Furnace Industrial Furnace Crucible Furnace

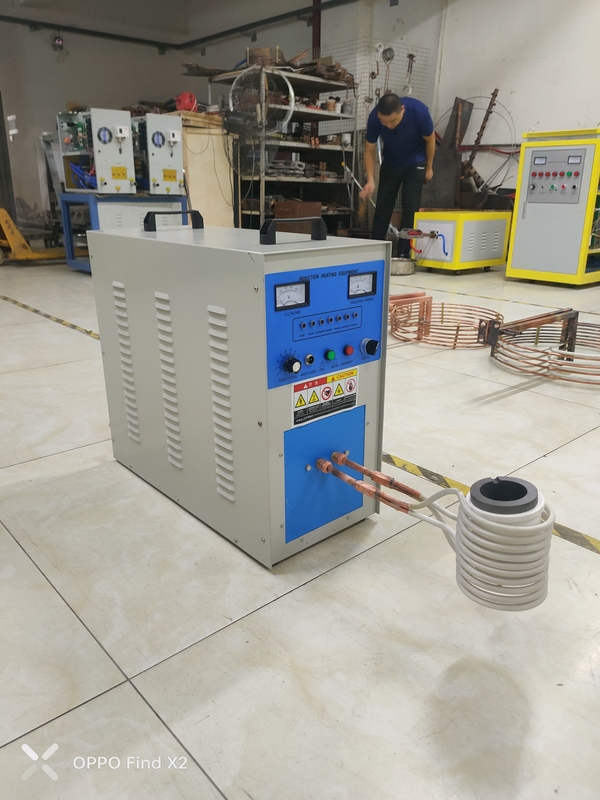

LSW-30 Portable Electric Stainless Steel Induction Melting Machine

Applications

Iron, pig iron, cast iron
Steel, stainless steel, cast steel, carbon steel and bearing steel
Precious metals such as gold and silver
Copper, brass, bronze
Aluminum, aluminum alloy
Zinc, lead, tin, magnesium, nickel, titanium

Product Overview

The LSW series high frequency induction melting furnace adopts IGBT series and parallel induction heating technology as its core. Designed to melt metal into liquid using high temperature, this machine is suitable for smelting various metals including iron, steel, copper, aluminum, zinc, and precious metals.

Technical Parameters

Model	LSW-30
Input Power	30KW
Input voltage	Three phase 380v 50hz
Voltage range	340V~420V
Oscillation frequency	25-35Khz
Current(max)	52A
Continuous load rate	100%
Cooling water flow(controller)	25L/Min 0.1mpa
Weight	48kg
Dimension	690290600mm

Key Features

High efficiency: Metal can be heated to its desired temperature, even its melting point, instantly.
Energy saving: The induction heating machine adopts IGBT from & LC series circuit design, saving energy up to 15%-30%.
Low cost: The heating time is short, significantly reducing metal loss compared to other heating methods.
Easy installation: Following the user manual, even non-professional persons can install the machine easily.
Stable operation: Complete protection system ensures worry-free operation.
Environmentally friendly: Uses electricity, producing minimal waste gas and water.
