1. Introduction of induction quenching machine:
Our induction hardening / quenching machine adopts IGBT series parallel induction heating technology as the core.
(1) Heating the metal workpiece to a certain temperature, and then cool it rapidly to change its machine structure to achieve some special mechanical properties.
(2) Oscillation frequency ranges around 30 KHz.
(3) Machines for quenching small shafts like Φ10 (hardening layer within 1.5 mm) and for large shafts like Φ250, or Φ500 gears are available.
2. Main technical parameter of induction heating machine
| Model |
LSW-60 |
| Working voltage (V/HZ) |
380/50 |
| Voltage range (V) |
340-420 |
| Max input current (A) |
100 |
| Max input power (KW) |
60 |
| Oscillation frequency(KHZ) |
22-28 |
| Efficiency(%) |
95% |
| Duty cycle(%) |
100% |
| Cooling water flow :(control part) L/Main-MPa |
20-0.15 |
| Cooling water flow :(transfer part) L/Main-MPa |
30-0.15 |
| Weight :(control part) kg |
65 |
| Weight :(transferl part) kg |
85 |
| Dimension:(control part)(L*W*H)mm |
500*650*1100 |
| Dimension:(transfer part) (L*W*H) mm |
700*450*460 |
3. Features of induction hardening machine
(1) High quenching quality: The audio device’s ultra-hardened rail is right, and the quenching level is moderate. The quenching speed can reach up to 400 mm / min. The fast moving water goes into a double track at the same time.
(2) Super audio compact, high power; easy to operate, mobile and flexible.
(3) The same for machine tool gear, machine tool accessories and other top quenched
(4) The sensor connection structure with soft, easy to tune the gap, guide wheel positioning to avoid ignition.
(5) The technology is mature, professional, experienced, and used by dozens of domestic machine tool factories.
(6) High degree of automation: The machine can be connected with upper computer and IPC to realize the machine operate automatically.
4. Function of induction quenching machine
(1) For auto parts and motorcycle parts quenching and hardening.
(2) For machinery parts, like gears, transmission wheels, axles, spline shafts, ball stud hardening.
(3) For Machine tools quenching, like guide rail machine tools quenching.
(4) For Spanner/pliers/CNC machines/hammer/axes quenching etc.

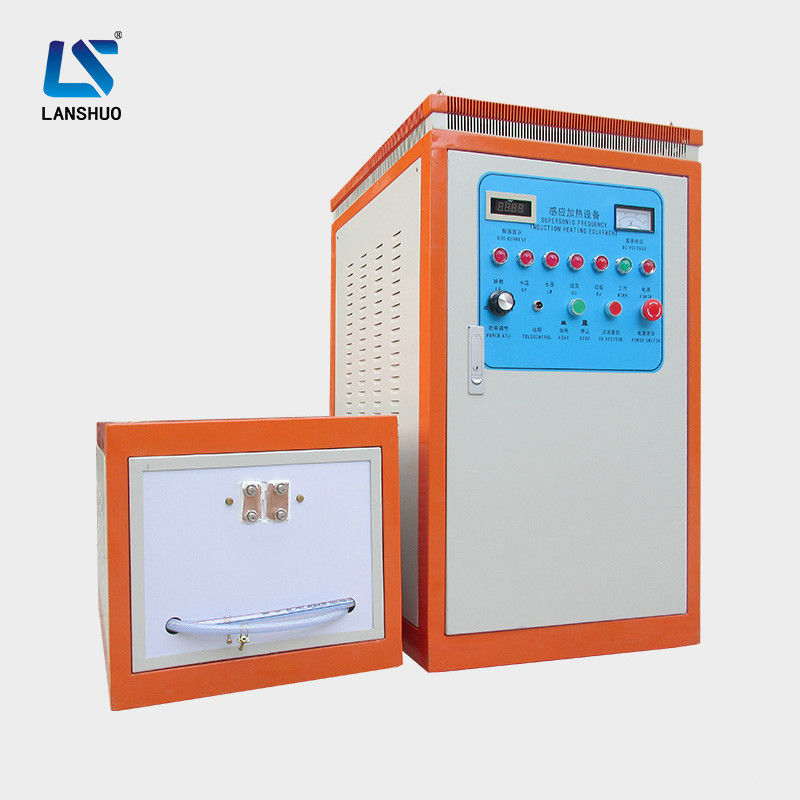

5. Photos
6. Application
7. Packing
Packing details: Induction heating machine with Standard wooden package or as customer's require
Delivery details: Within 7 working days after payment received
8. Company information
(1).Zhengzhou Lanshuo Electronics Co., Ltd Factory have been built 12 years,is a professional and a direct supplier.
(2).Our products are widely applied to induction heating,forging,melting,hardening/quenching,annealing,tempering,brazing/welding/soldering,normalizing,cooling water tower,etc.
(3).In order to adapt to the trends of economic globalization in recent years, we have established a cooperation relationship with Zhengzhou University for a new generation of induction heating equipment with independent intellectual property rights.
9. Our services
As a manufacturer with 15 years’ R&D experience in China, we would like to offer any support you need as follows:
1. Immediate reply to your inquiry.
2. Detailed information of our products, and our company if you need.
3. Best quotation.
4. Immediate reply to your questions about our products.
5. Technical support, or alternative accessories if necessary.
