4mm 6mm Metal Surface Hardening Quenching Machine
  • 4mm 6mm Metal Surface Hardening Quenching Machine
  • 4mm 6mm Metal Surface Hardening Quenching Machine
  • 4mm 6mm Metal Surface Hardening Quenching Machine
  • 4mm 6mm Metal Surface Hardening Quenching Machine
  • 4mm 6mm Metal Surface Hardening Quenching Machine
4mm 6mm Metal Surface Hardening Quenching Machine

4mm 6mm Metal Surface Hardening Quenching Machine

Place of Origin China
Brand Name Lanshuo
Certification CE
Model Number LCN-1500
Product Details
Model:
LCN-1500
Type:
Induction Quenching Machine Tool
Application:
Shafts Rods Gears Roller Hardening
Max Lengths Of The Clamping Part:
1500mm
Max Length Of Quenching Parts:
1500mm
The Largest Diameter Quenching Parts:
600mm
The Largest Total Quenching Parts:
300kg
Spindle Rotation Speed:
0-200 Rps
Workpieces Moving Speed:
1-60 Mm/s
Mobile Positioning Accuracy:
±0.1 Mm
Highlight:

4mm metal hardening quenching machine

,

6mm CNC quenching machine

,

metal surface hardening machine with warranty

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
USD 12000-13000 / set
Packaging Details
plywood case
Delivery Time
7-15 working days after deposit
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
1000 sets per year
Product Description

LCN-1500 CNC Induction Quenching Hardening Machine Tool

I. Main configuration of CNC Induction Quenching Machine Tool:
1. CNC system control;
2. Stepper motor drive;
3. Ball screw drive;
4. Cylinder linear guide rail, ball slider sliding;
5. AC variable speed motor drive sprocket chain, the light bar to rotate the workpiece;
6. AC gear motor drive screw, screw the top down;
7. Solenoid valve control water;
8. With a heating device control plug.
II. Main technical parameters of CNC induction quenching machine tools

Model
LSN-2000
LSN-1500
LSN-1000
LSN-600
Max lengths of the clamping parts(mm)
2050
1250
1050
650
Max length of quenching parts(mm)
2000
1200
1000
600
The largest diameter quenching parts(mm)
600
600
600
600
The largest total quenching parts (Kg)
150
150
150
150
Spindle rotation speed (rps)
0-200
0-200
0-200
0-200
Workpieces moving speed ( mm/s)
1-60
1-60
1-60
1-60
Mobile positioning accuracy (mm)
±0.1
±0.1
±0.1
±0.1


III. Advantages of Our CNC Hardening Machine Tool:
1. The induction heating machine adopts IGBT modules, high efficiency, energy saving.
2. Environmentally friendly. Almost no oxide layer, produced no exhaust, no waste-water is generated.
3. Heating fast and uniform.
4. A unique cooling circulation system, ensure that the equipment 24 hours of continuous work.
5. Easy installation, simple operation.
6. Safe and reliable. No high voltage, very safe for operating people.
7. Machine power can be adjust step-less.
8. It has complete self-protect functions: such as many types of alarm lamps: over-current, over-voltage, over hot, water shortage etc, can also control and protect itself.
IV. Applications of Our CNC Hardening Machine Tool:

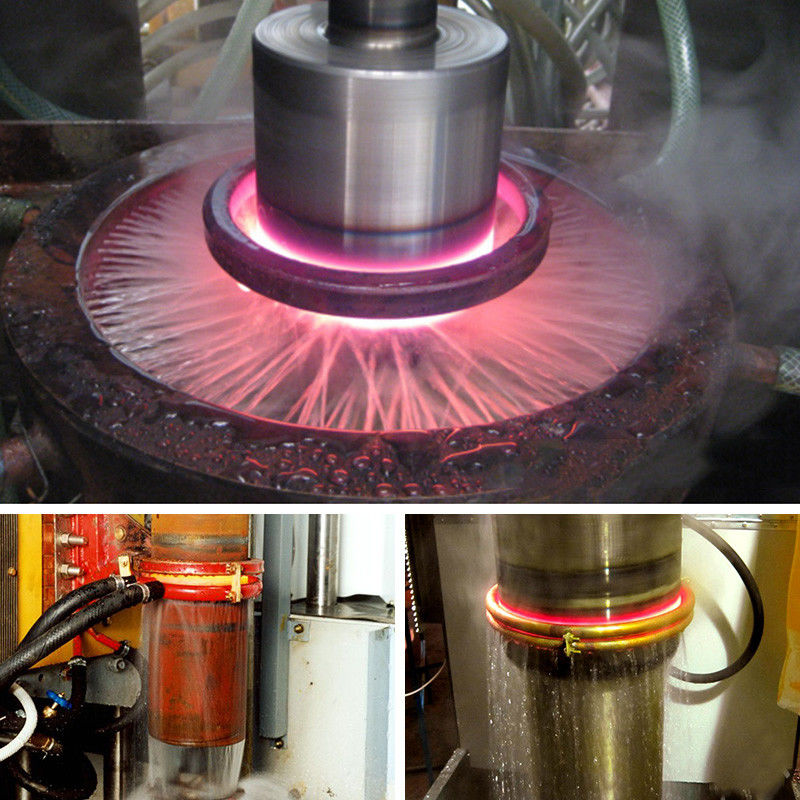

Shaft: Single heating spray hardening, segmental single heating spray hardening, continuous heating spray hardening, segmental continuous heating spray hardening.
Gear: Overall single heating spray hardening, single tooth single heating spray hardening, single tooth continuous heating spray hardening.
Disc-type workpiece:Overall single heating spray hardening, circumferential surface continuous heating spray hardening.
4mm 6mm Metal Surface Hardening Quenching Machine 0
4mm 6mm Metal Surface Hardening Quenching Machine 1

4mm 6mm Metal Surface Hardening Quenching Machine 2

V. Certificates

4mm 6mm Metal Surface Hardening Quenching Machine 34mm 6mm Metal Surface Hardening Quenching Machine 4
