1T 1000kg Iron Steel Stainless Steel Melting Furnace Electric Smelting Machine
  • 1T 1000kg Iron Steel Stainless Steel Melting Furnace Electric Smelting Machine
  • 1T 1000kg Iron Steel Stainless Steel Melting Furnace Electric Smelting Machine
  • 1T 1000kg Iron Steel Stainless Steel Melting Furnace Electric Smelting Machine
  • 1T 1000kg Iron Steel Stainless Steel Melting Furnace Electric Smelting Machine
  • 1T 1000kg Iron Steel Stainless Steel Melting Furnace Electric Smelting Machine
  • 1T 1000kg Iron Steel Stainless Steel Melting Furnace Electric Smelting Machine

1T 1000kg Iron Steel Stainless Steel Melting Furnace Electric Smelting Machine

Place of Origin China
Brand Name Lanshuo
Certification CE ISO EAC
Model Number KGPS-1T/800KW
Product Details
Type:
Induction Melting Furnace
Power Source:
Electricity
Melting Material:
500kg 750kg 1000kg Iron Steel Copper Aluminum Lead Gold Silver
Rated Temperature:
1800°c
Rated Power:
800KW
Voltage:
3-phase 380v, 50/60HZ
MF Frequency:
1KHZ
Medium Voltage:
750v Phase
DC Voltage:
500V Phase
DC Current:
1600A Phase
Highlight:

1T electric smelting furnace

,

1000kg stainless steel melting furnace

,

iron steel smelting machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
USD 14000-15000 per set
Packaging Details
plywood case, 3 packages, about 9cbm, about 2.8T
Delivery Time
7-10 working days
Payment Terms
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability
1000 sets per year
Product Description
1T 1000kg Iron Steel Stainless Steel Melting Furnace Electric Smelting Machine
Product Specifications
Attribute Value
Type Induction Melting Furnace
Power Source Electricity
Melting Material 500kg 750kg 1000kg Iron Steel Copper Aluminum Lead Gold Silver
Rated Temperature 1800°C
Rated Power 800KW
Voltage 3-phase 380V, 50/60HZ
MF Frequency 1KHZ
Medium Voltage 750V Phase
DC Voltage 500V Phase
DC Current 1600A Phase
Product Overview

Our constant power (energy-saving) intermediate frequency induction melting furnace has been extensively tested and improved, resulting in superior performance that has earned widespread customer approval.

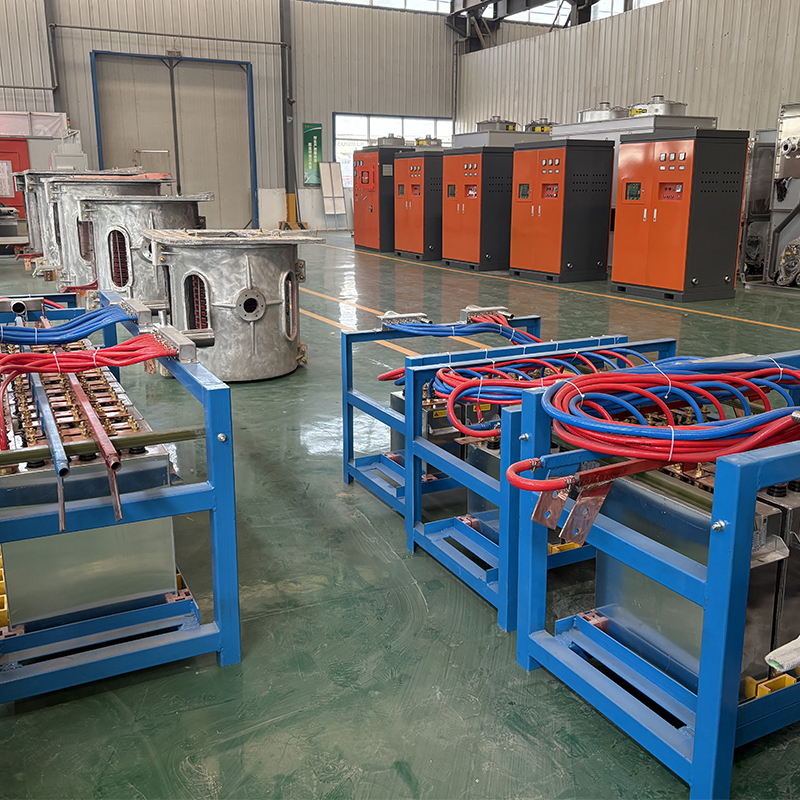

1T 1000kg Iron Steel Stainless Steel Melting Furnace Electric Smelting Machine 0 1T 1000kg Iron Steel Stainless Steel Melting Furnace Electric Smelting Machine 1
Key Features
  • High melting rate for efficient operation
  • Produces good-quality molten steel with high casting product yield
  • High power factor exceeding 97% during operation
  • No harmful effects on power grid
  • Low power consumption with over 10% energy savings
  • 100% start-up success rate under any load condition
  • Main control panel with plug-in connectors for easier maintenance
  • Simple installation process requiring minimal technical expertise
  • Series thyristor design minimizes SCR damage rate
Technical Parameters
Model KGPS-1T/800KW
Rated Power 800KW
Rated Capacity 1T
Matching transformer's capacity 1000KVA
Voltage 380V, 50/60HZ
MF Frequency 1KHZ
Medium Voltage 750V Phase
DC Voltage 500V Phase
DC Current 1600A Phase
Rated Temperature 1800°C
Closed Loop Water Cooling Tower LSN-80B
1T 1000kg Iron Steel Stainless Steel Melting Furnace Electric Smelting Machine 2
Material Applications
  • Iron, pig iron, cast iron
  • Steel, stainless steel, cast steel, carbon steel and bearing steel
  • Gold, silver, platinum
  • Copper, brass, bronze
  • Aluminum, aluminum alloy
  • Zinc, lead, tin, magnesium, nickel, titanium
1T 1000kg Iron Steel Stainless Steel Melting Furnace Electric Smelting Machine 3
Certifications
1T 1000kg Iron Steel Stainless Steel Melting Furnace Electric Smelting Machine 4 1T 1000kg Iron Steel Stainless Steel Melting Furnace Electric Smelting Machine 5 1T 1000kg Iron Steel Stainless Steel Melting Furnace Electric Smelting Machine 6
