100kg Electric Induction Melting Furnace for Scrap Metal
  • 100kg Electric Induction Melting Furnace for Scrap Metal
  • 100kg Electric Induction Melting Furnace for Scrap Metal
  • 100kg Electric Induction Melting Furnace for Scrap Metal
  • 100kg Electric Induction Melting Furnace for Scrap Metal
  • 100kg Electric Induction Melting Furnace for Scrap Metal
  • 100kg Electric Induction Melting Furnace for Scrap Metal
100kg Electric Induction Melting Furnace for Scrap Metal

100kg Electric Induction Melting Furnace for Scrap Metal

Place of Origin CHINA
Brand Name ZHENGZHOU LANSHUO
Certification CE
Model Number KGPS-100
Product Details
Rated Power:
100KW
Melting Capacity:
100kg
Matching Transformer Capacity:
150KVA
Incoming Voltage:
380V,three-phase,50-60HZ
Medium Frequency:
1-2KHZ
Medium Voltage:
750V Phase
DC Voltage:
500V Phase
DC Current:
200A Phase
Rated Tempersture:
1800℃
Melting Time:
40-50min
Highlight:

100kg electric melting furnace

,

induction furnace for scrap metal

,

large capacity metal melting furnace

Payment & Shipping Terms
Minimum Order Quantity
1 SET
Price
6000USD-8000USD
Packaging Details
WOODEN CASE
Delivery Time
5-8WORKING DAYS
Payment Terms
T/T
Supply Ability
1 SET
Product Description
Parameters
Rated power 100KW
Melting capacity 100KG
Matching transformer capacity 150KVA
Incoming voltage 380V,three-phase,50-60HZ
Medium frequency 1000-2000HZ
Medium voltage 750V Phase
DC voltage 500V Phase
DC current 200A Phase
Rated tempersture 1800℃
Melting time 40-50min
Cooling system 20T closed cooling water tower

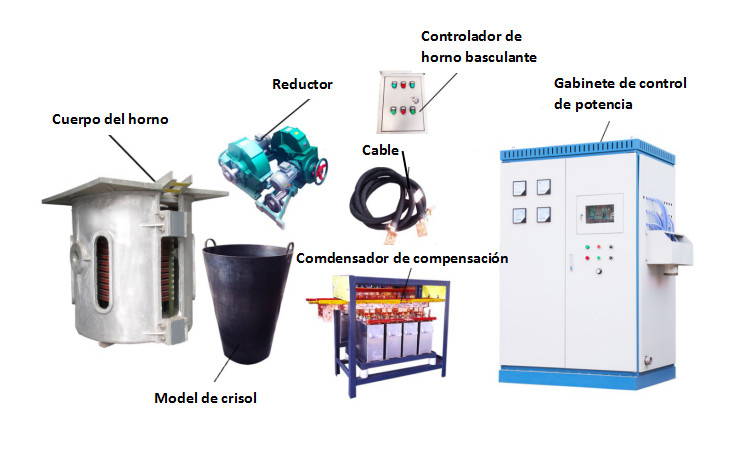

Complete equipment configuration
100kw main control cabinet one
Furnace body one
Reducer RZS231,one
Water cooling cable 180mm² ,two cables
Instructions one
Capacitor holder one
Tilting furnace control box one





Pictures:

100kg Electric Induction Melting Furnace for Scrap Metal 0



100kg Electric Induction Melting Furnace for Scrap Metal 1100kg Electric Induction Melting Furnace for Scrap Metal 2100kg Electric Induction Melting Furnace for Scrap Metal 3100kg Electric Induction Melting Furnace for Scrap Metal 4100kg Electric Induction Melting Furnace for Scrap Metal 5100kg Electric Induction Melting Furnace for Scrap Metal 6

100kg Electric Induction Melting Furnace for Scrap Metal 7



CE:

100kg Electric Induction Melting Furnace for Scrap Metal 8



Tags:

industrial metal melting furnace,

steel melting induction furnace,

induction melting equipment
