Medium Frequency Induction Melting Furnace 100KW 0.1 Capacity High Performance

Medium Frequency Induction Melting Furnace 100KW 0.1 Capacity High Performance
Medium Frequency Induction Melting Furnace 100KW 0.1 Capacity High Performance Medium Frequency Induction Melting Furnace 100KW 0.1 Capacity High Performance Medium Frequency Induction Melting Furnace 100KW 0.1 Capacity High Performance Medium Frequency Induction Melting Furnace 100KW 0.1 Capacity High Performance

Large Image :  Medium Frequency Induction Melting Furnace 100KW 0.1 Capacity High Performance

Product Details:
Place of Origin: China
Brand Name: Lanshuo
Certification: CE
Model Number: KGPS-01
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 15000-50000 / set
Packaging Details: KGPS induction melting furnace is packed in wooden boxes
Delivery Time: 7-10 working days after receiving advanced payment
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 300 Set Per Year
Detailed Product Description
Type: Induction Melting Furnace Rated Power: 100kw
Rated Capacity: 0.1T Voltage: 380v, 50/60HZ
MF Frequency: 2000HZ Medium Voltage: 750v Phase
DC Voltage: 500V Phase DC Current: 200A Phase
Rated Temperature: 1600°c Color: Customizable
Melting Material: Gold, Silver, Copper, Iron And Aluminum Etc Control Cabinet Size: 1450*1000*850cm
Furnace Size: 1350*980*860cm Control Cabinet Weight: 600kg
Furnace Weight: 300kg
High Light:

steel melting induction furnace

,

induction melting equipment

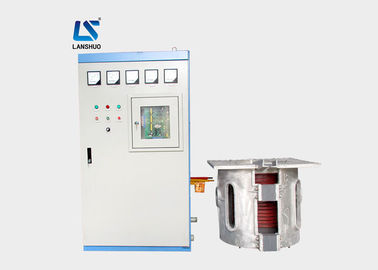

KGPS 0.1 Ton / 100KW Medium Frequency Large Induction Melting Furnace
 1. Brief Introduction of 0.1Ton Medium Frequency Induction Melting Furnace:
KGPS series Medium Frequency melting induction furnace, aluminum shell mechanical tilt, is for melting cast steel, cast iron, stainless steel, copper, aluminum and other metals or its alloy.It is particularly suited to small and medium-size enterprises, or as Precision Casting Material Test.

Medium Frequency Induction Melting Furnace 100KW 0.1 Capacity High Performance 0
2. Technical Parameter of Large Induction Melting Furnace:

ModelKGPS-01T/100KW
Rated Power100kw
Rated Capacity0.1T
Matching transformer's capacity150KVA
Voltage380V, 50/60HZ
MF Frequency2000HZ
Medium Voltage750V Phase
DC Voltage500V Phase
DC Current200A Phase
Rated Temperature1600°C
Closed Loop Water Cooling TowerLSN-10B


3. Large Induction Melting Furnace Application:
(1) iron, pig iron, cast iron;
(2) steel, stainless steel, cast steel, carbon steel and bearing steel;
(3) gold, silver, platinum;
(4) copper, brass, bronze;
(5) aluminum, aluminum alloy;
(6) zinc, lead, tin, magnesium, nickel, titanium.
Medium Frequency Induction Melting Furnace 100KW 0.1 Capacity High Performance 1
Medium Frequency Induction Melting Furnace 100KW 0.1 Capacity High Performance 2
4. Advantage of Large Induction Melting Furnace :
1. Frequency-sweep zero voltage start, high success rate, no shock;
2. Automatic resistance adjustment, permanent power output, 10-20% energy saved in comparison with domestic traditional machine of the type;
3. Auto phase sequence adaptation, free of synchronization;
4. Good performance in reload staring, auto recovery;
5. Highly integrated in controlling circuit, free of use of high-rate starter and relay loop, fairly low failure rate;
6. Wholly digital design, strong in anti-interference, no temperature shift when in continuous working;
7. Multi-protection functions (for over current, over voltage, insufficient water pressure, power failure, or phase absence), and mishandling will not cause damage to machine.

5. Part of the melting furnace:
1). Furnace Parts: The mechanical parts of the MF furnace consisted of furnace pot,water power introduced into the system, titling device and other parts.
2). Furnace Ports: Furnace port including furnace shell, induction coil etc.
3). Furnace Shell:

Main Power CabinetFurnace ShellReducerWater Cooled CableCrucible MouldInduction Coil
Medium Frequency Induction Melting Furnace 100KW 0.1 Capacity High Performance 3Medium Frequency Induction Melting Furnace 100KW 0.1 Capacity High Performance 4Medium Frequency Induction Melting Furnace 100KW 0.1 Capacity High Performance 5Medium Frequency Induction Melting Furnace 100KW 0.1 Capacity High Performance 6Medium Frequency Induction Melting Furnace 100KW 0.1 Capacity High Performance 7Medium Frequency Induction Melting Furnace 100KW 0.1 Capacity High Performance 8

6. Large Induction Melting Furnace Packaging:
Medium Frequency Induction Melting Furnace 100KW 0.1 Capacity High Performance 9
As for packing of KGPS induction melting furnace:
wooden / plywood cases and the furnace is packed with wrapping film and the case is filled with foam,for waterproof and shockproof.
As for shipping of KGPS induction melting furnace:
1. If you have a shipper in China, we can send the machines to him or her for free.
2. If you want us to send the machines to you directly, we can send them to any main port of China promptly.
