|Type:||Induction Melting Furnace||Power:||35kw|
|Input Current:||57A||Voltage:||3-phase 380v, 50/60hz|
|Oscillation Frequency:||1-15KHZ||Connecting Wire:||16mm2|
|Control Switch:||3*80A||Ground Wire:||2mm2|
|Cooling Water Pressure:||≥0.2MPa||Cooling Water Flow:||≥10L/Min|

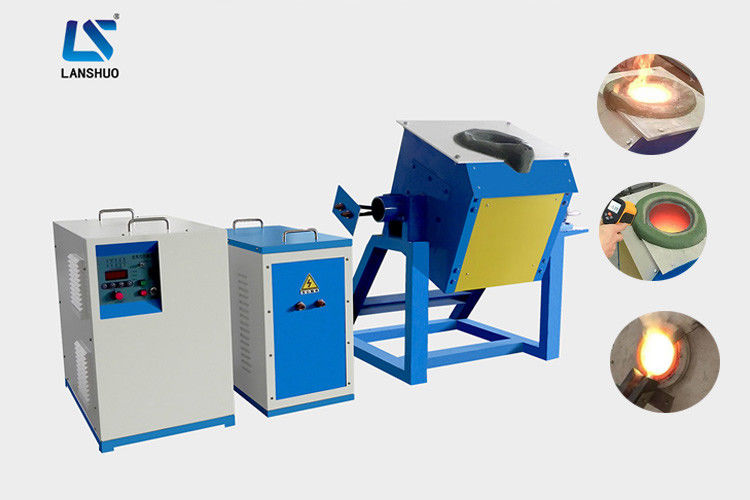

medium frequency induction melting furnace,
electric metal melting furnace
1. Induction Melting Furnace Features:
1. MF melting furnace can be used for the melting of steel, stainless steel, brass,cooper,gold and so on.
2. Because of the stirring effect which caused by the magnetic force, the melting pool can be stirred during the melting course to ease the floating of the flux and oxides to produce high quantity casting parts.
3. Wide frequency range from 1KHZ to 20 KHZ, working frequency can be designed by changing the coil and compensating capacitor according to the melting material, quantity, stirring effect desire, working noise, melting efficiency and other factors.
4. Compared with SCR medium frequency furnace, it can be energy at least 20% and up.
5. Small and light, a lot of modes can be selected to melt different amount of metals. Not only it is suitable for the factory, but also suitable for the colleges and researching companies to used.
6. 24 hours non-stop melting ability.
7. It’s easy to change melting furnace to different capacity, different materials,different way of pouring out, to suitable for all kinds of requirements.
2. Melting Capacity of Electric Induction Melting Furnace:
3. Electric Induction Melting Furnace Application:
4. Electric Induction Melting Furnace Feature:
1. Very easy to install and operate, Quickly study.
2. Ultra-small size, light weight, portable, occupies less than one square meter.
3. 24 hours uninterrupted smelting capacity.
4. Energy saving.
5. The furnace is to facilitate the replacement of different weights, different materials, different furnace way in order to accommodate each Kind smelting requirements.
6. The use of ultra-small frequency induction heating power supply frequency power, Its totally different from traditional furnace.
7. Heating through heat resistance, temperature uniformity.
8. The intermediate magnetic field on the molten metal with a magnetic stirring effect, and beneficial to ingredients are uniformly.
9. According to the recommended maximum smelting equipment and the amount of time each furnace smelting 20-60 minutes.
