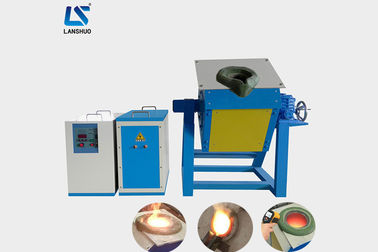

Small IGBT Electric Gold Induction Melting Furnace 3 Phase 380v Custom Color

Small IGBT Electric Gold Induction Melting Furnace 3 Phase 380v Custom Color
Small IGBT Electric Gold Induction Melting Furnace 3 Phase 380v Custom Color

Large Image :  Small IGBT Electric Gold Induction Melting Furnace 3 Phase 380v Custom Color

Product Details:
Place of Origin: China
Brand Name: Lanshuo
Certification: CE
Model Number: LSZ-15
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD5000---20000 / set
Packaging Details: wooden boxes
Delivery Time: 5-10 working days after receiving advanced payments
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per year
Detailed Product Description
Type: Induction Melting Furnace Power: 15kw
Input Current: 18A Voltage: 3-phase 380v, 50/60hz
Oscillation Frequency: 1-15KHZ Connecting Wire: 10mm2
Control Switch: 3*40A Ground Wire: 2mm2
Cooling Water Pressure: ≥0.2MPa Cooling Water Flow: ≥10L/Min
Color: Customizable Size: 460*270*450mm / 550*300*500mm
High Light:

medium frequency induction melting furnace

,

electric metal melting furnace

Small IGBT electric gold induction melting furnace

1. Brief Introduction of electric gold Induction Melting Furnace:

Induction melting furnaces are designed for maximum electrical efficiency using heavy walled, high electrically conductive copper tubing. The furnaces can be used with ceramic (non-conductive) crucibles or conductive crucibles such as graphite, clay graphite or silicon carbide. Our furnaces are designed for each customer's specific melting application, providing close temperature control and maximum efficiency. Furnaces can be designed for various purposes such as melting iron and steel, precious metals, ferrous and nonferrous metals; refining of high purity metal and alloys; smelting; and vacuum and controlled atmoshere melting.

2. Electri Gold Induction Melting Furnace Application:

Small IGBT Electric Gold Induction Melting Furnace 3 Phase 380v Custom Color 0

3. Advantage of our company:

Induction melting furnaces offer superior performance and outstanding durability for all your melt shop needs regardless of the size of your foundry or melt shop. We offer a variety of smaller induction furnaces to meet the demanding requirements of investment casters, specialty foundries and the precious metals industry, as well as medium-sized induction furnaces designed to give foundries another choice for smaller to mid-sized applications.

4. Main technical parameters of LSZ series electric gold induction melting furnace:

Model Power Input current Voltage Oscillation frequency

Connect-

ing wire

Control switch
LSZ-15 15kw 18A 3-phase 380 V, 50/60 Hz 1-15KHz 10mm2 3*40A
LSZ-25 25kw 36A 10mm2 3*60A
LSZ-35 35kw 57A 16mm2 3*80A
LSZ-45 45kw 80A 35mm2 3*120A
LSZ-70 70kw 110A 50mm2 3*150A
LSZ-90 90kw 140A 75mm2 3*225A
LSZ-110 110kw 160A 90mm2 3*225A
LSZ-160 160kw 240A 120mm2 3*300A

5. Related Products:

Induction Heating

Machine

Induction Quenching

Machine

Induction Brazing

Machine

Large Melting Furnce
Small IGBT Electric Gold Induction Melting Furnace 3 Phase 380v Custom Color 1 Small IGBT Electric Gold Induction Melting Furnace 3 Phase 380v Custom Color 2 Small IGBT Electric Gold Induction Melting Furnace 3 Phase 380v Custom Color 3 Small IGBT Electric Gold Induction Melting Furnace 3 Phase 380v Custom Color 4
Small IGBT Electric Gold Induction Melting Furnace 3 Phase 380v Custom Color 5 Small IGBT Electric Gold Induction Melting Furnace 3 Phase 380v Custom Color 6 Small IGBT Electric Gold Induction Melting Furnace 3 Phase 380v Custom Color 7 Small IGBT Electric Gold Induction Melting Furnace 3 Phase 380v Custom Color 8
