0.5T 400KW Aluminum Shell Induction Melting Furnace

aluminum shell induction melting furnace for smelting iron and copper scrap

1. Main Feature of Medium Frequency Induction Melting Furnace:
1) Medium frequency induction melting furnace can be used for the melting of steel, stainless steel, iron, brass, copper, aluminum, gold, silver, platinum , zinc, metal alloys and so on.
2) Because of the stirring effect which caused by the magnetic force, the melting pool can be stirred during the melting course to ease the floating of the flux and oxides to produce high quality casting parts.
3) Wide frequency range from 1KHZ to 20KHZ, working frequency can be designed by changing the coil and compensating capacitor according to the melting material, quantity, stirring effect desire, working noise, melting efficiency and other factors.
4) Compared with SCR medium frequency induction furnace, it can save energy at least 20% and up.
5) Small and light weight, a lot of modes can be selected to melt different amount of metals. Not only it is suitable for the factory, but also suitable for the college and researching companies to use.
6) 24hours non-stop melting ability.
7) It's easy to change melting furnace for different capacity, different material, different way of pouring out, to suitable for all kinds of requirements.
2. Technical Parameter of Large Induction Melting Furnace:

3. Large Induction Melting Furnace Application:

aluminum shell medium frequency melting furnace required little area, which is easy to operate, easy to use, and inexpensive, suitable for melting all kinds of pig iron, cast iron, scrap, iron slag, etc.

4. Part of the aluiminum shell induction melting furnace:

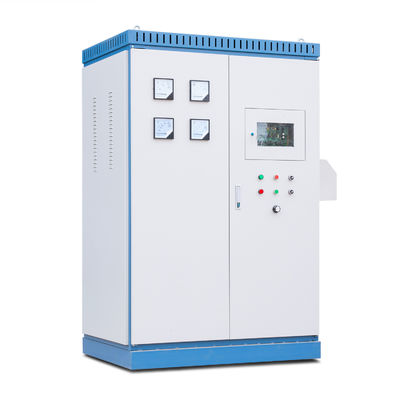

1. Medium frequency induction heating power supply
2. Melting furnace
3. Compensation capacitor
4. Infrared temperature sensor, temperature controller and water cooling system can also optional.
5. Three types of induction melting furnaces can be selected according to the way of pouring out, they are tilting furnace, push-up furnace and stationary furnace.
6. According to the method of tilting, tilting furnace is divided into three kinds: Manual tilting furnace, Electrical tilting furnace and Hydraulic tilting furnace.

Main Power Cabinet	Furnace Shell	Reducer	Water Cooled Cable	Crucible Mould	Induction Coil

5. Characteristics of melting by medium frequency machine:
1. better heating penetration and even temperature inside the melting metal.
2. medium frequency filed force can stir the melting pool to achieve better melting quality.
3. Melting the maximum quantity by the recommended machine according to above data, the first melting when the furnace is cold, and it will take 20 minutes for the preheating, when the furnace is already hot, the melting time is about 20-30 minutes per furnace.
