Electric Heating Induction Brazing Machine 25KHZ 380V

Electric Heating Induction Brazing Machine 25KHZ 380V
Electric Heating Induction Brazing Machine 25KHZ 380V Electric Heating Induction Brazing Machine 25KHZ 380V

Large Image :  Electric Heating Induction Brazing Machine 25KHZ 380V

Product Details:
Place of Origin: China
Brand Name: Lanshuo
Certification: CE ISO
Model Number: LSW-30
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: 1.Standard wooden case, plywood case, and custormized case; 2. Inner packing: packing plastic film and foam in case of friction dampness and shake; 3.Accessories: induction coil
Delivery Time: 5-7 working days after receiving advanced payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 2000 set per year
Detailed Product Description
Type: Induction Brazing Machine Voltage: 380V
Current: 45A Rated Capacity: 30kw
Rated Duty Cycle: 100% Dimension: 690*290*600mm
Weight: 48kg Usage: Brazing, Welding,melting
Power: 30kw Color: Optional
High Light:

Electric Heating Induction Brazing Machine

,

380V Induction Brazing Machine

,

25KHZ Electric Brazing Machine

30kw High Frequency Electric Induction Heating Brazing Machine​

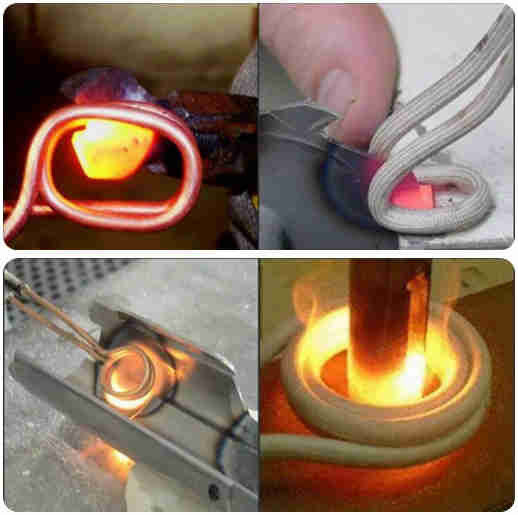

1. Application of induction brazing machine:

1.welding diamond saw blade, carbide saw blade welding and diamond cutting tools, grinding tools, drilling welding.
2. carbide cutting tools for machining welding. Such as turning, milling cutter welding.
3. mining tools, welding, such as "one" bits, pillar gear drill bits, dovetail coal drill bits, drill rods riveting, all kinds of shearer, a variety of shearer, boring machine pick a variety of welding.
4.The welding of various wood working tools, such as various woodworking planer, milling, and welding a variety of woodworking drill.

Electric Heating Induction Brazing Machine 25KHZ 380V 0



2. Induction Brazing Machine working principle :
Based on the principle of electromagnetic induction,our machine could make induced current generate inside the metal material,which is in the alternating magnetic field.Then this current could heat the material up to the melting state.

Our induction brazing machine model is suitable to used for the brazing of circular saw and other tools, usually 4 to 9 seconds is needed to braze one diamond blade.
Electric Heating Induction Brazing Machine 25KHZ 380V 1
2. Technical Parameters of LSW-30 Induction Brazing Machine:

Model LSW-30
Working Voltage 380V, 50/60HZ
Max input power 30kw
Oscillation frequency 25-40KHZ
Duty cycle 100%
Cooling water flow 25L/Min,0.15-0.2MPa
Weight 48kg
Dimension (L*W*H ) 690*290*600mm
Material stainless steel
Color support customized
Usage metal heating, brazing,melting etc


3. Main characteristics of LSW-30 Induction Brazing Machine :
(1) using the well-known international company Siemens Mosfet/IGBT power devices and unique inverter technology, 100% duty cycle design, 24-hour operation at maximum power, high reliability assurance.
(2) self-controlled adjustable heating time, heating power, holding time, holding power and cooling time; greatly improve the quality and repeatability of heating heating products, to simplify the operation of technical workers.
(3) light weight, small size, simple installation [a few minutes to complete].
(4) simple, few minutes to learn.
(5) Special Security, the output voltage is below 36V, remove the high voltage electric shock.
(6) the heating efficiency up to 95%, energy consumption is only 20% -30% of the old-fashioned tube, almost no electricity in standby mode, and 24 hours of continuous work.
(7) the sensor can be freely removable quick replacement, ultra-fast heating significantly reduced the oxidation of the workpiece deformation.
(8) substituted oxygen, acetylene, coal and other dangerous items heated latest environmentally friendly products, no open flame to produce more safe and secure.
(9) the device has over-current, over voltage, over temperature, water shortages, lack of equal perfect automatic protection function, and is equipped with self-diagnostic alarm system.
(10) the apparatus includes a constant current and constant power control function, greatly optimize the process of heating the metal to achieve efficient, rapid heating, the superiority of the product can be fully realized.
