50kw IGBT High Frequency Induction Brazing / Heating / Welding / Hardening / Forging Machine
  • 50kw IGBT High Frequency Induction Brazing / Heating / Welding / Hardening / Forging Machine
  • 50kw IGBT High Frequency Induction Brazing / Heating / Welding / Hardening / Forging Machine
  • 50kw IGBT High Frequency Induction Brazing / Heating / Welding / Hardening / Forging Machine
  • 50kw IGBT High Frequency Induction Brazing / Heating / Welding / Hardening / Forging Machine
  • 50kw IGBT High Frequency Induction Brazing / Heating / Welding / Hardening / Forging Machine
  • 50kw IGBT High Frequency Induction Brazing / Heating / Welding / Hardening / Forging Machine
50kw IGBT High Frequency Induction Brazing / Heating / Welding / Hardening / Forging Machine

50kw IGBT High Frequency Induction Brazing / Heating / Welding / Hardening / Forging Machine

Place of Origin CHINA
Brand Name ZHENGZHOU LANSHUO
Certification CE
Model Number LSW-50
Product Details
Power:
High Frequency
Oscillation Frequency:
18-25KHZ
Input Voltage:
Three Phase Electricity 380V/50-60HZ
Rated Power:
50KW
Highlight:

50kw Induction Brazing Machine

,

High Frequency Induction Brazing Machine

,

Induction Brazing Heating Machine

Payment & Shipping Terms
Minimum Order Quantity
1 SET
Price
2500USD
Packaging Details
WOODEN CASE
Delivery Time
3-5 WORKING DAYS
Payment Terms
T/T
Product Description
Parameter
Rated power 50KW
Input voltage Three phase electricity 380V/50-60HZ
DC voltage 500V
DC current 75A
The heating frequency 18-25KHZ
Air switch 3*100A
Ground wire 1mm² copper core wire
Water pressure 0.15-0.2MPa
Weight(after packing) 140KG
Dimension(after packing) 670mm*820mm*1460mm
Cooling water requirement 2.5m³water tank or 4T closed cooling water tower



Electricity Installation
Input power cord 35mm² copper core wire
Input power control switch 3*150A
Equipment ground wire 1mm² copper core wire



Cooling water installation
Control cabinet water interface quantity water inlet:one water outlet:one
Auxiliary engine water interface quantity water inlet:one water outlet:one
Water pipe specification connecting equipment water intake pipe:internal diameter 25mm
Connecting equipment water outtake pipe:internal diameter 25mm



Pictures:

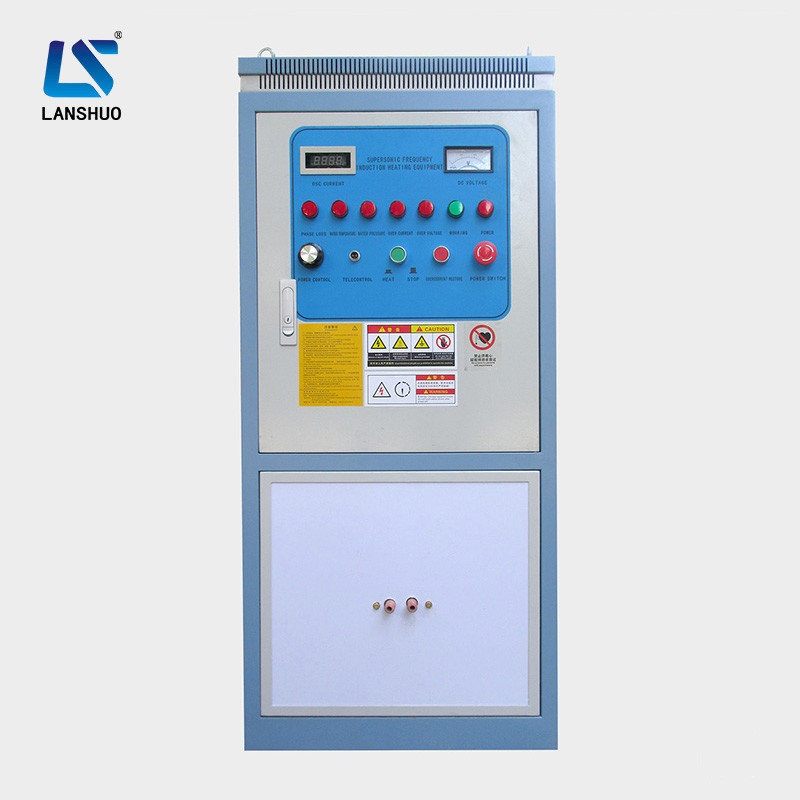

50kw IGBT High Frequency Induction Brazing / Heating / Welding / Hardening / Forging Machine 0



50kw IGBT High Frequency Induction Brazing / Heating / Welding / Hardening / Forging Machine 1



50kw IGBT High Frequency Induction Brazing / Heating / Welding / Hardening / Forging Machine 2



50kw IGBT High Frequency Induction Brazing / Heating / Welding / Hardening / Forging Machine 3
