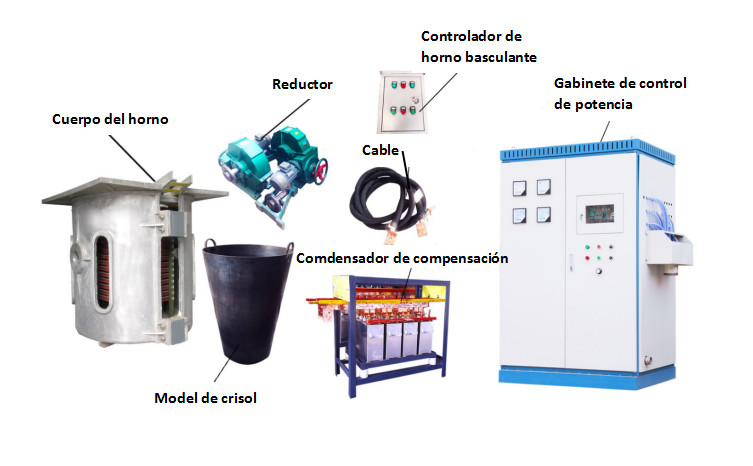

100kg 150kg 200kg 250kg 300kg 350kg Iron Melting Induction Electric Furnace

Medium Frequency electric scrap Iron/steel induction melting furnace machine

1. Performances and Features of induction melting furnace:

1. Adopt a zero-voltage scanning soft-start mode, it can be started or stopped in any case and at any time, so it has no impact on power supply.
2. Fast smelting with low production cost; Low-pollution and environment-friendly;
3. Start melting from cold furnace. Solution can be fully empty. Change molten material easily.
4. Power adjustment is flexible. Be able to adjust continuously and smoothly. Temperature is even and can be easily controlled. Less oxidation burning. Metal components is even.
5. Furnace shell is adopt aluminum alloy or steel structure, covering small area; Convenience to overturn the furnace, according to your need to adpot overturing way like electric, manual, hydraulic.
6. It can automatically adjust to match the load impedance, The equipment will always run in good working condition without adjustment of compensation capacitance, low fault rate; Power supply system has diagnostic error function that make it easy to check and maintenance.
7. It has all kinds of protection control, giving signal under conditions of overcurrent, water shortage, overheating, overvoltage, short circuit and phase missing, as a result, the reliability is greatly enhanced. Suitable for intermittent production.

2. Technical Parameter of Large Induction Melting Furnace:

3. Brief Introduction of Medium Frequency Induction Melting Furnace:
KGPS series Medium Frequency melting induction furnace, aluminum shell mechanical tilt, is for melting cast steel, cast iron, stainless steel, copper, aluminum and other metals or its alloy.It is particularly suited to small and medium-size enterprises, or as Precision Casting Material Test.

This is the device converting three phase power current into single phase medium frequency current and enabling metal to produce eddy current loss through electromagnetic field induction to achieve heating and melting and is applicable to melting, heating or holding of steel, copper, aluminum, zinc, tin, nickel silver and other ferrous or nonferrous metal and alloy material, as well as heating treatment prior to forging, sintering and tube-bending forming in casting and melting industries.

Application of Melting furnace
"IF furnace" means Intermediate frequency furnace, also known as the "medium frequency coreless induction furnace", which converting three phase power current into single phase intermediate frequency current and enabling metal to produce eddy current loss through electromagnetic field induction to achieve heating and melting. The induction heating furnace applys to gold, silver copper, aluminum, steel, iron, zinc, tin, nickel and other metal melting, heating, insulation, and forging, sintering, hot rolling, bending forming pre-heat treatment. But mainly used for melting foundry industry.

4. Large Induction Melting Furnace Application:

(1) iron, pig iron, cast iron;

(2) steel, stainless steel, cast steel, carbon steel and bearing steel;

(3) gold, silver, platinum;

(4) copper, brass, bronze;

(5) aluminum, aluminum alloy;

(6) zinc, lead, tin, magnesium, nickel, titanium.

5. Advantages of Large Induction Melting Furnace :
1. Frequency-sweep zero voltage start, high success rate, no shock;
2. Automatic resistance adjustment, permanent power output, 10-20% energy saved in comparison with domestic traditional machine of the type;
3. Auto phase sequence adaptation, free of synchronization;
4. Good performance in reload staring, auto recovery;
5. Highly integrated in controlling circuit, free of use of high-rate starter and relay loop, fairly low failure rate;
6. Wholly digital design, strong in anti-interference, no temperature shift when in continuous working;
7. Multi-protection functions (for over current, over voltage, insufficient water pressure, power failure, or phase absence), and mishandling will not cause damage to machine.

1. better heating penetration and even temperature inside the melting metal.
2. medium frequency filed force can stir the melting pool to achieve better melting quality.
3. Melting the maximum quantity by the recommended machine according to above data, the first melting when the furnace is cold, and it will take 20 minutes for the preheating, when the furnace is already hot, the melting time is about 20-30 minutes per furnace.
