200kg 200KW Induction Melting Furnace for Steel Copper Aluminum

Place of Origin	CHINA
Brand Name	ZHENGZHOU LANSHUO
Certification	CE
Model Number	KGPS-200

Product Details

Rated Power:

200kw

Rated Capacity:

200kg

Incoming Voltage:

380V 50-60HZ

Medium Frequency:

2000HZ

Medium Voltage:

750V Phase

DC Voltage:

500V Phase

DC Current:

400A Phase

Rated Temperature:

1800℃

Melting Time:

20-45min

Furnace Type:

Aluminum Shell

Highlight:

200kg induction melting furnace for steel

200KW induction furnace for copper

industrial induction melting furnace for aluminum

Payment & Shipping Terms

Minimum Order Quantity

1 SET

Price

6000USD-9000USD

Packaging Details

WOODEN CASE

Delivery Time

5-8WORKING DAYS

Payment Terms

T/T

Supply Ability

1 SET

Product Description

200kg Electric Induction Melting Furnace for Melting Scrap Steel Casting Copper Machine Metal Smelter Iron Aluminum Smelting

Technical Specifications

Model	KGPS-200
Rated power	200kw
Rated capacity	200kg
Incoming voltage	380V 50-60HZ
Medium frequency	2000HZ
Medium voltage	750V Phase
DC voltage	500V Phase
DC current	400A Phase
Rated temperature	1800℃
Melting time	20-45min
Furnace type	Aluminum shell

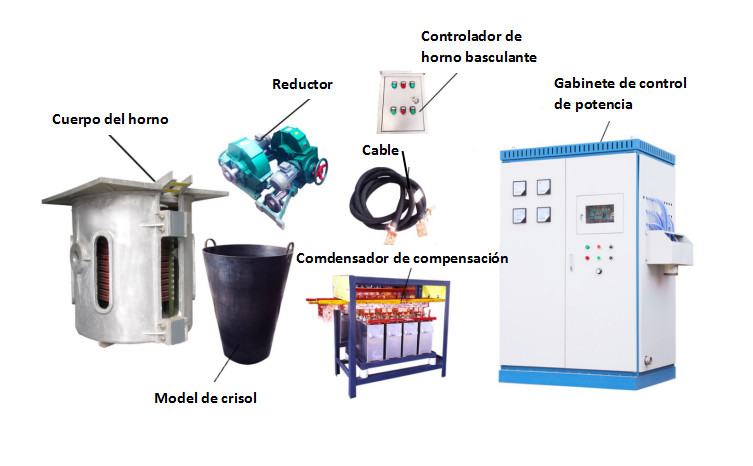

Complete Configuration

200kw main control cabinet (one)
Furnace (two)
Reducer RZS231
Water cooling cable 185mm² (two roots)
Instructions (one)
Capacitor holder (one)
Tilting furnace control box (one)

After-Sales Service

Warranty period: one year (counting from equipment delivery to customer factory). If there is any problem with the equipment during the warranty period, we will quickly provide a solution and mail the spare parts that need to be replaced for free.

Product Images
